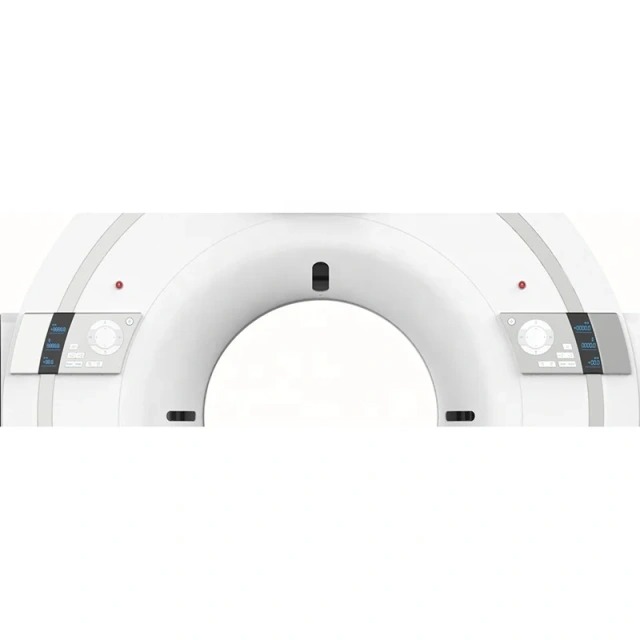

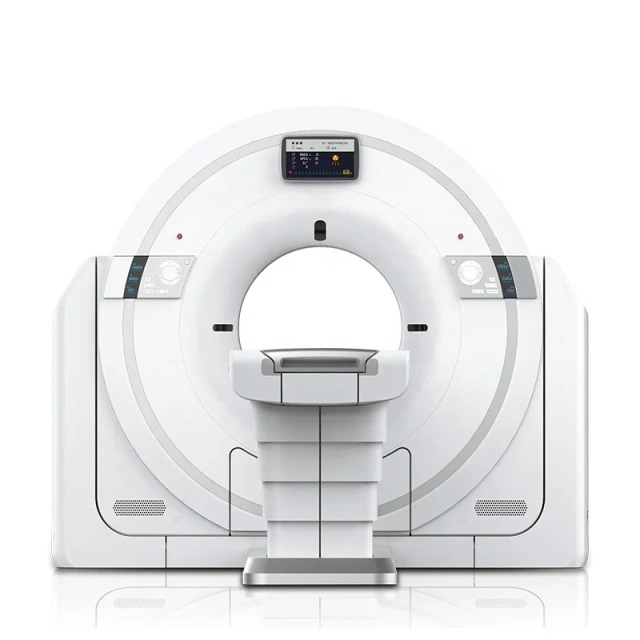

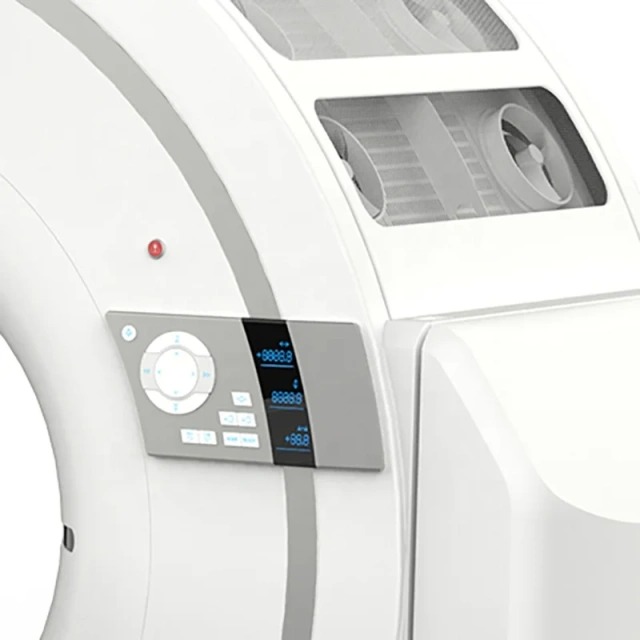

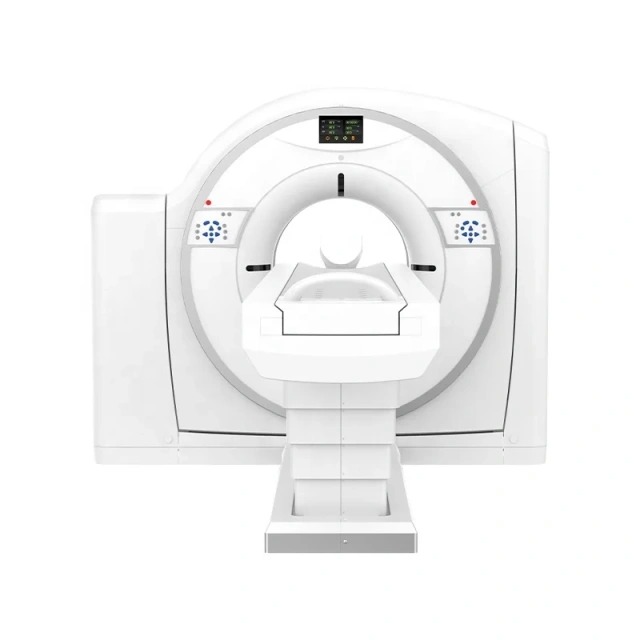

The High Performance 128 Slice CT Scan Machine is an advanced medical imaging system designed to deliver ultra-fast, high-resolution diagnostic images with exceptional accuracy. Engineered for hospitals, diagnostic centres, and specialized imaging facilities, this scanner combines cutting-edge CT technology with intelligent dose management to support faster diagnoses while enhancing patient safety.
Its high-speed acquisition and powerful image reconstruction capabilities make it ideal for complex examinations including cardiac imaging, neurological assessments, oncology, trauma, and full-body scanning. The system is designed to improve workflow efficiency, reduce scan times, and provide reliable diagnostic confidence for healthcare professionals.
Features
- High-performance 128-slice CT imaging technology
- Ultra-fast scan speed for improved patient throughput
- High-resolution diagnostic image quality
- Low-dose radiation technology for enhanced patient safety
- Advanced 3D image reconstruction
- Intelligent image processing system
- Large gantry opening for patient comfort
- Fast and accurate coronary artery imaging
- DICOM compatible for seamless hospital integration

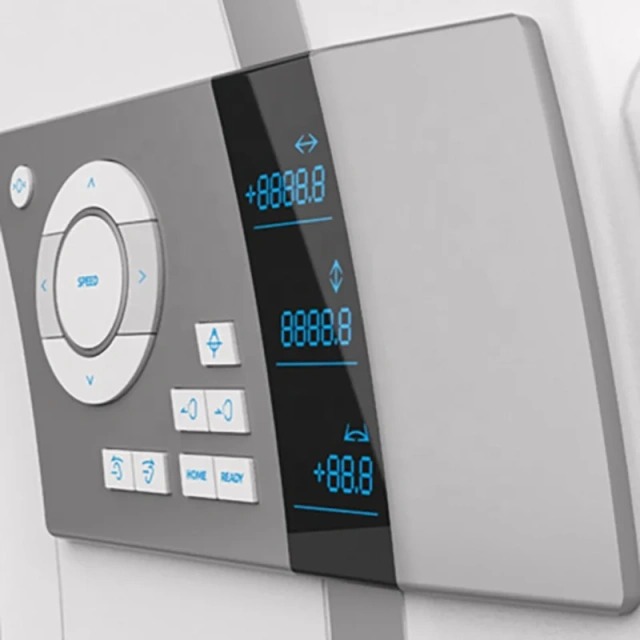

- User-friendly touchscreen operating interface
- Stable and reliable system performance
- Suitable for emergency and routine diagnostic examinations
- Low maintenance and long service life
- Designed for continuous clinical operation
- Supports multi-planar and volumetric imaging workflows.
Key Attributes
| Attribute | Details |
|---|---|
| Product Name | High Performance 128 Slice CT Scan Machine |
| Product Type | Medical X-ray Computed Tomography Scanner |
| Model | FTL-F128 |
| Brand | FTL |
| Imaging Technology | 128 Slice Computed Tomography |
| Power Source | Electric |
| Instrument Classification | Class II |
| Material | Metal & High-Grade Engineering Plastic |
| Quality Certification | CE Certified |
| Warranty | 2 Years |
| After-sales Service | Online Technical Support |
| Application | Hospitals, Diagnostic Centres, Imaging Centres, Emergency Departments, Cardiology & Neurology Units |
Packaging & Delivery
- Secure export-grade wooden crate packaging
- Shock-resistant protective materials
- Moisture-proof internal wrapping
- Professional international shipping support
- Installation guidance available
- Technical documentation included
- Fast worldwide delivery options
- On-site commissioning support available upon request.
Technical Specifications
| Specification | Details |
|---|---|
| CT Type | 128 Slice Computed Tomography Scanner |
| Gantry Aperture | 715 mm |
| Gantry Tilt | ±30° |
| Minimum Scan Time | 0.72 sec / 360° |
| Detector Type | GOS Ceramic Solid Detector |
| Detector Rows | 24 |
| Detector Thickness | 0.55 mm |
| Sampling Rate | 1800 views/cycle |
| Maximum Field of View | 500 mm |
| Tube Voltage | 60–140 kV |
| Maximum Tube Current | 350 mA |
| Maximum Generator Power | 42 kW |
| Heat Storage Capacity | 3.5 MHU |
| Maximum Patient Table Load | 205 kg |
| Table Positioning Accuracy | ±0.25 mm |
| Maximum Scan Range | 1650 mm |
| Power Supply | 380 VAC ±10%, 50 Hz |
| Cooling System | Air Cooling |
| Data Transmission | Digital |
| Positioning System | Multi-Laser Positioning |
Clinical Applications
- Cardiology & Coronary Artery Imaging
- Neurology & Brain Studies
- Oncology Diagnosis
- Chest & Lung Imaging
- Abdomen & Pelvis Examination
- Orthopedic Assessment
- Trauma & Emergency Imaging
- Whole Body CT Scanning
- Vascular Imaging
- Pre-operative & Post-operative Evaluation.
