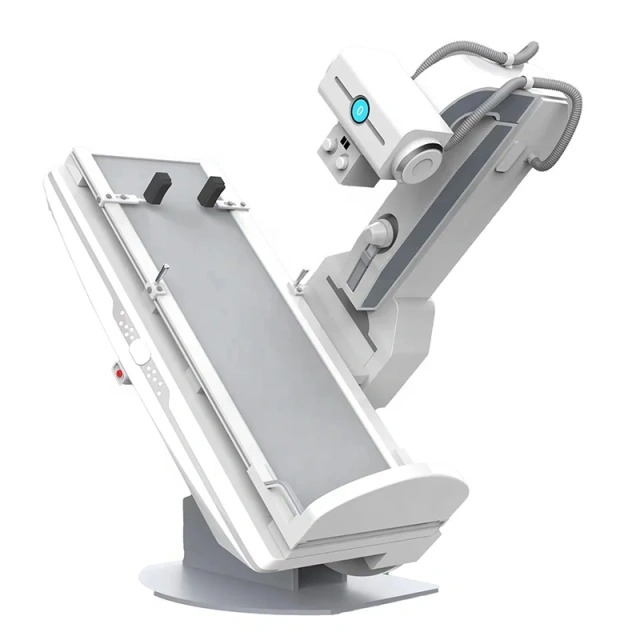

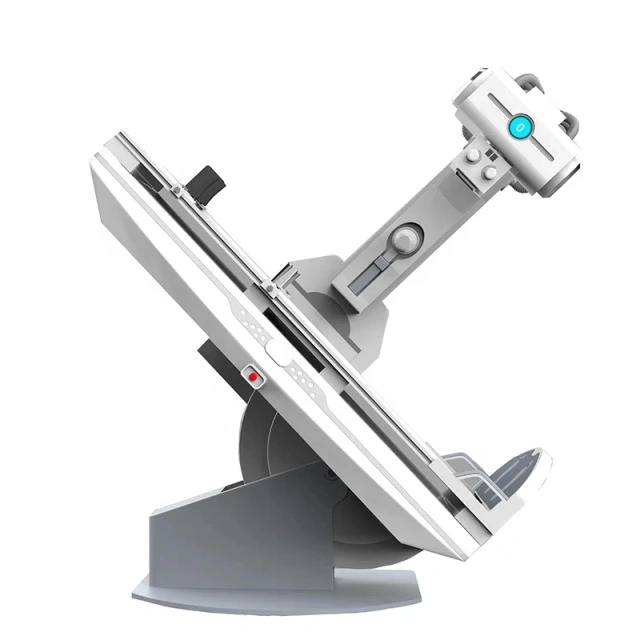

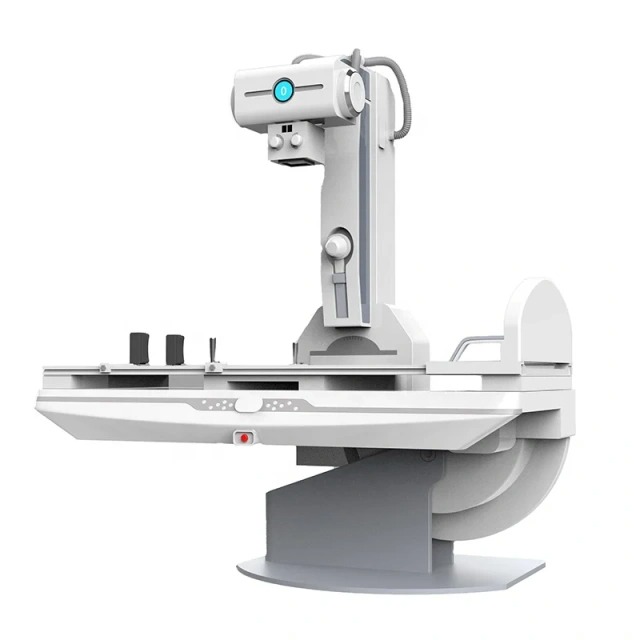

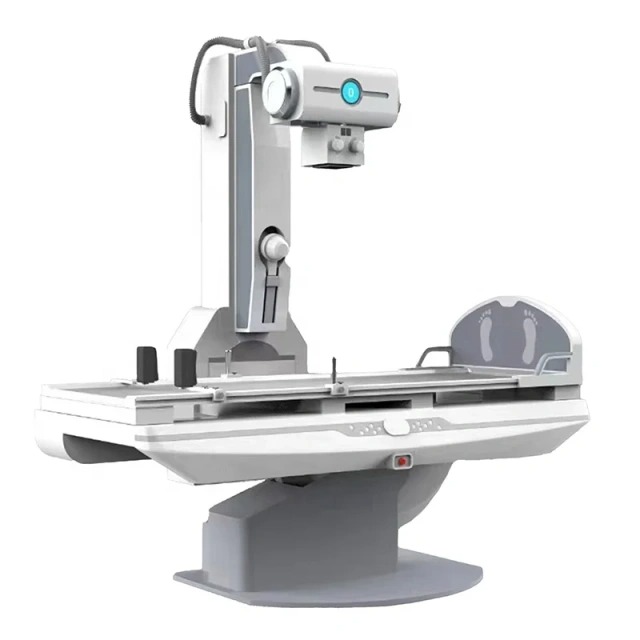

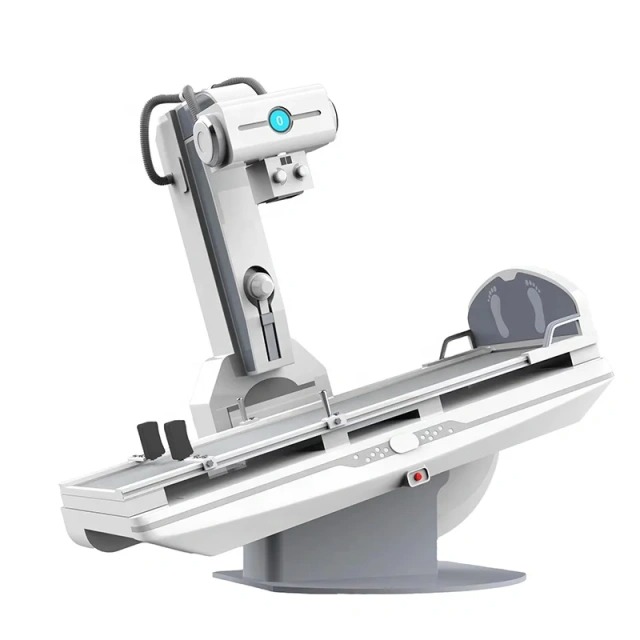

The Medical Digital X-Ray Machine – Dynamic X-Ray Fluoroscopy System is an advanced diagnostic imaging solution that combines Digital Radiography (DR) and real-time Fluoroscopy in a single platform. It is designed to provide high-resolution static images and continuous dynamic imaging, making it suitable for hospitals, diagnostic centres, emergency departments, orthopaedics, gastroenterology, and interventional procedures. The system is equipped with a large flat-panel detector, intelligent imaging software, and a high-frequency generator for excellent image quality with improved workflow efficiency.
Features
- High-resolution Digital Radiography (DR) and Fluoroscopy in one system
- Large 17″ × 17″ Dynamic Flat Panel Detector
- Real-time dynamic imaging with excellent image clarity
- High-frequency X-ray generator for stable performance
- Low-dose imaging technology for enhanced patient safety
- Automatic Exposure Control (AEC)
- Advanced image processing software
- Motorized examination table with flexible positioning
- Fast image acquisition and processing
- DICOM 3.0 compatibility for PACS and HIS integration
- Touchscreen operator console
- High-resolution diagnostic workstation
- Multi-language software interface
- Easy operation and efficient workflow
- Reliable performance with low maintenance requirements
- Suitable for continuous fluoroscopy and digital radiography examinations.
Key Attributes
| Attribute | Details |
|---|---|
| Product Name | Medical Digital X-Ray Machine Dynamic X-Ray Fluoroscopy System |
| Imaging Technology | Digital Radiography (DR) + Dynamic Fluoroscopy |
| Detector Type | Dynamic Flat Panel Detector |
| Detector Size | 17″ × 17″ |
| Image Resolution | High Definition |
| Generator Type | High Frequency |
| Power Output | 65 kW (Model dependent) |
| Tube Voltage | 40–150 kV |
| Maximum Tube Current | Up to 800 mA |
| Image Processing | Digital Workstation |
| DICOM Support | Yes |
| Clinical Applications | General Radiology, Orthopaedics, Gastroenterology, Emergency, Surgery |
| Installation | Hospital & Diagnostic Centre |
| Warranty | Manufacturer Warranty |
| Certification | CE / ISO (Model dependent) |
Packaging & Delivery
- Export-standard wooden crate packaging
- Shockproof and moisture-resistant protection
- Secure packaging for international shipping
- Complete accessories included
- User manual and installation guide
- Professional installation and commissioning support available
- Delivery by sea, air, or land freight
- Worldwide shipping available
- OEM/ODM service available
- Technical documentation included.
Technical Specifications
| Specification | Details |
|---|---|
| Generator Output | 65 kW |
| Power Supply | 380V ±10%, 50Hz |
| Tube Voltage | 40–150 kV |
| Tube Current | 10–800 mA |
| Exposure Time | 1–6300 ms |
| Detector Size | 17 × 17 inch |
| Detector Matrix | 3072 × 3072 Pixels |
| Pixel Pitch | 139 μm |
| A/D Conversion | 16-bit |
| Spatial Resolution | 3.6 lp/mm |
| Fluoroscopy Mode | Continuous & Pulsed |
| Workstation | Advanced Digital Imaging Software |
| Network | DICOM 3.0 Compatible |
| Clinical Applications | Chest, Abdomen, Gastrointestinal Studies, Orthopaedics, Trauma, Urology, Emergency Imaging |
