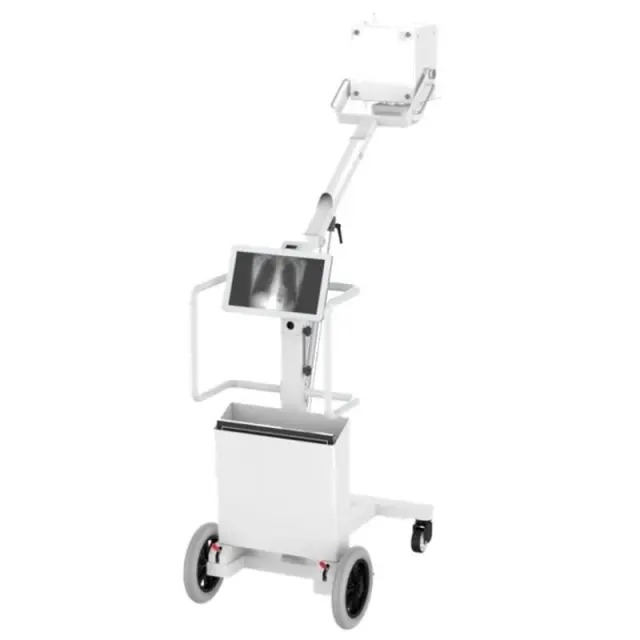

The FTLF080-B 8KW/160mA Digital Mobile X-Ray Machine Fluoroscopy DR is an advanced mobile digital radiography system designed for hospitals, clinics, emergency rooms, ICU, and bedside imaging applications. It combines powerful X-ray generation technology with digital imaging capabilities to provide fast, accurate, and high-quality diagnostic images.
With its compact mobile design, high-frequency generator, and flexible operation, the system enables healthcare professionals to perform radiographic examinations efficiently in different clinical environments, including patient rooms, operating theatres, and intensive care units.
Key Features
🩻 Advanced Digital Radiography System
Provides high-resolution digital X-ray imaging with improved workflow efficiency and fast image acquisition for accurate diagnosis.
🚑 Mobile & Flexible Design
Compact trolley-based structure allows easy movement throughout hospitals, enabling bedside X-ray examinations without moving patients.
⚡ High-Frequency 8KW Generator
Equipped with an efficient high-frequency X-ray generator delivering stable output performance for reliable imaging.
🎯 Wide Imaging Applications
Suitable for:
- General Radiography
- ICU Bedside Imaging
- Emergency Diagnosis
- Orthopedic Examinations
- Chest & Bone Imaging
- Clinical Diagnostic Applications
🔬 High Precision Imaging
Advanced digital imaging technology helps healthcare professionals obtain clear and detailed diagnostic images.
🏥 Hospital-Friendly Operation
Designed for easy operation by radiologists and technicians with a user-friendly control system.
🔋 Reliable Power Performance
Supports continuous clinical operation with stable electrical performance and efficient energy management.
🛡️ Patient Safety & Protection
Designed with controlled radiation output technology to support safer diagnostic procedures.
Key Attributes
| Attribute | Details |
|---|---|
| Product Name | Digital Mobile X-Ray Machine |
| Model | FTLF080-B |
| Application | Human Medical Diagnostic Imaging |
| System Type | Mobile Digital Radiography (DR) |
| Generator Power | 8KW |
| Maximum Tube Current | 160mA |
| Imaging Type | Digital X-Ray / Fluoroscopy DR |
| Usage Areas | Hospitals, Clinics, ICU, Emergency Departments |
| Mobility | Mobile trolley design |
| Operation | Digital control system |
| Suitable For | General radiography & bedside examinations |
Technical Specifications
X-Ray Generator
| Parameter | Specification |
|---|---|
| Generator Type | High Frequency Generator |
| Output Power | 8KW |
| Working Frequency | 100kHz |
| Tube Voltage Range | 40kV – 125kV |
| Tube Current Range | 5mA – 160mA |
| mAs Range | 0.1 – 200mAs |
| Exposure Time | 0.0032s – 10s |
X-Ray Tube
| Parameter | Specification |
|---|---|
| Tube Focus Type | Single Focus |
| Focus Size | 2.0mm |
| Tube Design | High-performance X-ray tube |
| Cooling System | Efficient heat management |
