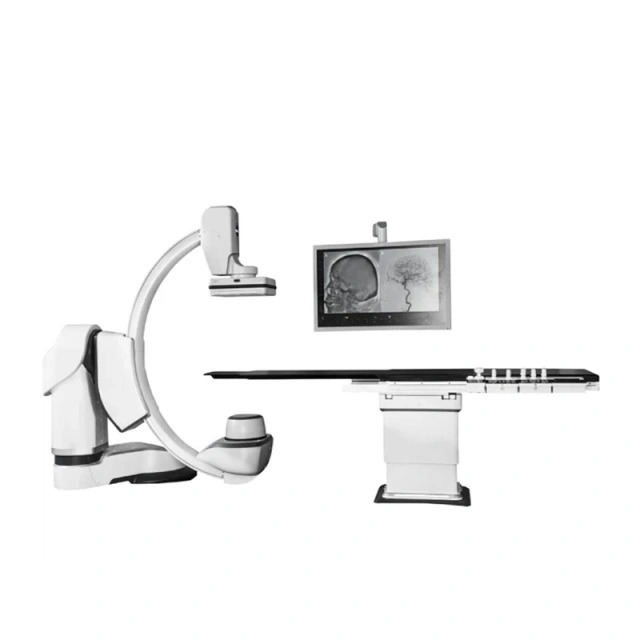

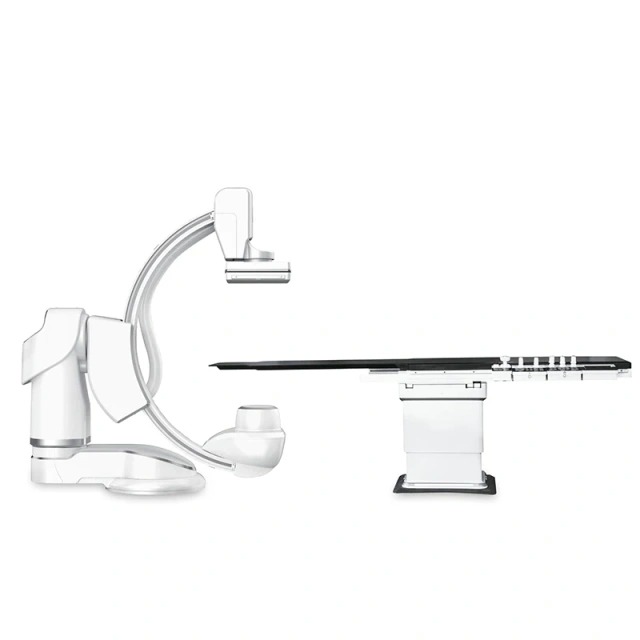

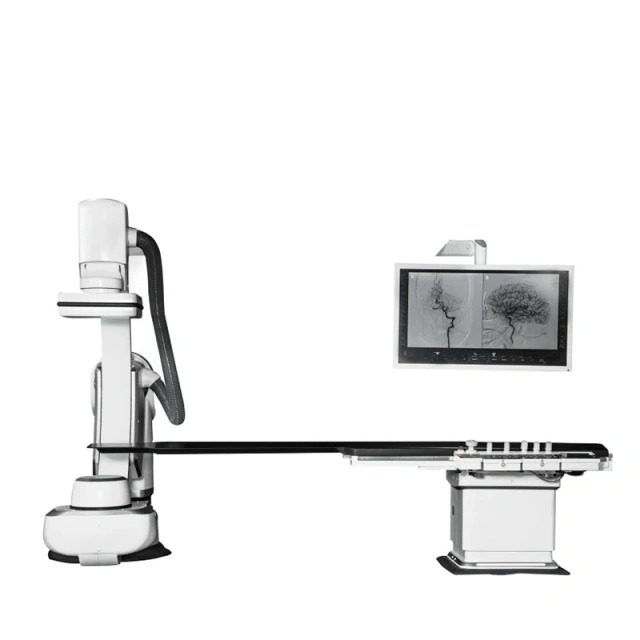

The Digital Subtraction Angiography (DSA) System is an advanced interventional imaging solution designed to deliver high-resolution vascular imaging with exceptional precision. Built with intelligent digital imaging technology, this system enables clinicians to perform accurate diagnostic and minimally invasive interventional procedures in cardiology, neurology, vascular surgery, and radiology.
Featuring a high-performance flat panel detector, intelligent image processing, and a flexible multi-axis C-arm, the system provides outstanding image quality while supporting low-dose imaging protocols. It is ideal for modern catheterization laboratories, tertiary hospitals, and advanced diagnostic centres.
Features
- High-resolution Digital Flat Panel Detector (FPD)
- Intelligent Digital Subtraction Angiography (DSA) imaging
- Real-time vascular visualization
- High-frequency X-ray generator

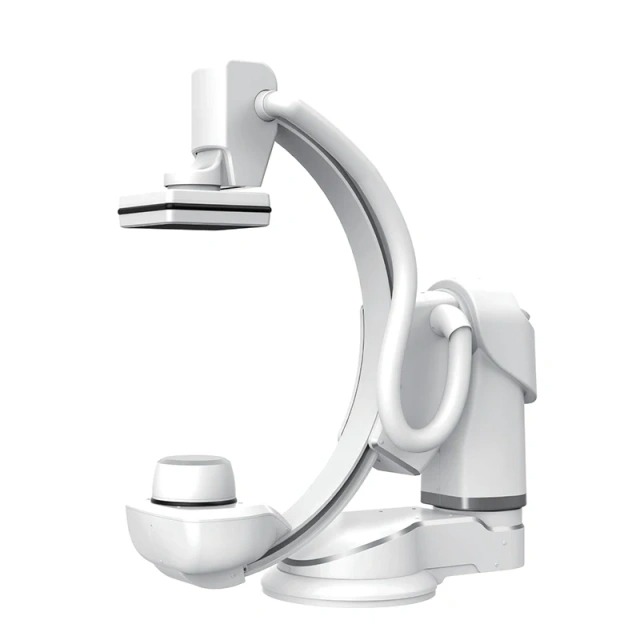

- 7-axis motorized C-arm movement
- Low radiation dose imaging technology
- Automatic exposure control
- Dynamic image optimization and noise reduction
- Adaptive edge enhancement
- Rotational angiography support
- Road Mapping & Fluoroscopy modes
- DICOM 3.0 compatibility
- Large-capacity digital image storage

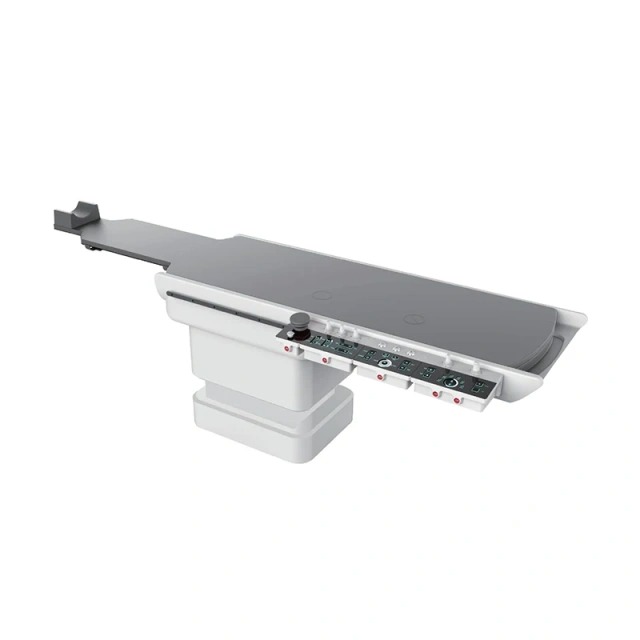

- Ergonomic catheterization table
- Fast workflow for interventional procedures
- Reliable performance for continuous clinical use
- User-friendly workstation and intuitive software interface
- Suitable for cardiac, neurovascular, and peripheral vascular interventions.
Key Attributes
| Attribute | Details |
|---|---|
| Product Name | Digital Subtraction Angiography (DSA) System |
| System Type | Intelligent Interventional X-ray Imaging System |
| Imaging Technology | Digital Subtraction Angiography (DSA) |
| Detector Type | Flat Panel Digital Detector |
| Clinical Applications | Cardiology, Neurology, Vascular Surgery, Interventional Radiology |
| C-Arm Design | Motorized Multi-Axis C-Arm |
| Image Processing | Real-time Digital Processing |
| Radiation Control | Low Dose Imaging |
| Storage | Digital Image Archive |
| Connectivity | DICOM 3.0 Compatible |
| Installation | Hospital Cath Lab / Angiography Suite |
| Operation | Intelligent Workstation with Touch Interface |
Packaging & Delivery
- Secure export-grade wooden crate packaging
- Shockproof and moisture-resistant protection
- Complete system supplied with standard accessories
- Professional installation and commissioning available
- User training provided by qualified engineers
- Technical documentation included
- Worldwide shipping available
- Standard delivery: 30–60 working days (depending on destination and configuration)
- OEM & customised configurations available
Technical Specifications
| Specification | Details |
|---|---|
| Generator Power | 100 kW High-Frequency Generator |
| Power Supply | Three-phase AC 380V ±10%, 50/60 Hz |
| Tube Voltage | Up to 125 kV |
| Maximum Tube Current | 1000 mA |
| Detector Size | 30 × 30 cm Flat Panel Detector |
| Detector Material | Amorphous Silicon (A-Si) with Cesium Iodide (CsI) |
| Image Matrix | 1536 × 1536 |
| Pixel Pitch | 194 μm |
| Acquisition Modes | CINE, DSA, DA, Fluoroscopy, Rotational DSA |
| Maximum Acquisition Speed | Up to 30 FPS |
| C-Arm Movement | 7-axis Motorized |
| Rotation Speed | Up to 70°/second |
| Patient Table Load | Up to 450 kg |
| Image Storage | High-capacity Digital Storage |
| Network Support | DICOM 3.0 |
| Operating Temperature | 10°C–35°C |
| Relative Humidity | 30%–75% |
