Product Description

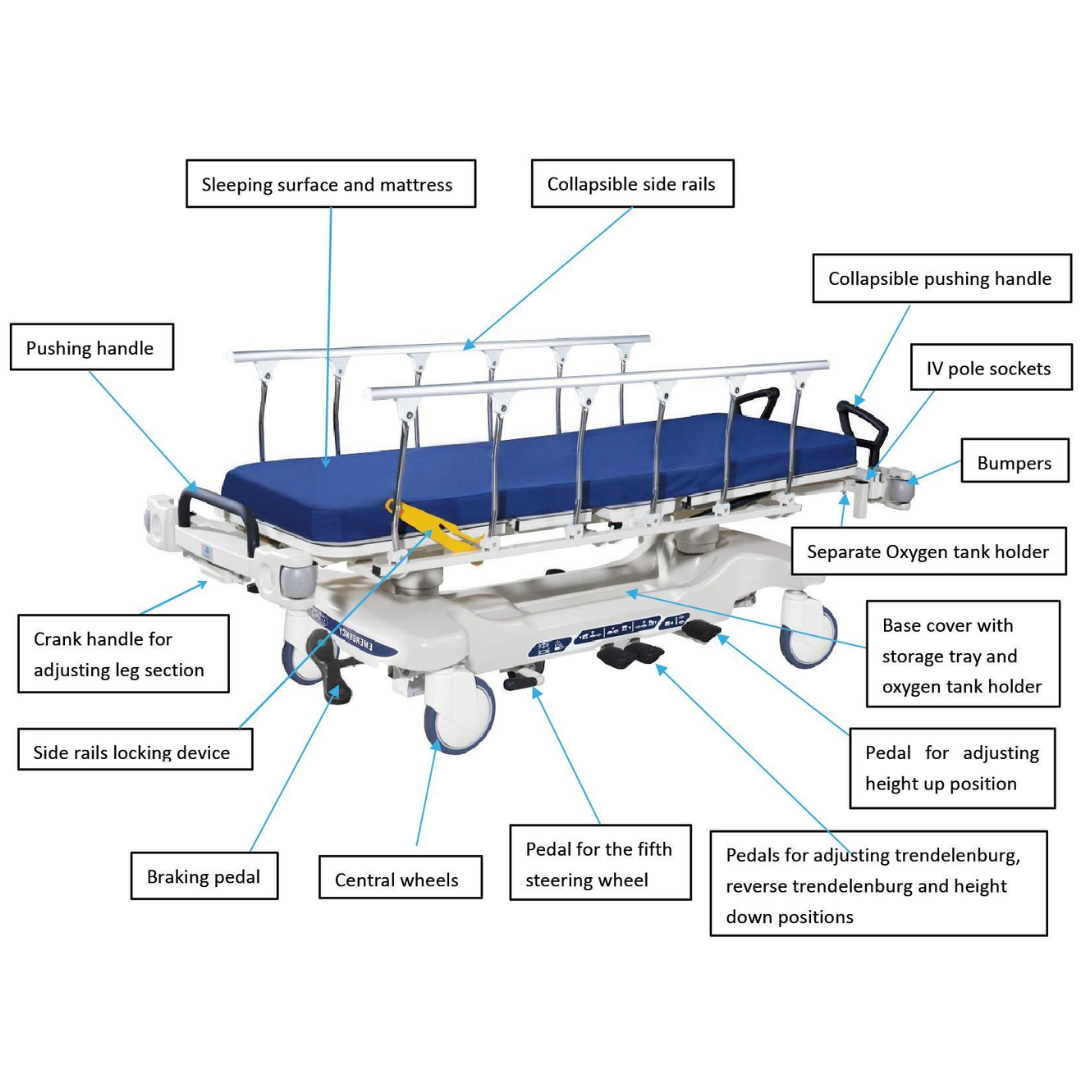

The HL-A413B Patient Transport Stretcher is designed to support safe patient transportation, transfer, examination, and care in demanding healthcare environments. Its dual-pedestal base system and durable construction provide a stable platform with a maximum load capacity of 250kg.
The stretcher offers adjustable height from 580–900mm and a pneumatic Fowler adjustment from 0–90°. Trendelenburg and reverse Trendelenburg positioning can be operated hands-free using foot controls on both sides. Centralized foot controls at the ends provide convenient braking and steering.
For mobility and patient safety, the stretcher is equipped with 200mm casters, a central brake system, a directional guiding mechanism, a fifth-wheel system, full-length collapsible side rails, and rubber bumpers on all four corners. A built-in storage tray with an oxygen tank holder provides additional practical storage beneath the stretcher.
Key Features
- Heavy-duty patient transport stretcher
- Adjustable height from 580–900mm
- Patient resting surface: 1980 × 710mm
- Full-length collapsible side rails
- Stainless steel-covered side rails
- Pneumatic Fowler adjustment: 0–90°
- Trendelenburg and reverse Trendelenburg: 16°
- Hands-free Trendelenburg operation
- Foot controls on both sides
- Centralized braking and steering controls
- Four 200mm casters with central braking
- Directional guiding mechanism
- Fifth-wheel system for improved maneuverability
- Dual-pedestal base system
- Rubber bumpers on all four corners
- Under-stretcher storage tray with oxygen tank holder
- Four IV pole receptacles
- Patient transfer system designed to reduce operator effort
- 250kg load capacity
- Durable and waterproof 11cm mattress
Specifications
| Specification | Details |
|---|---|
| Model | HL-A413B |
| Product Type | Patient Transport Stretcher |
| Height Adjustment | 580–900mm |
| Patient Resting Surface | L198 × W71cm |
| Side Rail Height | 39cm |
| Side Rail Length | 148cm |
| Side Rails | Full-length, collapsible, stainless steel-covered |
| Fowler Adjustment | 0–90° pneumatic |
| Trendelenburg / Reverse Trendelenburg | 16° |
| Casters | 4 × Ø200mm |
| Braking System | Central brake system |
| Directional Mechanism | Directional guiding wheel |
| Fifth Wheel | Yes |
| Mattress Thickness | 11cm |
| Load Capacity | 250kg |
| Base System | Dual-pedestal |
| IV Pole Receptacles | 4 |
| Corner Protection | Rubber bumpers |
Standard & Optional Features
- Integrated IV pole with 2 or 4 telescopic hooks, optional
- IV pole supports up to 13kg
- IV pole can be stored within the folding stretcher frame
- Radiographic plate tray, optional
- Full-length or chest-section X-ray plate positioning
- Knee-gatch joint system up to 40°, optional
- Storage tray with oxygen tank holder
- Patient transfer system for reduced physical effort
Standard Accessories
- Integrated or adjustable IV pole system
- Oxygen tank storage provision
- 4 IV pole receptacles
- Waterproof mattress
- Under-stretcher storage tray
Certifications
- CE
- FDA
- ISO 13485
- ISO 9001
- FSC
Ideal For
- Hospitals
- Emergency departments
- Patient transport units
- Operating departments
- Diagnostic and imaging areas
- Examination rooms
- Recovery departments
- Clinics and healthcare facilities
