Product Description

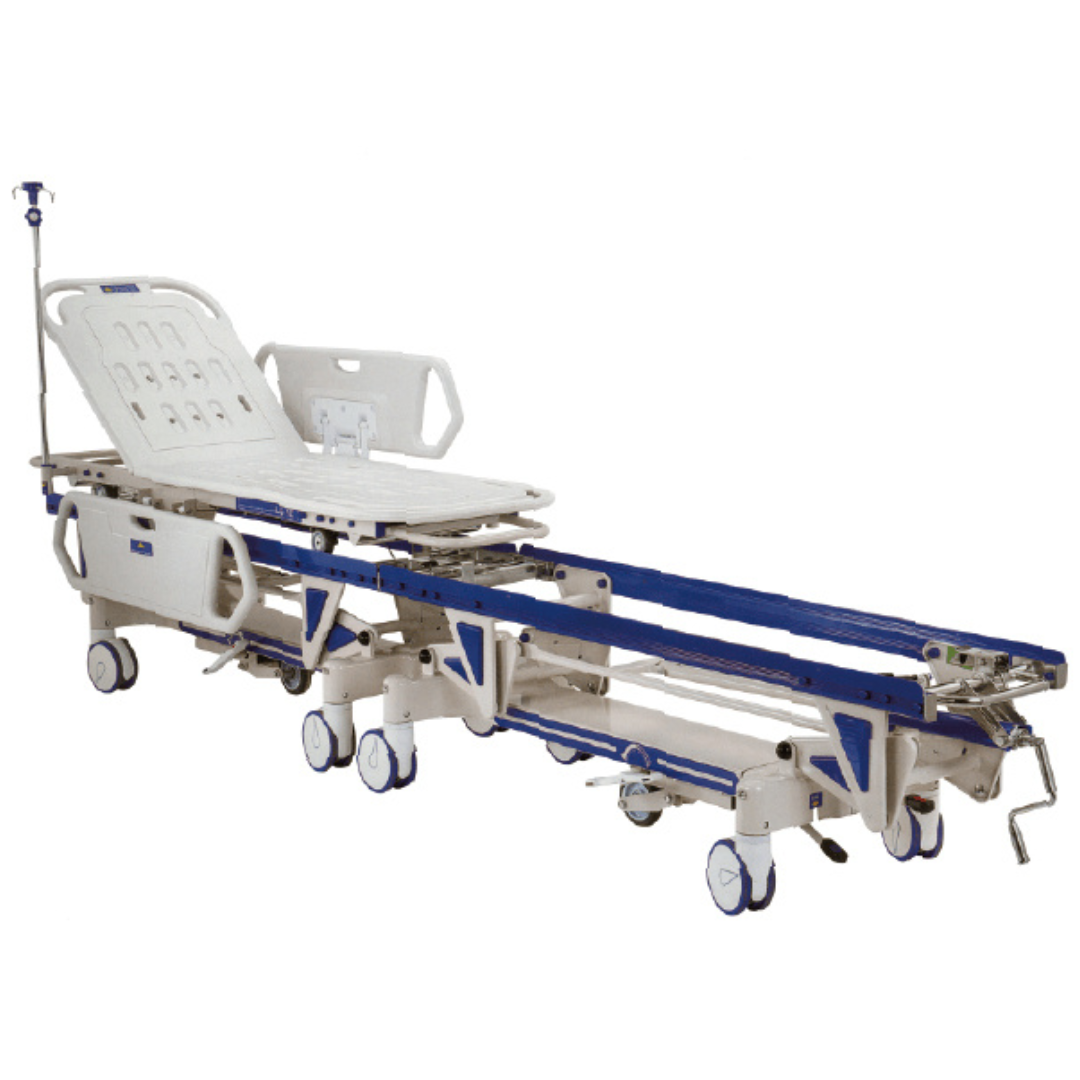

The HL-A414A Patient OR Transfer Stretcher is a specialized transfer solution designed to simplify patient movement between different stretchers and clinical areas. Its two-base configuration and single sliding top allow the stretcher to connect and transfer patients efficiently while maintaining stable positioning.
The main structure is made from high-quality aluminum, pressed and shaped in one process for a strong and practical construction. A high-strength aluminum alloy track supports smooth and reliable movement of the sliding top, while the two individual stretchers can be raised or lowered to align at the same level.
For secure connection and transfer, the sliding bed can automatically lock when positioned over either stretcher. An additional safety device provides further security during the transfer process. Each individual stretcher is equipped with a central-control braking system, helping maintain stability during movement and connection.
The bed board and side rails are made from imported ABS material, providing a practical surface for healthcare use. The two-section bed surface includes a gas-spring-adjustable upper section with a backrest adjustment range of 0°–75°.
The overall stretcher height can be adjusted from 570mm to 860mm using the manual crank system, while the complete transfer structure provides a height range of 640mm–970mm.
Key Features
- Patient OR transfer stretcher with two bases and a single sliding top
- High-quality aluminum main structure
- Main structure pressed and shaped in one process
- High-strength aluminum alloy transfer track
- Smooth and reliable sliding movement
- Two individual stretchers can be raised or lowered for height alignment
- Automatic locking when the sliding bed connects to either stretcher
- Additional safety/insurance device for secure transfer
- Central-control braking system on each individual stretcher
- Imported ABS bed board and side rails
- Two-section bed surface
- Gas-spring-assisted upper bed section
- Backrest adjustment from 0°–75°
- Manual height adjustment through crank system
- Adjustable stretcher height from 570–860mm
- Overall structure height of 640–970mm
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A414A |
| Product Type | Patient OR Transfer Stretcher |
| Configuration | Two Bases with Single Sliding Top |
| Overall Size | L3650 × W640 × H640–970mm |
| Main Structure | High-quality aluminum |
| Transfer Track | High-strength aluminum alloy |
| Bed Board Material | Imported ABS |
| Side Rail Material | Imported ABS |
| Bed Surface | Two-section |
| Upper Section Adjustment | Gas spring |
| Backrest Adjustment | 0°–75° |
| Height Adjustment | 570–860mm |
| Height Adjustment System | Manual crank |
| Braking System | Central-control braking system |
| Sliding Locking | Automatic locking |
| Safety System | Additional safety/insurance device |
Transfer & Safety System
The HL-A414A is designed around a sliding transfer mechanism that allows the top section to move along the high-strength aluminum alloy track. The two individual stretcher bases can be adjusted in height to align with the transfer surface, while the automatic locking mechanism helps secure the sliding bed during connection.
Each stretcher is equipped with a central-control braking system to provide stable positioning during transfer and connection procedures.
Ideal For
The HL-A414A Patient OR Transfer Stretcher is suitable for:
- Operating rooms
- Surgical departments
- Patient transfer areas
- Hospital treatment departments
- Inter-department patient transportation
- Facilities requiring efficient stretcher-to-stretcher patient transfer
