Product Description
The HL-A411A Multifunction Transfer Trolley is designed to support patient transfer, transportation, examination, and care across hospital departments. Its robust construction combines an aluminum and epoxy-coated steel main frame with an HPL lying platform and PP side rails for a practical and durable patient transfer solution.

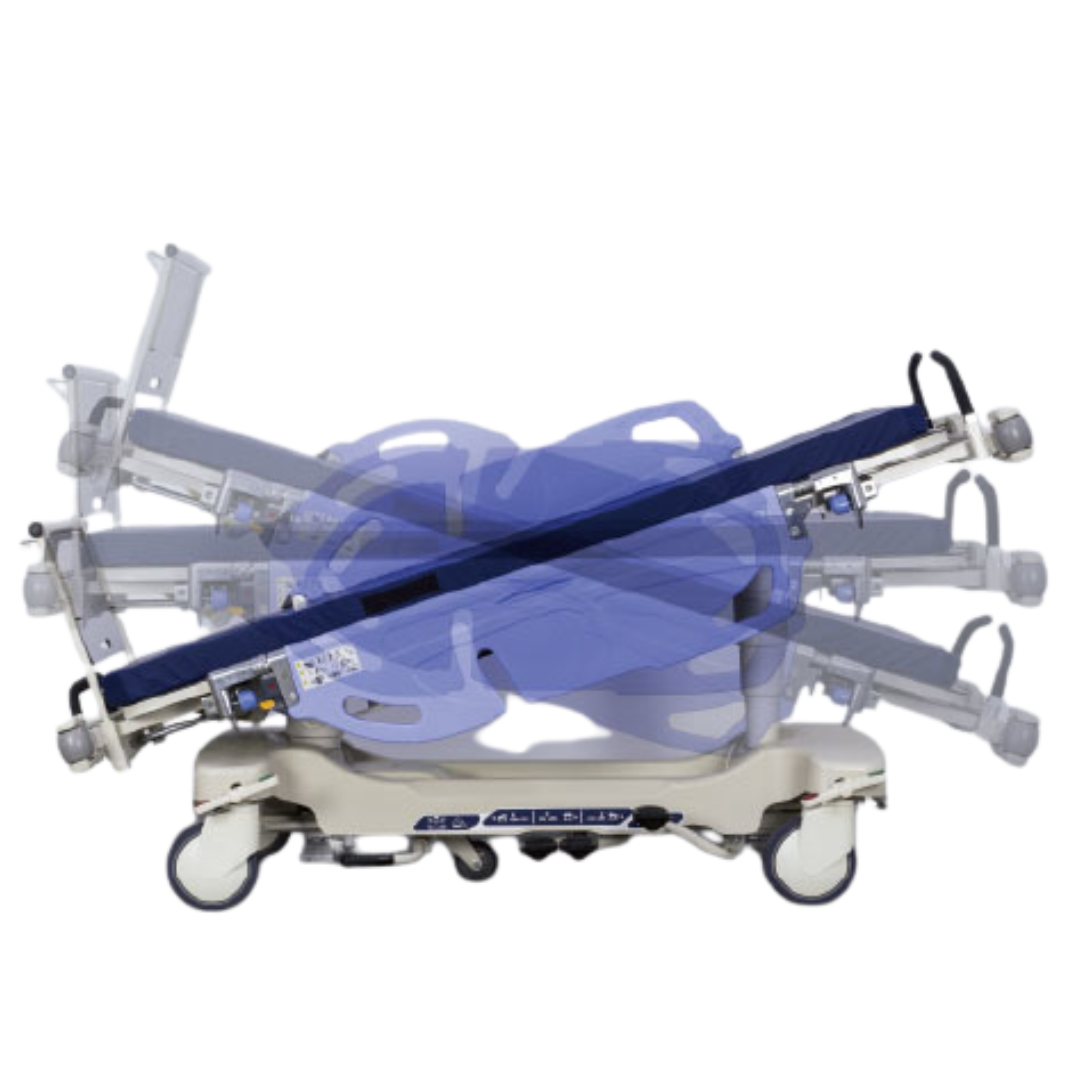

The trolley provides a height adjustment range of 510–850mm and allows Trendelenburg and reverse-Trendelenburg positioning from -18° to +18°, operated through hydraulic foot pedals. The backrest can be adjusted from 0–70° using a gas spring, while the footrest can be raised up to 40° with a crank handle.
For safe patient handling and smooth movement, the trolley is equipped with horizontally fixed side rails featuring a concave center design to help prevent catheters from falling off. The side rails also include angle indicators for monitoring backrest adjustment. Four 200mm casters with central braking pedals, along with a fifth directional wheel, provide improved mobility and maneuverability.
Key Features
- Multifunctional patient transfer and transport trolley
- HPL lying platform for durability and easy maintenance
- Aluminum and epoxy-coated steel main frame
- PP side rails with horizontal locking
- Concave side rail design helps prevent catheter displacement
- Side rails equipped with backrest angle indicators
- Hydraulic height adjustment by foot pedal
- Height adjustment range: 510–850mm
- Trendelenburg and reverse-Trendelenburg adjustment
- Trendelenburg range: -18° to +18°
- Backrest adjustment: 0–70°
- Gas spring-assisted backrest adjustment
- Footrest upward adjustment: 0–40°
- Crank-operated footrest adjustment
- Four 200mm casters with central braking pedals
- Fifth directional wheel for improved maneuverability
Specifications
| Specification | Details |
|---|---|
| Model | HL-A411A |
| Category | Patient Transfer Trolleys |
| Overall Size | L1930 × W663 × H510–850mm |
| Lying Platform | L1880 × W620mm |
| Lying Platform Material | HPL |
| Main Frame | Aluminum and epoxy-coated steel |
| Side Rails | PP |
| Height Adjustment | 510–850mm |
| Height Adjustment System | Hydraulic foot pedal |
| Backrest Adjustment | 0–70° |
| Backrest Adjustment System | Gas spring |
| Footrest Adjustment | 0–40° upward |
| Footrest Adjustment System | Crank handle |
| Trendelenburg | -18° |
| Reverse-Trendelenburg | +18° |
| Casters | Ø200mm |
| Braking System | Central braking pedals |
| Directional Wheel | Fifth wheel |
Ideal For
- Hospitals
- Emergency departments
- Operating departments
- Diagnostic and examination areas
- Patient transfer units
- Recovery areas
- Clinics and healthcare facilities
