Product Description

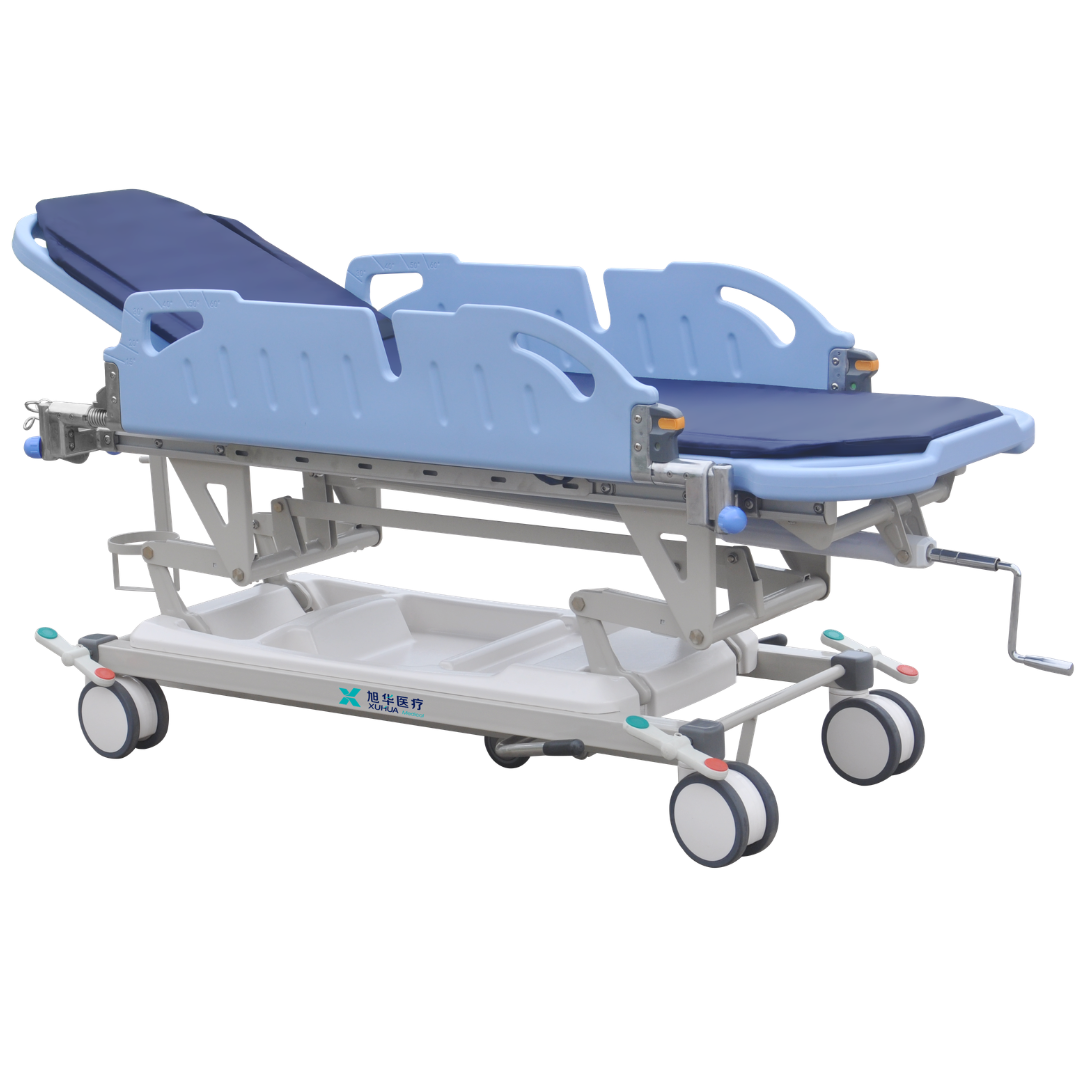

The HL-A411B Manual Patient Transfer Trolley is designed to support patient transfer, transportation, examination, and routine care in healthcare environments. Its epoxy-coated steel construction provides a strong and durable frame with resistance to rust and corrosion.
The trolley features a PP lying platform and side rails, providing smooth surfaces that are easy to clean and disinfect. The side rails can be horizontally fixed using safety locks to make patient transfer easier. Their concave center design helps prevent catheters from falling off, while integrated angle indicators show the backrest adjustment range. IV pole sockets are also provided for convenient equipment setup.
For mobility, the trolley uses four 150mm casters with central braking pedals and a fifth directional wheel for improved maneuverability. It also includes a two-section bottom tray with different sizes and depths, six drainage holes, and a loading capacity of 10kg.
Key Features
- Strong epoxy-coated steel construction
- Anti-rust and corrosion-resistant finish
- PP lying platform and side rails
- Easy-to-clean and disinfect surfaces
- Horizontally lockable side rails with safety locks
- Concave side rail design helps prevent catheter displacement
- Side rails with backrest angle indicators
- Four IV pole sockets
- Integrated oxygen cylinder holder
- Four Ø150mm casters with central braking pedals
- Fifth directional wheel for improved movement
- Two-section bottom tray with different sizes and depths
- Six drainage holes in the bottom tray
- Bottom tray loading capacity: 10kg
- Gas spring-assisted backrest adjustment
- Crank-operated height adjustment
- Height adjustment range: 510–850mm
- Backrest adjustment range: 0–70°
Specifications
| Specification | Details |
|---|---|
| Model | HL-A411B |
| Category | Patient Transfer Trolleys |
| Overall Size | L1930 × W644 × H510–850mm |
| Construction | Epoxy-coated steel |
| Lying Platform | PP |
| Side Rails | PP |
| Backrest Adjustment | 0–70° |
| Backrest Adjustment System | Gas spring |
| Height Adjustment | 510–850mm |
| Height Adjustment System | Manual crank |
| Casters | Ø150mm |
| Braking System | Central braking pedals |
| Directional Wheel | Fifth wheel |
| Bottom Tray | Two sections with different sizes and depths |
| Bottom Tray Loading Capacity | 10kg |
| Drainage Holes | 6 |
| Side Rail Capacity | 10kg |
| IV Pole Sockets | 4 |
Accessories
- 5cm high-density foam mattress with removable waterproof cover
- Adjustable stainless steel IV pole
- 4 IV pole sockets
- Oxygen cylinder holder
Ideal For
- Hospitals
- Emergency departments
- Patient transfer units
- Examination areas
- Recovery areas
- Diagnostic departments
- Clinics
- Other healthcare facilities
