Product Description

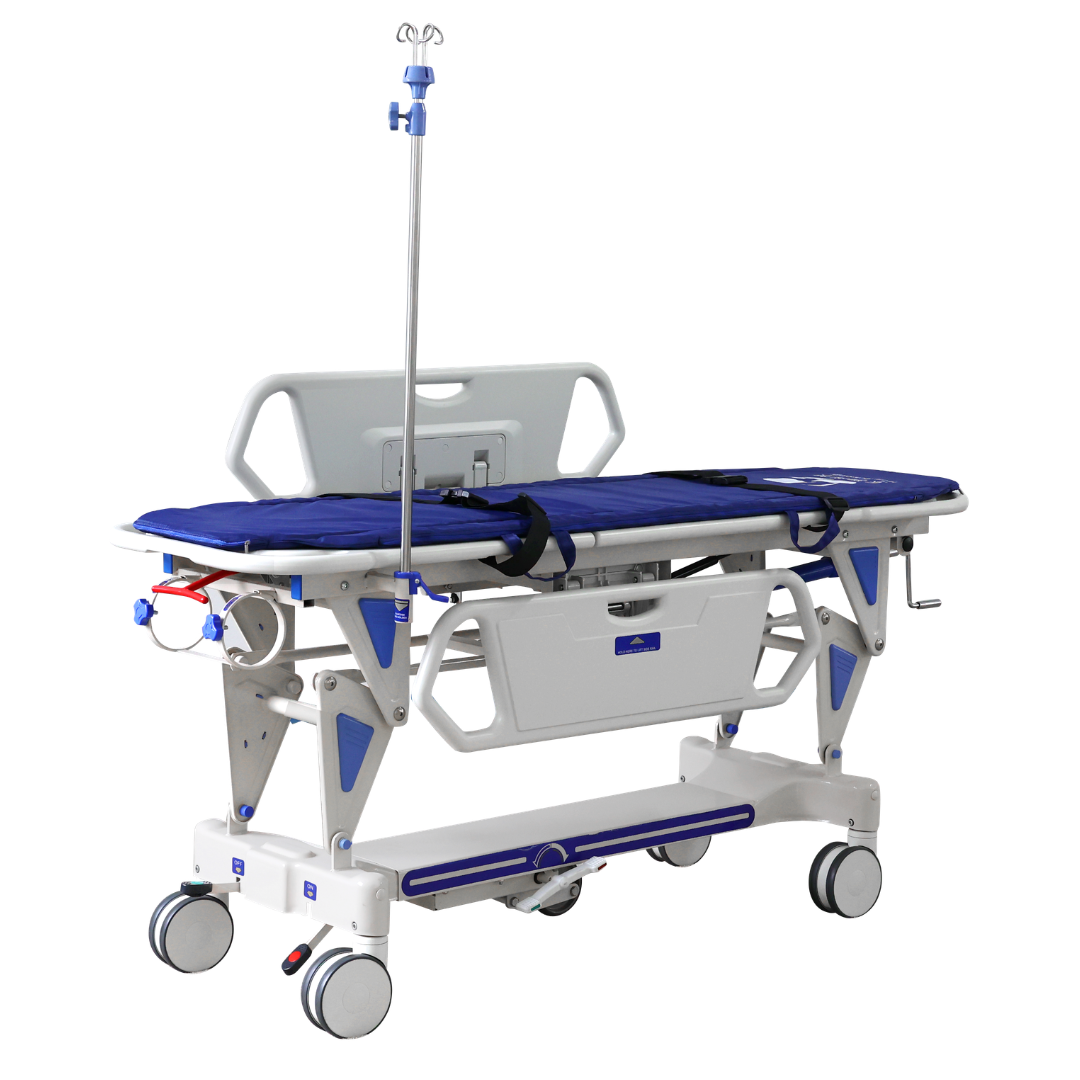

The HL-A413B Manual Patient Transfer Trolley is designed to support patient transfer and transportation in hospitals and healthcare facilities. Its heavy-duty mild steel frame is finished with an epoxy powder coating, providing a strong and durable structure for demanding healthcare environments.
The two-section lying platform is made from ABS plastic and is transparent for X-ray applications. The trolley features integrated push handles at both the head and foot ends for easier movement. Its collapsible ABS side rails include a self-locking device and dampers, making them convenient to operate, clean, and disinfect. When folded, the side rails can be concealed beneath the platform to support safer and easier patient transfer.
The trolley provides manual height adjustment from 560–850mm through a foot-end crank, while the back section can be adjusted from 0–70° using a gas spring system. Four anti-static swivel casters with a central braking system, together with a fifth directional steering caster, provide convenient mobility and control.
Key Features
- Heavy-duty mild steel structure and frame
- Epoxy powder-coated surface treatment
- Two-section ABS lying platform
- X-ray-transparent lying platform
- Integrated push handles at head and foot ends
- Collapsible ABS side rails
- Self-locking side rail mechanism with dampers
- Side rails can be concealed beneath the lying platform
- Easy-to-clean and disinfect surfaces
- Manual height adjustment from 560–850mm
- Gas spring-assisted backrest adjustment
- Backrest adjustment range: 0–70°
- Four anti-static swivel casters
- Central braking system
- Fifth directional steering caster
- Loading capacity up to 230kg
Specifications
| Specification | Details |
|---|---|
| Model | HL-A413B |
| Category | Patient Transfer Trolleys |
| Overall Dimension | L1950 × W750mm |
| Height Adjustment | 560–850mm |
| Backrest Adjustment | 0–70° |
| Loading Capacity | 230kg |
| Frame & Structure | Heavy-duty mild steel |
| Surface Treatment | Epoxy powder coating |
| Lying Platform | Two-section ABS plastic |
| X-Ray Compatibility | Transparent for X-ray |
| Side Rails | Collapsible ABS plastic |
| Casters | 4 anti-static swivel casters |
| Braking System | Central braking |
| Directional Caster | Fifth steering caster |
| Height Adjustment System | Manual crank |
| Backrest Adjustment System | Gas spring |
Accessories
- High-density polyurethane foam mattress with removable medical-grade cover
- PU mattress cover
- Oxygen cylinder holder
- Adjustable-height stainless steel IV pole
- IV pole with four hanging hooks
- IV pole storage device
- IV pole sockets
- Body restraint strips
Ideal For
- Hospitals
- Emergency departments
- Patient transfer units
- Examination areas
- Diagnostic departments
- Recovery areas
- Clinics
- Other healthcare facilities
