Long Description

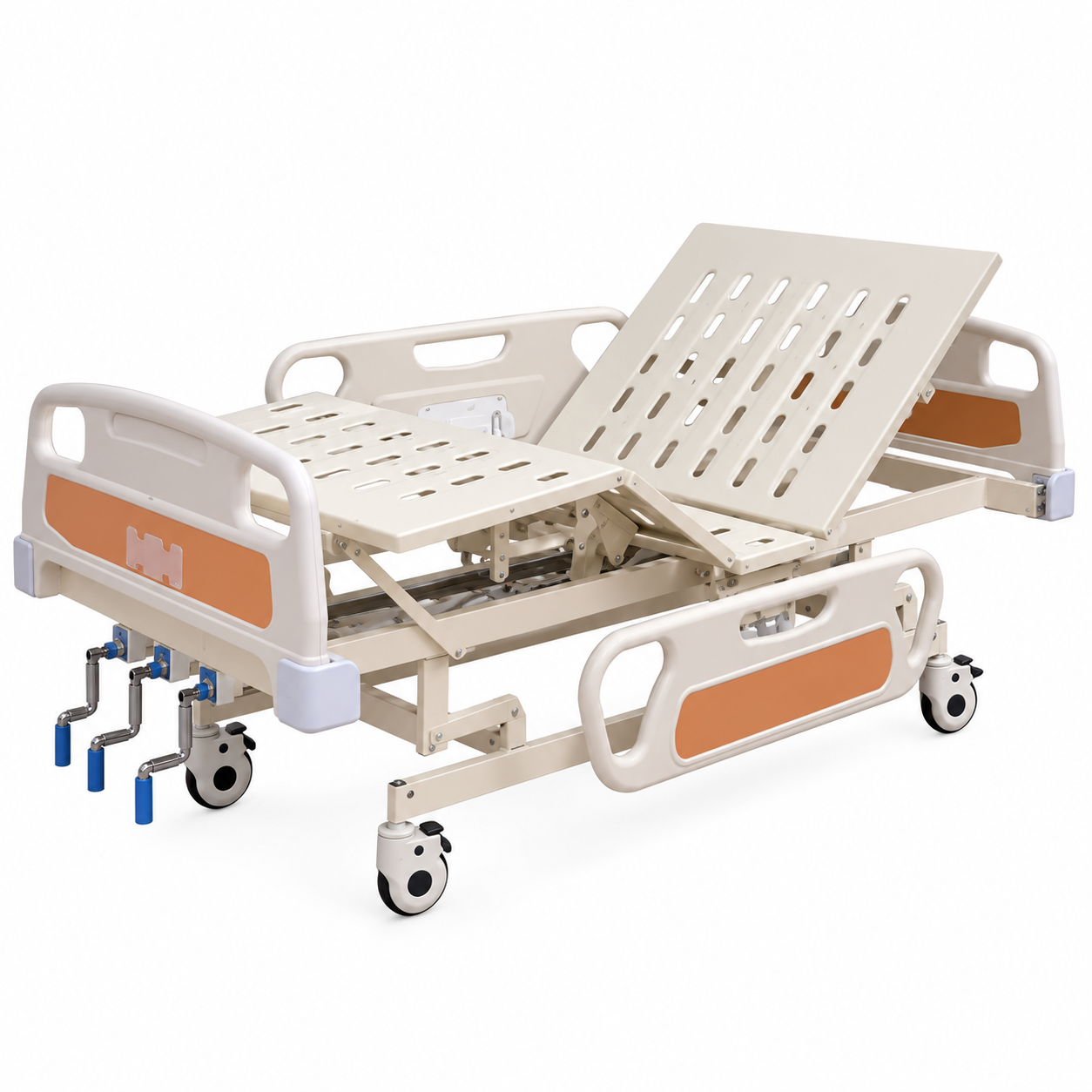

FTLHB-HN03B Manual 3-Crank Hospital Bed
The FTLHB-HN03B Manual 3-Crank Hospital Bed is designed to support essential patient positioning and everyday nursing activities in professional healthcare environments.
Its three manually operated adjustment functions allow caregivers to raise or lower the backrest, adjust the knee section, and change the overall bed height using mechanical crank controls.
The bed combines a sturdy support frame with ABS end panels, PP side rails, and a mobile castor base.
Key Features and Benefits
Three Manual Adjustment Functions
The bed supports independent manual adjustment of the backrest, knee section, and overall height, providing flexible patient positioning without electric motors.
Adjustable Backrest
The backrest can be elevated up to 75° to accommodate different resting and patient care positions.
Knee-Section Adjustment
The knee section can be raised up to 35° to provide additional positioning options.
Manual Height Adjustment
The bed height can be adjusted from 420 mm to 680 mm to assist caregivers with nursing tasks and patient handling.
PP Side Rails
The bed features PP side rails that provide a protective barrier and allow caregiver access when lowered.
ABS Headboard and Footboard
The ABS end panels are designed for practical use in healthcare settings.
Mobile Frame
Four castors allow the bed to be moved within hospitals and clinical facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-HN03B |
| Product Type | Manual 3-Crank Hospital Bed |
| Main Functions | Backrest, Knee Section, Height Adjustment |
| Overall Dimensions | 2115 × 995 × 420–680 mm (±10 mm) |
| Backrest Adjustment | 0°–75° ± 5° |
| Knee-Section Adjustment | 0°–35° ± 5° |
| Height Adjustment | 420–680 mm (±10 mm) |
| Adjustment Mechanism | Manual Crank |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, PP |
| IV Pole | 1 |
Standard Configuration
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of PP side rails
- 1 IV pole
- Manual three-crank adjustment system
Optional Accessories
- Medical mattress
- Overbed table
- Bedside cabinet
- Patient file panel
Applications
- General hospital wards
- Medical and surgical departments
- Nursing care facilities
- Patient recovery units
- Long-term care environments
- Clinics and healthcare institutions
Why Choose the FTLHB-HN03B?
The FTLHB-HN03B Manual 3-Crank Hospital Bed combines three essential mechanical positioning functions with practical hospital bed components.
Its adjustable backrest, knee section, and height, together with ABS end panels and PP side rails, make it a suitable choice for facilities requiring a manually operated patient care bed.
