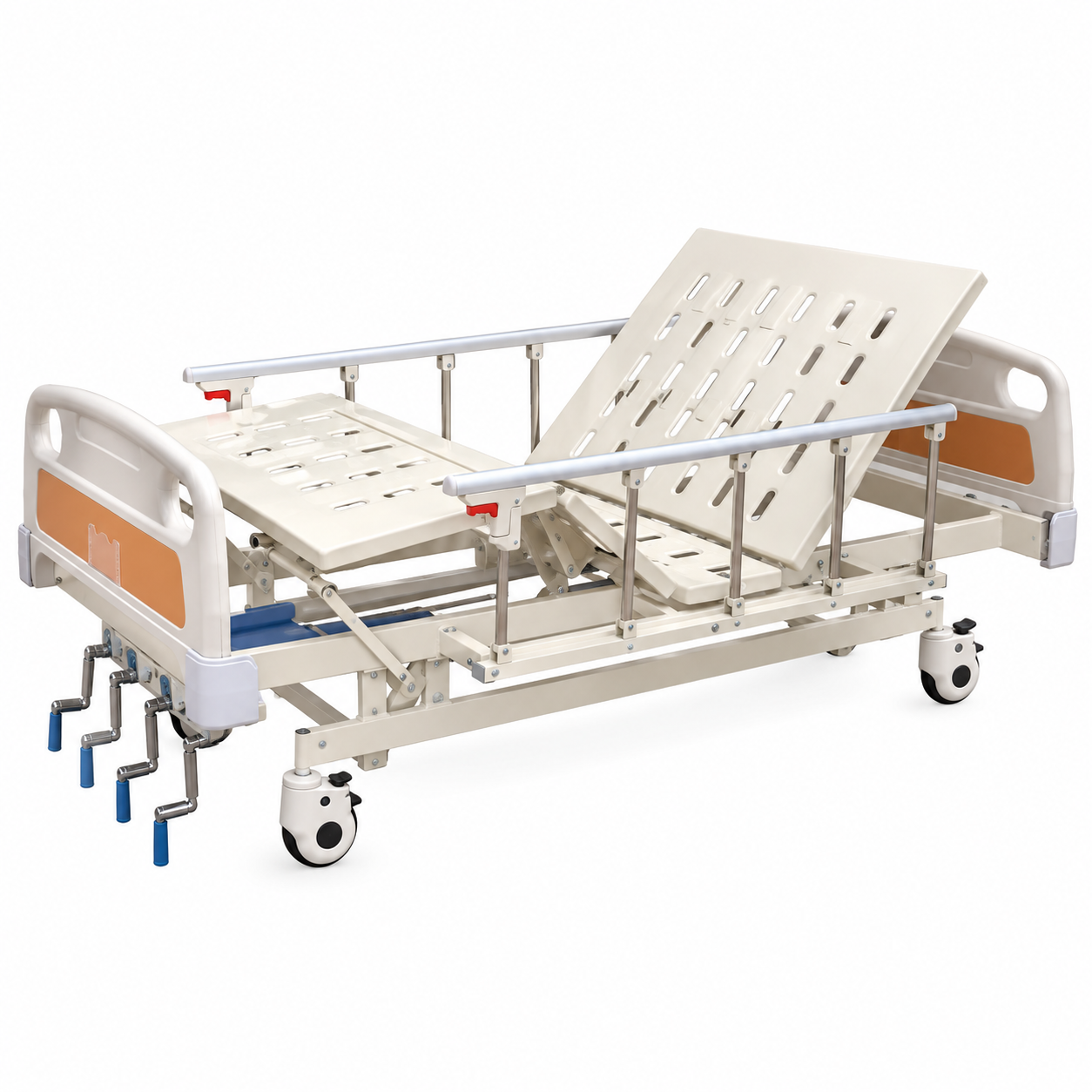

FTLHB-HN03A Manual 3-Crank Hospital Bed
The FTLHB-HN03A Manual 3-Crank Hospital Bed is designed to support patient positioning and routine nursing activities in hospitals, clinics, and healthcare facilities.
Its three manual adjustment functions allow caregivers to raise or lower the backrest, adjust the knee section, and change the overall bed height using mechanical crank controls.
Key Features and Benefits
Three Manual Adjustment Functions
The bed provides independent manual adjustment of the backrest, knee section, and bed height, allowing patient positioning without an electrical power supply.
Adjustable Backrest
The backrest can be elevated up to 75° to accommodate different resting and care positions.
Adjustable Knee Section
The knee section can be raised up to 35° to provide additional positioning flexibility.
Manual Height Adjustment
The bed height can be adjusted from 420 mm to 680 mm to support nursing activities and patient handling.
Aluminum Alloy Side Rails
The bed is equipped with aluminum alloy side rails to provide a protective barrier during patient care.
ABS Headboard and Footboard
The ABS end panels are designed for practical use in healthcare environments.
Mobile Bed Frame
Four castors allow the bed to be moved within clinical facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-HN03A |
| Product Type | Manual 3-Crank Hospital Bed |
| Main Functions | Backrest, Knee Section, Height Adjustment |
| Overall Dimensions | 2115 × 995 × 420–680 mm (±10 mm) |
| Backrest Adjustment | 0°–75° ± 5° |
| Knee-Section Adjustment | 0°–35° ± 5° |
| Height Adjustment | 420–680 mm (±10 mm) |
| Adjustment Mechanism | Manual Crank |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, Aluminum Alloy |
| IV Pole | 1 |
Standard Configuration
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of aluminum alloy side rails
- 1 IV pole
- Manual crank adjustment system
Optional Accessories
- Medical mattress
- Overbed table
- Bedside cabinet
- Patient file panel
Applications
- General hospital wards
- Medical and surgical departments
- Nursing care facilities
- Patient recovery units
- Long-term care environments
- Healthcare and clinical institutions
Why Choose the FTLHB-HN03A?
The FTLHB-HN03A Manual 3-Crank Hospital Bed combines essential patient positioning functions with a straightforward mechanical adjustment system.
Its adjustable backrest, knee section, and height, together with aluminum alloy side rails and a mobile frame, make it a practical option for healthcare facilities requiring a manually operated hospital bed.
