Short Description
The FTLHB-LZ5D Double Column Motors Hospital Bed is an electrically adjustable medical bed designed for patient positioning and care in hospitals and clinical facilities. It features independent backrest and knee-section adjustment, whole-bed height adjustment, Trendelenburg and reverse Trendelenburg positioning, and an advanced electrical control system.
Key Features:
- Electrically adjustable backrest and knee sections
- Whole-bed height adjustment
- Trendelenburg and reverse Trendelenburg positioning
- Overall dimensions: 2214 × 1050 × 580–850 mm
- Backrest adjustment: 0°–75°
- Knee-section adjustment: 0°–35°
- Height adjustment range: 505–805 mm
- Reverse and Trendelenburg tilt: 15° ± 2°
- Four castors with central locking system
- Integrated controls and emergency power backup
Long Description

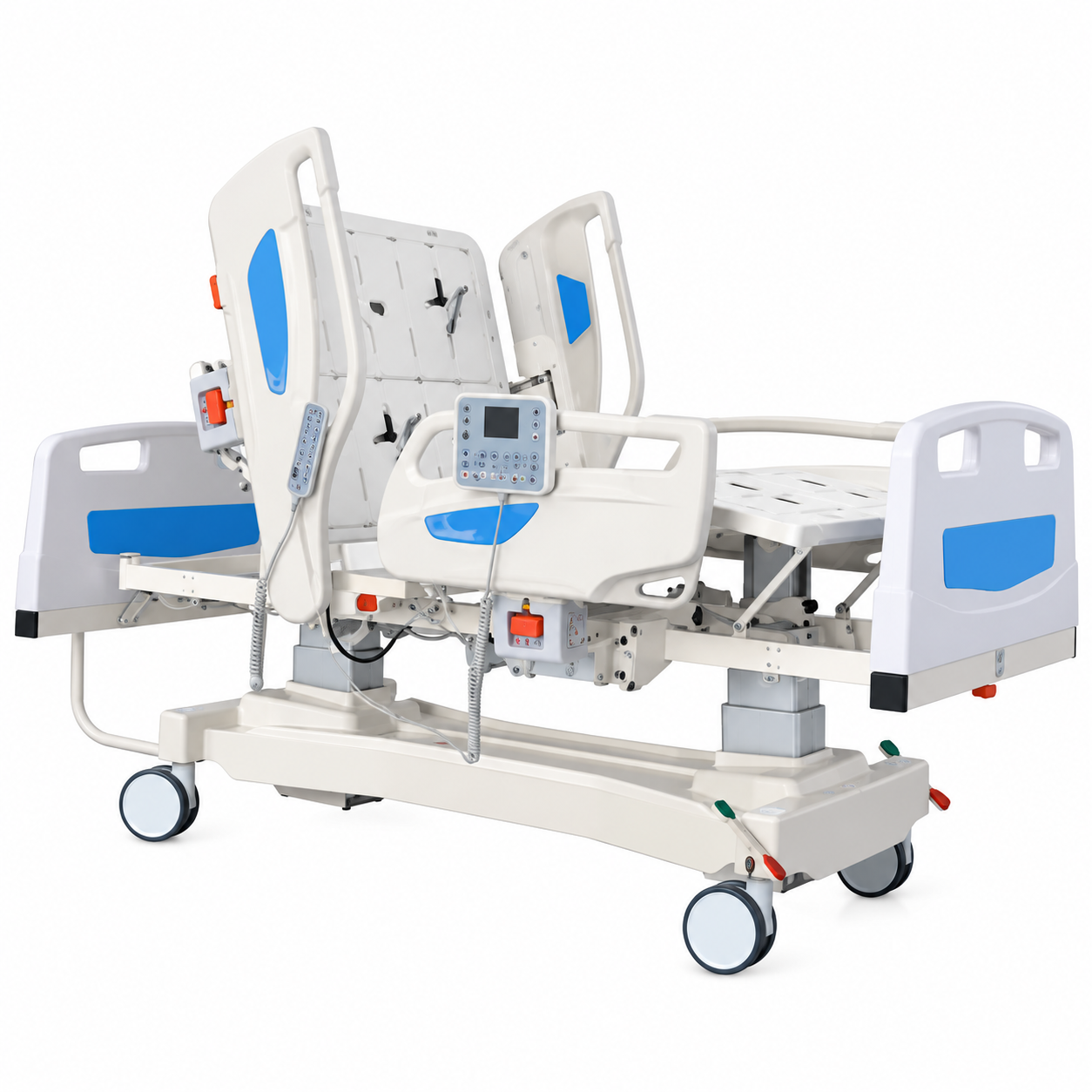

FTLHB-LZ5D Double Column Motors Hospital Bed
The FTLHB-LZ5D Double Column Motors Hospital Bed is designed to support adjustable patient positioning and routine care in professional healthcare environments.
Its electrically operated adjustment functions allow caregivers to modify the backrest, knee section, bed height, and bed tilt according to clinical requirements. The bed also incorporates safety and control components intended to support convenient operation.
Key Features and Benefits
Electric Patient Positioning
The adjustable backrest and knee sections support different patient resting and care positions.
Adjustable Bed Height
The bed’s electric height adjustment helps caregivers select an appropriate working height for patient care and transfers.
Trendelenburg and Reverse Trendelenburg
Both tilt functions provide additional positioning options for clinical use under appropriate professional supervision.
Advanced Control System
The listed configuration includes medical actuators, a control box, and control interfaces for operating the bed’s adjustable functions.
Mobility and Stability
Four castors support movement within healthcare facilities, while the central locking arrangement helps secure the bed when stationary.
Emergency Backup
An integrated backup power system is included in the listed configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-LZ5D |
| Product Type | Electric Hospital Bed |
| Configuration | Double Column Motors |
| Overall Dimensions | 2214 × 1050 × 580–850 mm |
| Backrest Adjustment | 0°–75° |
| Knee-Section Adjustment | 0°–35° |
| Height Adjustment | 505–805 mm |
| Trendelenburg / Reverse Trendelenburg | 15° ± 2° |
| Castors | 4 |
| Locking System | Central Locking |
| Bed Functions | Backrest, Knee Section, Height, Trendelenburg and Reverse Trendelenburg |
| Backup Power | UPS / Emergency Power System |
Applications
- General hospital wards
- Patient care units
- Clinical care facilities
- Medical and surgical wards
- Patient positioning and nursing care
Why Choose the FTLHB-LZ5D?
The FTLHB-LZ5D Double Column Motors Hospital Bed combines electric adjustment functions, flexible patient positioning, and practical caregiver controls in a hospital bed designed for professional healthcare environments.
Its adjustable sections, tilt functionality, mobile base, and integrated control system make it a versatile option for facilities requiring electrically operated patient beds.
