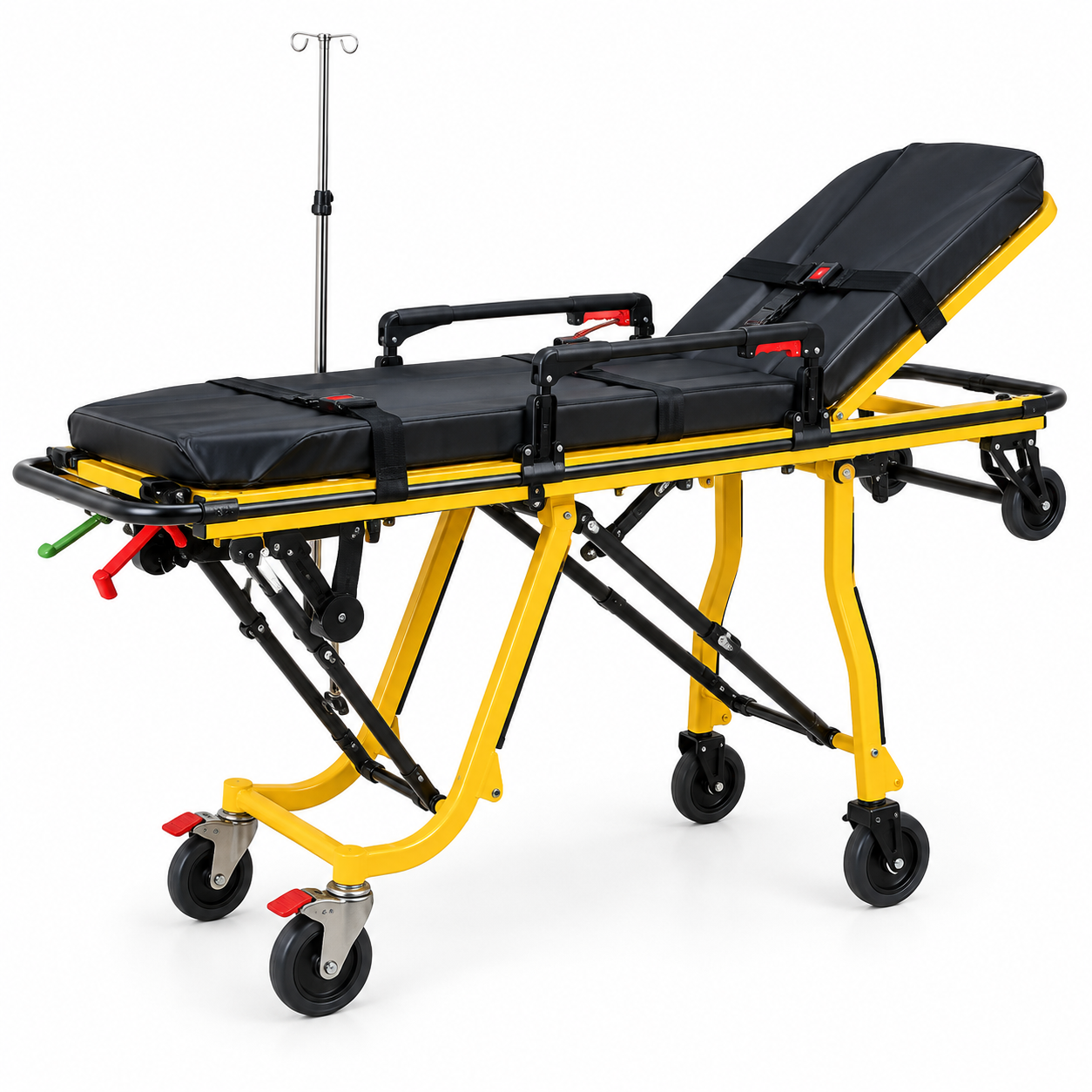

FTLHB-YHR-A8 Foldable Emergency Ambulance Stretcher
The FTLHB-YHR-A8 is a foldable emergency stretcher designed to support patient transportation in ambulances, hospitals, and emergency medical facilities.
Its high-strength aluminum alloy frame combines a wheeled transport platform with a folding undercarriage. The stretcher is designed so that its legs fold during compatible ambulance loading procedures, helping emergency personnel move patients into and out of the vehicle.
The adjustable backrest provides additional patient positioning flexibility during supervised transport.
Key Features and Benefits
Foldable Ambulance Loading Mechanism
The folding leg system is designed to assist with loading and unloading the stretcher from compatible ambulances.
Single-Operator Design
The manufacturer describes the stretcher as suitable for operation by one person during loading and unloading. Actual staffing requirements should follow local protocols, patient condition, and equipment compatibility.
High-Strength Aluminum Alloy Frame
The lightweight metal frame is designed for emergency patient transportation.
Adjustable Backrest
The backrest can be raised from 0° to 88° to accommodate different patient transport positions.
Patient Restraint and Safety Features
The standard configuration includes patient straps and a safety lock for use during appropriate transport procedures.
Wheeled Mobility
The undercarriage includes castors to support movement within hospitals and emergency transport areas.
Included Accessories
A mattress and IV pole are listed as part of the standard configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-YHR-A8 |
| Product Type | Foldable Emergency Ambulance Stretcher |
| Frame Material | High-Strength Aluminum Alloy |
| Backrest Adjustment | 0°–88° |
| Loading Height | 60 cm |
| Net Weight | 35 kg |
| Maximum Load Capacity | 350 lbs (Approx. 159 kg) |
| Listed Dimensions | 191 × 57 × 91 cm |
| Folding Mechanism | Foldable Undercarriage |
| Included Accessories | Mattress, Patient Straps, IV Pole, Safety Lock |
Applications
- Ambulance patient transportation
- Emergency medical services
- Hospital emergency departments
- Patient transfer within emergency care facilities
- Medical transport operations
Why Choose the FTLHB-YHR-A8?
The FTLHB-YHR-A8 Foldable Emergency Ambulance Stretcher combines a high-strength aluminum alloy frame, adjustable backrest, and folding wheeled undercarriage in a patient transport system intended for emergency medical use.
Its practical loading mechanism and included transport accessories make it an option for emergency services using compatible ambulance equipment.
