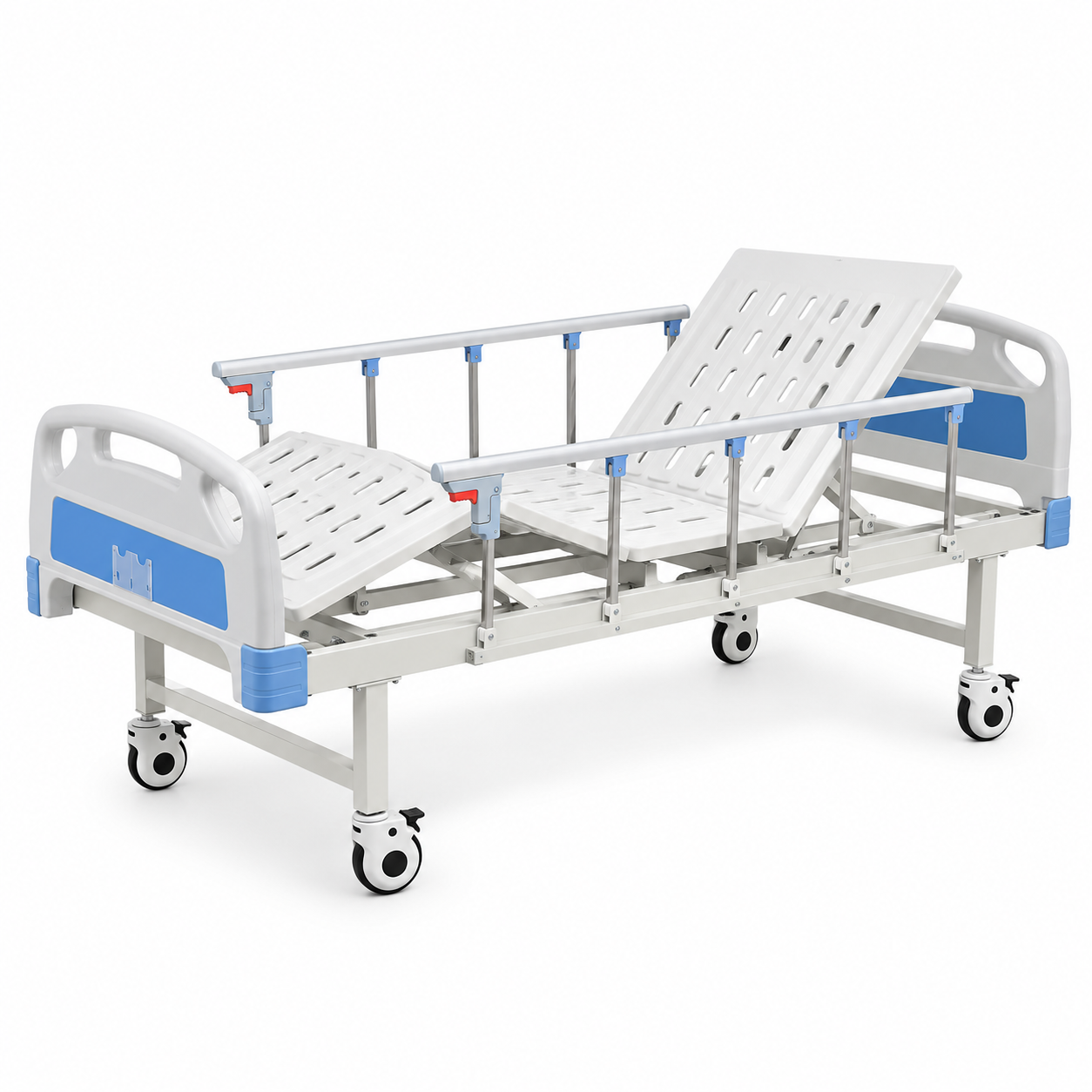

FTLHB-S231 Manual 2-Function Hospital Bed
The FTLHB-S231 Manual 2-Function Hospital Bed is designed to provide essential patient positioning functions in hospitals, clinics, and professional healthcare environments.
Its two manually operated crank mechanisms allow caregivers to adjust the backrest and knee section independently. The mechanical operation eliminates the need for electrical power during routine bed adjustments.
The bed combines a sturdy metal support frame with aluminum alloy side rails, ABS headboard and footboard panels, and four castors.
Key Features and Benefits
Two Manual Adjustment Functions
The bed supports manual adjustment of the backrest and knee section, allowing caregivers to select different patient positions.
Adjustable Backrest
The backrest can be raised up to 80° ± 5° to accommodate sitting and semi-reclined patient positions.
Adjustable Knee Section
The knee section can be elevated up to 40° ± 5° to provide additional positioning flexibility.
Aluminum Alloy Side Rails
The bed features aluminum alloy side rails that provide a protective barrier and allow caregiver access when lowered.
ABS Headboard and Footboard
The ABS end panels are designed for practical use in healthcare environments.
Mobile Bed Frame
Four castors support movement within hospital and clinical facilities.
Essential Accessories
The standard configuration includes four urine hooks and one IV pole for routine patient care.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-S231 |
| Product Type | Manual 2-Function Hospital Bed |
| Main Functions | Backrest and Knee-Section Adjustment |
| Overall Dimensions | 2100 × 970 × 480 mm (±10 mm) |
| Backrest Adjustment | 0°–80° ± 5° |
| Knee-Section Adjustment | 0°–40° ± 5° |
| Adjustment Mechanism | 2 Manual Crank Systems |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, Aluminum Alloy |
| Urine Hooks | 4 |
| IV Pole | 1 |
Standard Configuration
- 2 manual crank mechanism systems
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of aluminum alloy side rails
- 4 urine hooks
- 1 IV pole
Optional Accessories
- Medical mattress
- Dining board
- Bedside cabinet
- Sundries basket
Applications
- General hospital wards
- Medical and surgical departments
- Nursing care facilities
- Patient recovery rooms
- Long-term patient care
- Clinics and healthcare institutions
Why Choose the FTLHB-S231?
The FTLHB-S231 Manual 2-Function Hospital Bed combines essential manual adjustment functions with practical patient care features. Its durable frame, aluminum alloy side rails, ABS end panels, and mobile castors make it suitable for everyday healthcare use.
