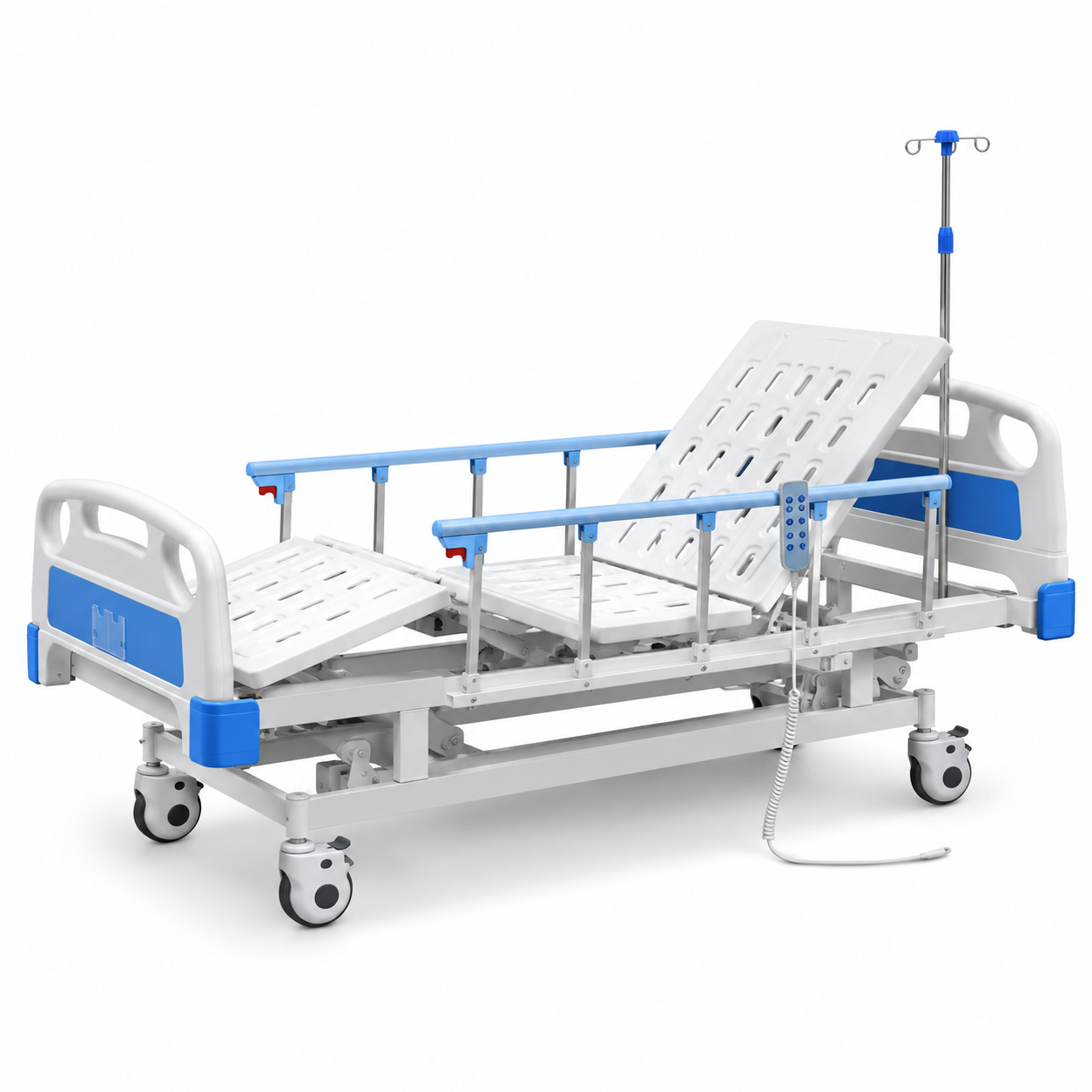

FTLHB-HN05D Electric Hospital Bed
The FTLHB-HN05D Electric Hospital Bed is designed to provide versatile patient positioning and support routine nursing care in professional healthcare environments.
Its electrically operated adjustment functions allow caregivers to raise or lower the backrest, adjust the knee section, modify the bed height, and select Trendelenburg or reverse Trendelenburg positioning when clinically appropriate.
Key Features and Benefits
Electric Backrest Adjustment
The adjustable backrest supports different reclining and semi-seated patient positions.
Electric Knee-Section Adjustment
The knee section can be adjusted to provide additional patient positioning flexibility.
Adjustable Bed Height
Electric height adjustment helps caregivers select a suitable working height for nursing care and patient handling.
Trendelenburg and Reverse Trendelenburg
The bed provides both tilt functions for supervised clinical positioning.
Aluminum Alloy Side Rails
The bed includes aluminum alloy side rails designed to provide a protective barrier while allowing caregiver access.
Handset Control System
An electric handset enables operation of the bed’s adjustable functions.
Durable Hospital Bed Construction
ABS headboard and footboard panels, a metal frame, and mobile castors support practical use in healthcare environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-HN05D |
| Product Type | Electric Multifunction Hospital Bed |
| Overall Dimensions | 2050 × 960 × 420–680 mm (±10 mm) |
| Backrest Adjustment | 0°–75° ± 5° |
| Knee-Section Adjustment | 0°–35° ± 5° |
| Height Adjustment | 420–680 mm (±10 mm) |
| Trendelenburg / Reverse Trendelenburg | 12° ± 2° |
| Electric Motors | 4 |
| Control Box | 1 |
| Handset | 1 |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, Aluminum Alloy |
| IV Pole | 1 |
Standard Configuration
- 4 electric motors
- 1 control box
- 1 handset
- Brake system
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of aluminum alloy side rails
- 1 IV pole
Optional Accessories
- Medical mattress
- Overbed table
- Bedside cabinet
- Patient file panel
Applications
- General hospital wards
- Medical and surgical departments
- Patient recovery units
- Nursing care facilities
- Clinical patient positioning
- Long-term care environments
Why Choose the FTLHB-HN05D?
The FTLHB-HN05D Electric Hospital Bed combines multiple electric adjustment functions with practical patient care features, including adjustable side rails, a mobile frame, and handset controls.
Its flexible positioning capabilities make it suitable for healthcare facilities requiring a multifunctional electric hospital bed.
