Long Description

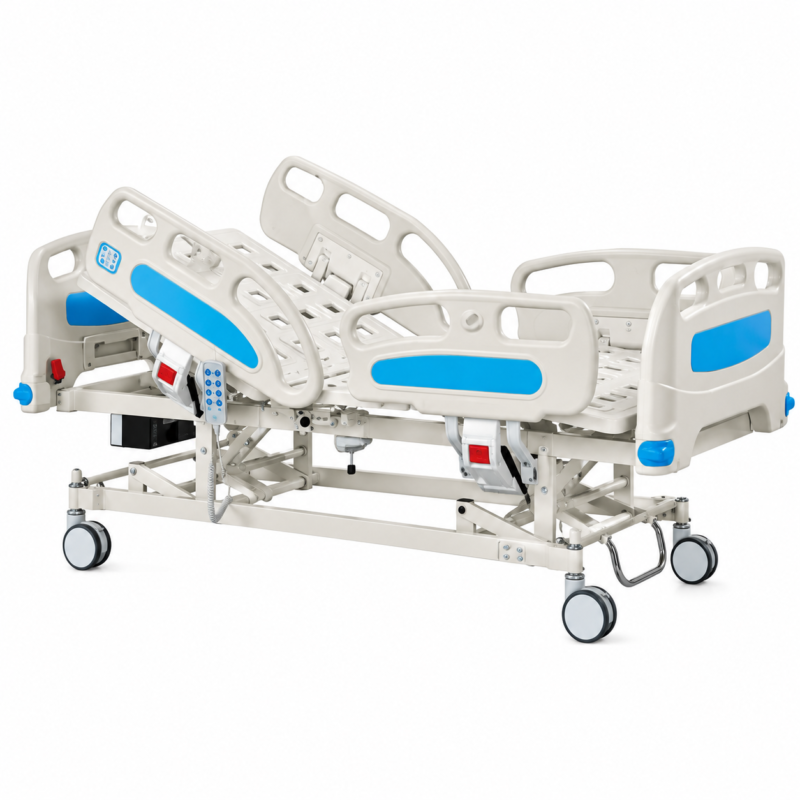

FTLHB-HN03E Electric 3-Function Hospital Bed
The FTLHB-HN03E Electric 3-Function Hospital Bed is a practical electric patient care bed designed for professional medical environments. It provides three essential positioning functions to support patient comfort, nursing activities, and everyday clinical care.
Its electrically adjustable backrest, knee section, and height allow caregivers to position the bed according to individual patient and care requirements.
Key Features and Benefits
Three Electric Adjustment Functions
The bed provides electric control of the backrest, knee section, and overall bed height for flexible patient positioning.
Adjustable Backrest
The backrest can be elevated to support sitting and semi-reclined positions during supervised patient care.
Knee-Section Adjustment
The adjustable knee section allows additional positioning options for patient comfort and clinical care.
Electric Height Adjustment
The bed height can be adjusted from 420 mm to 680 mm to support nursing procedures and patient handling.
Protective Side Rails
PP side rails provide a protective barrier and can be adjusted as required by caregivers.
Electric Handset Control
The supplied handset allows convenient operation of the bed’s electric adjustment functions.
Durable Bed Construction
The bed includes ABS headboard and footboard panels, a metal support frame, and four castors with a braking system.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-HN03E |
| Product Type | Electric 3-Function Hospital Bed |
| Main Functions | Backrest, Knee Section, Height Adjustment |
| Overall Dimensions | 2115 × 995 × 420–680 mm (±10 mm) |
| Backrest Adjustment | 0°–75° ± 5° |
| Knee-Section Adjustment | 0°–35° ± 5° |
| Height Adjustment | 420–680 mm (±10 mm) |
| Electric Motors | 3 |
| Control Box | 1 |
| Handset | 1 |
| Braking System | Included |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, PP |
| IV Pole | 1 |
Standard Configuration
- 3 electric motors
- 1 control box
- 1 handset
- Braking system
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of PP side rails
- 1 IV pole
Optional Accessories
- Medical mattress
- Overbed table
- Bedside cabinet
- Patient file panel
Applications
- General hospital wards
- Medical and surgical departments
- Nursing care facilities
- Patient recovery environments
- Long-term patient care
- Healthcare and clinical institutions
Why Choose the FTLHB-HN03E?
The FTLHB-HN03E Electric 3-Function Hospital Bed combines essential electric positioning functions with practical caregiver controls, protective side rails, and a durable support structure.
It is a suitable option for healthcare facilities seeking an adjustable hospital bed for routine patient care and nursing support.
