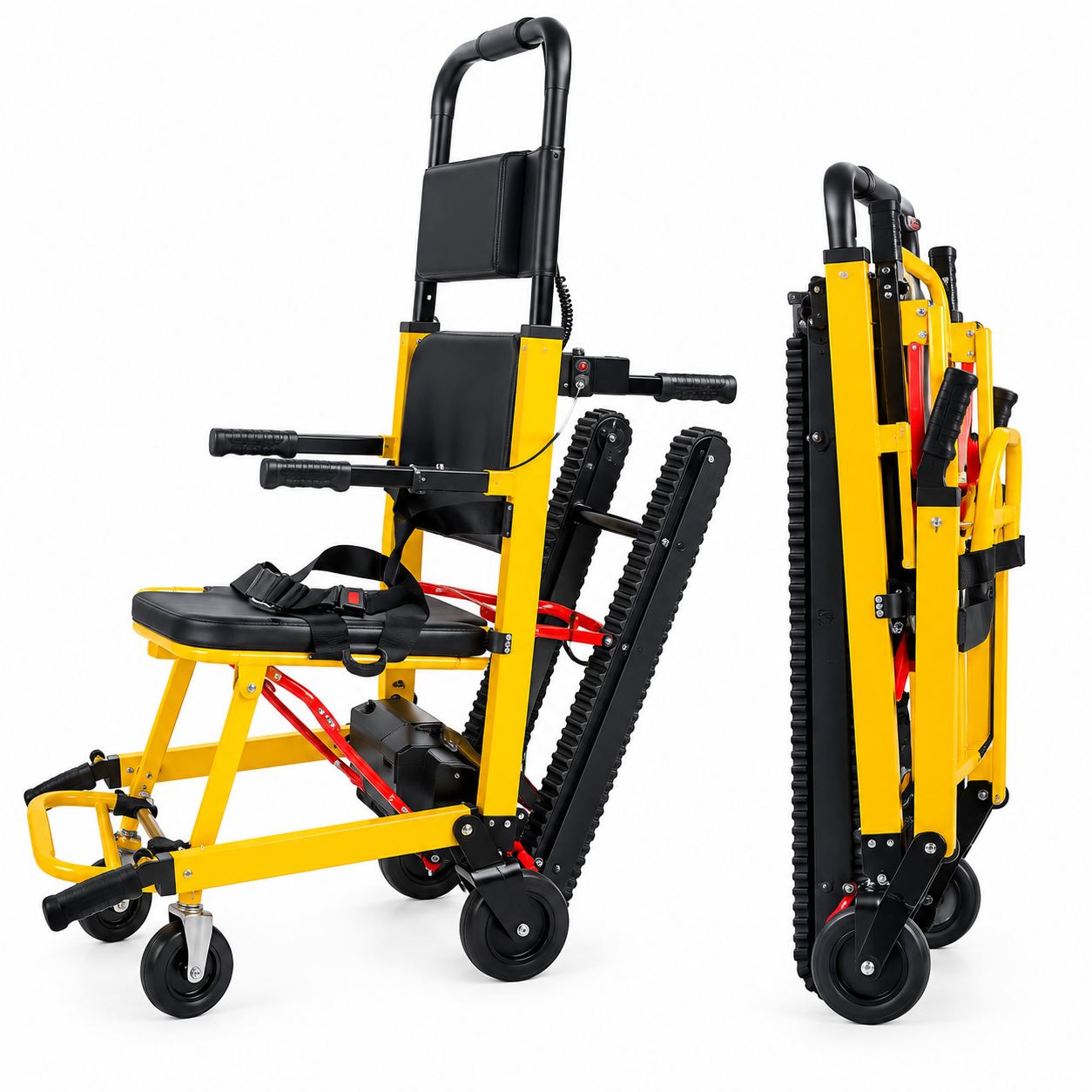

FTLHB-YHR-LD01 Motorized Powered Stair Chair
The FTLHB-YHR-LD01 Powered Stair Chair is designed to support patient transportation and evacuation in buildings with stairways, narrow passages, and limited stretcher access.
The chair combines a lightweight aluminum alloy structure with a powered stair-assistance mechanism, padded seating, and a folding frame. Its compact folded configuration supports storage and transportation between uses.
Key Features and Benefits
Powered Stair Assistance
The motorized system is designed to assist trained operators with controlled patient movement on suitable stairways.
Durable Aluminum Alloy Frame
The aluminum alloy construction provides a practical combination of structural strength and portability.
Cushioned Patient Seating
The padded seat and back support provide a seated transport surface.
High Loading Capacity
The manufacturer lists a maximum loading capacity of 200 kg (440 lbs).
Rechargeable Battery Operation
The chair includes a rechargeable battery system with a listed charging time of approximately 6–7 hours.
Foldable Construction
The folding frame allows the chair to be stored more compactly when not in use.
Compact Transport Design
The folded dimensions help facilitate storage in emergency transport vehicles and equipment areas.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-YHR-LD01 |
| Product Type | Powered Stair Chair |
| Frame Material | Durable Aluminum Alloy |
| Seat | Glossy Cushion |
| Maximum Loading Capacity | 200 kg (440 lbs) |
| Battery / Charger Specification | 29.4V, 13Ah / 29.4V, 2A (catalog listing) |
| Motor Specification | 24V, 200W / 120W (catalog listing) |
| Charging Time | 6–7 Hours |
| Open Dimensions | 110 × 52 × 155 cm |
| Folded Dimensions | 110 × 52 × 28 cm |
| Operation | Motorized Stair Assistance |
| Frame Design | Foldable |
Applications
- Emergency medical services
- Stairway patient transportation
- Patient evacuation in multistory buildings
- Ambulance and medical transport teams
- Hospitals and healthcare facilities
- Assisted mobility under trained supervision
Why Choose the FTLHB-YHR-LD01?
The FTLHB-YHR-LD01 Powered Stair Chair combines motorized stair assistance, a durable aluminum alloy frame, cushioned seating, and a compact folding design.
It is a practical option for trained medical transport and evacuation teams requiring a powered chair for appropriate stairway transport situations.
