Long Description

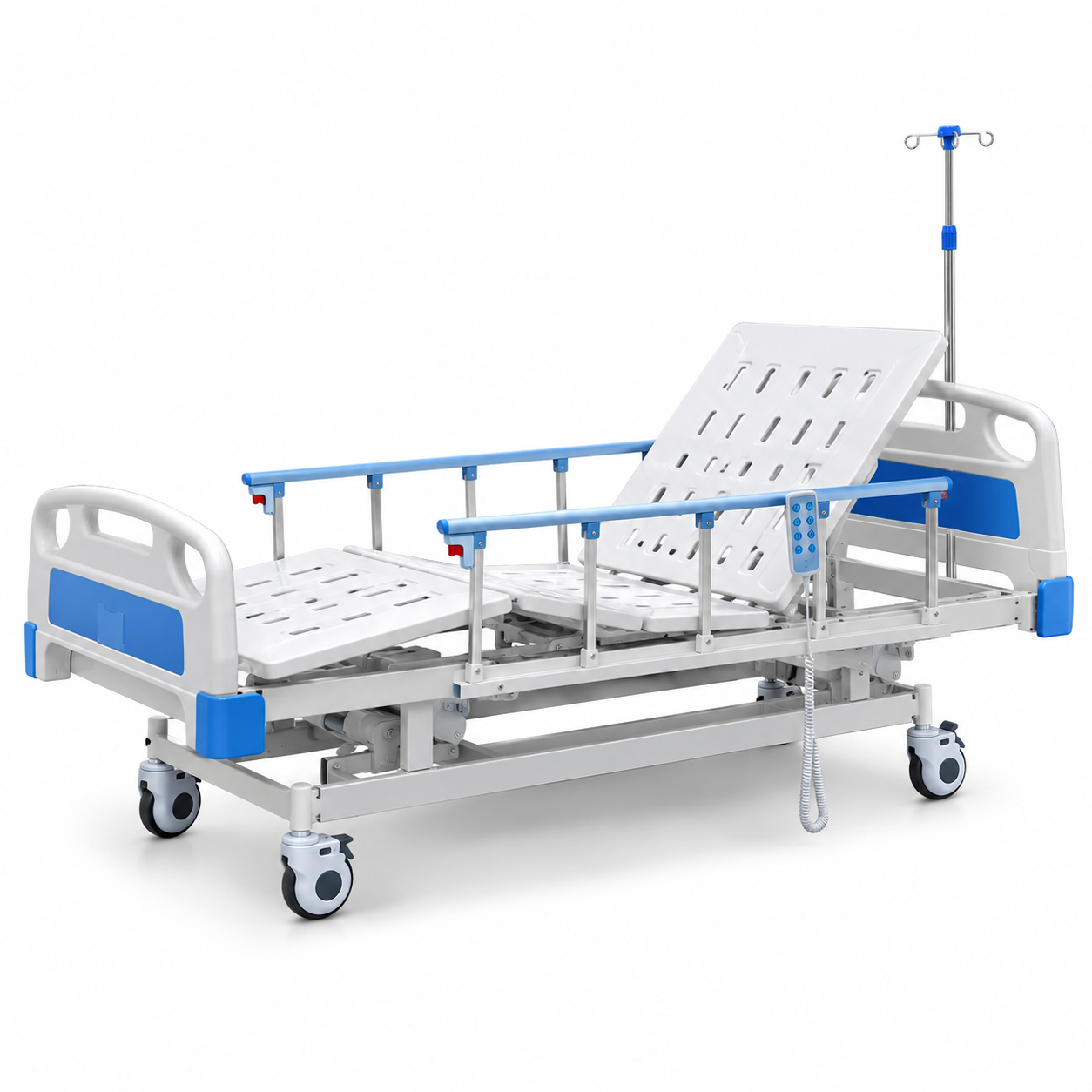

FTLHB-HN03D Electric 3-Function Hospital Bed
The FTLHB-HN03D Electric 3-Function Hospital Bed is designed to provide essential electrically operated positioning functions for hospital patients and caregivers.
Its adjustable backrest, knee section, and bed height allow healthcare professionals to configure the bed for different patient care activities. The bed combines a metal frame, aluminum alloy side rails, and ABS end panels with an electric control system.
Key Features and Benefits
Three Electric Adjustment Functions
The bed offers electric adjustment of the backrest, knee section, and overall height to support patient positioning and caregiver access.
Adjustable Backrest
The backrest can be raised to support sitting and semi-reclined positions during appropriate patient care activities.
Knee-Section Positioning
The adjustable knee section provides additional flexibility for patient positioning and comfort.
Electric Height Adjustment
The bed height can be adjusted from 420 mm to 680 mm, helping caregivers select a suitable working height.
Aluminum Alloy Side Rails
The side rails provide a protective barrier and can be lowered or raised as required.
ABS Headboard and Footboard
The bed includes ABS end panels designed for everyday hospital use.
Mobility and Braking
Four castors facilitate bed movement, while the braking system helps keep the bed stationary when needed.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTLHB-HN03D |
| Product Type | Electric 3-Function Hospital Bed |
| Main Functions | Backrest, Knee Section, Height Adjustment |
| Overall Dimensions | 2115 × 995 × 420–680 mm (±10 mm) |
| Backrest Adjustment | 0°–75° ± 5° |
| Knee-Section Adjustment | 0°–35° ± 5° |
| Height Adjustment | 420–680 mm (±10 mm) |
| Electric Motors | 3 |
| Control Box | 1 |
| Handset | 1 |
| Braking System | Included |
| Castors | 4 |
| Headboard and Footboard | 1 Pair, ABS |
| Side Rails | 1 Pair, Aluminum Alloy |
| IV Pole | 1 |
Standard Configuration
- 3 electric motors
- 1 control box
- 1 handset
- 1 braking system
- 4 castors
- 1 pair of ABS headboard and footboard
- 1 pair of aluminum alloy side rails
- 1 IV pole
Optional Accessories
- Medical mattress
- Overbed table
- Bedside cabinet
- Patient file panel
Applications
- General hospital wards
- Medical and surgical departments
- Nursing care facilities
- Patient recovery units
- Long-term care environments
- Healthcare and clinical institutions
Why Choose the FTLHB-HN03D?
The FTLHB-HN03D Electric 3-Function Hospital Bed combines three essential electric positioning functions with aluminum alloy side rails, durable ABS end panels, and a convenient handset control system.
It is a practical option for healthcare facilities requiring an electrically adjustable hospital bed for everyday patient care.
