Product Detail

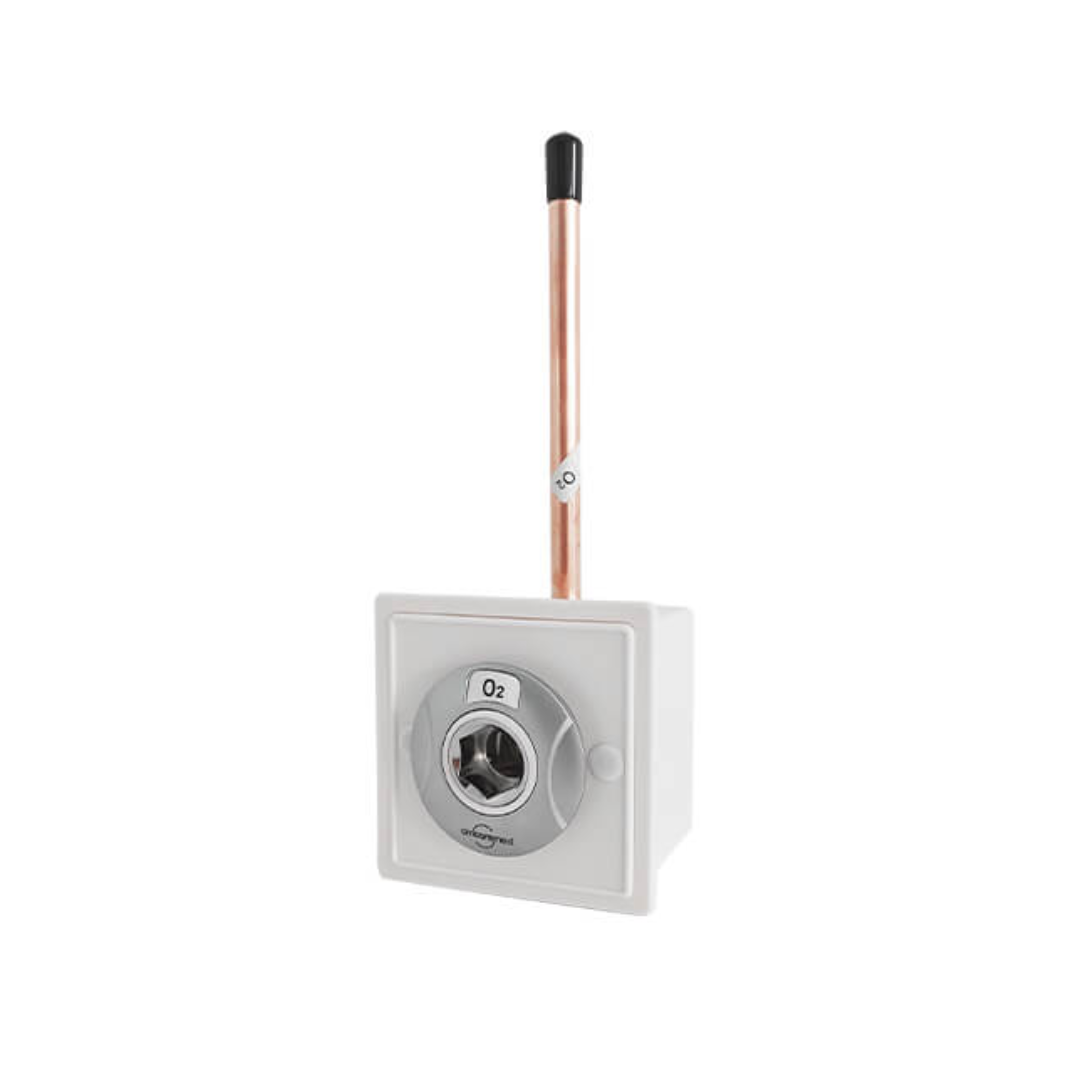

German DIN Standard Medical Gas Oxygen Outlets are installed at medical gas systems delivery points. The base part made of brass alloy. Twice outlet connection. With shut-off valve can maintain without having to interrupt gas delivery to other outlets. Only accept German DIN standard quick connect adapters. Different gas types with different quick-connect adapters.
Specifications
- Completely with EN 737-1:1998 and DIN 13620-2 standard
- Gas Type: O2, AIR, VAC, N2O, N2, CO2 are available
- O.D. 10 mm copper pipeline
- ISO32 color-coded for easy gas identification
- 100% tested for flow, leaks and cleaned
- Wall mounting, Bead Head mounting and Pendant mounting available
Model
| Ordering Information | |||
| Gas Service | Wall mounting | Bedhead (console) mounting | Pendant mounting |
| OXYGEN | DN-WAL-OXY | DN-CON-OXY | DN-PA-OXY |
| MEDICAL AIR | DN-WAL-MA | DN-CON-MA | DN-PA-MA |
| MEDVAC | DN-WAL-VAC | DN-CON-VAC | DN-PA-VAC |
| NITROUS OXIDE | DN-WAL-N2O | DN-CON-N2O | DN-PA-N2O |
| NITROGEN | DN-WAL-NIT | DN-CON-NIT | DN-PA-NIT |
| CARBON DIOXIDE | DN-WAL-CO2 | DN-CON-CO2 | DN-PA-CO2 |
