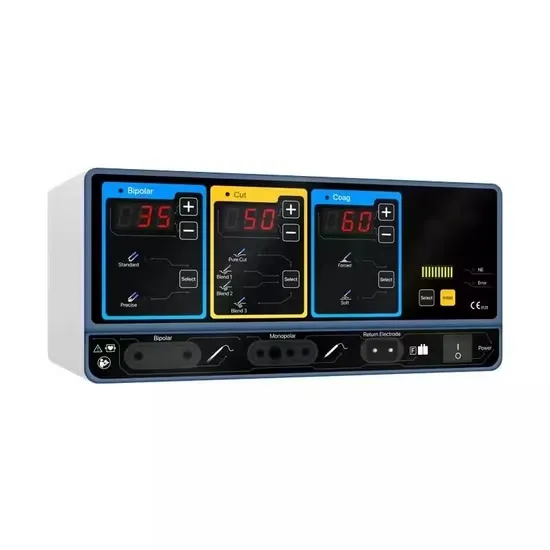

The Medical Advanced 300W Electrosurgical Generator is a high-performance surgical diathermy system designed for precise cutting and coagulation in a wide range of surgical procedures. Featuring intelligent microprocessor control, advanced tissue monitoring technology, and multiple operating modes, this electrosurgical unit delivers reliable performance, enhanced patient safety, and excellent surgical efficiency. It is suitable for hospitals, operating theatres, surgical centers, and specialty clinics.
Features
- High-performance 300W electrosurgical generator
- Multiple cutting and coagulation modes
- Monopolar and bipolar operation
- Intelligent tissue monitoring technology
- Patient Return Electrode Monitoring (PREM)
- Microprocessor-controlled system
- Waterproof touch control panel
- Bright LED digital display
- Compact, lightweight, and space-saving design
- Stable and accurate power output
- Audible and visual safety alarms
- Compatible with endoscopy procedures
- Supports Argon Plasma Coagulation systems
- Compatible with smoke evacuation systems
- Designed for continuous clinical operation
- Easy operation with ergonomic controls
- High safety standards for patients and clinicians
- Reliable performance for demanding surgical environments
Key Attributes
- Product Type: Electrosurgical Generator
- Maximum Output Power: 300W
- Technology: High-Frequency Electrosurgery
- Display: LED Digital Display
- Control System: Microprocessor Controlled
- Operating Modes: Monopolar Cut, Monopolar Coagulation, Bipolar Coagulation
- Safety System: Patient Return Electrode Monitoring (PREM)
- Design: Compact & Lightweight
- Application: General Surgery, Gynecology, Endoscopy, Urology and Other Surgical Procedures
- Power Supply: AC 220V ±22V
- Certification: ISO 13485
- Warranty: 1 Year
Technical Specifications
| Specification | Details |
|---|---|
| Model | CCO-ES120L |
| Maximum Cut Output | 200W |
| Blend 1 Output | 200W |
| Blend 2 Output | 150W |
| Monopolar Coagulation | 1–120W |
| Bipolar Coagulation | 100W |
| Operating Voltage | 220V ±22V |
| Maximum Input Power | 1400VA |
| Monopolar Load | 300Ω |
| Bipolar Load | 100Ω |
| High Frequency Leakage Current | <150mA |
| Operating Temperature | 5°C to 40°C |
| Relative Humidity | <80% |
| Storage Temperature | -40°C to 55°C |
| Operating Pressure | 700–1060 hPa |
| Storage Pressure | 500–1060 hPa |
| Dimensions | 350 × 320 × 100 mm |
| Net Weight | 6.2 kg |
| Gross Weight | 11.5 kg |
