Description

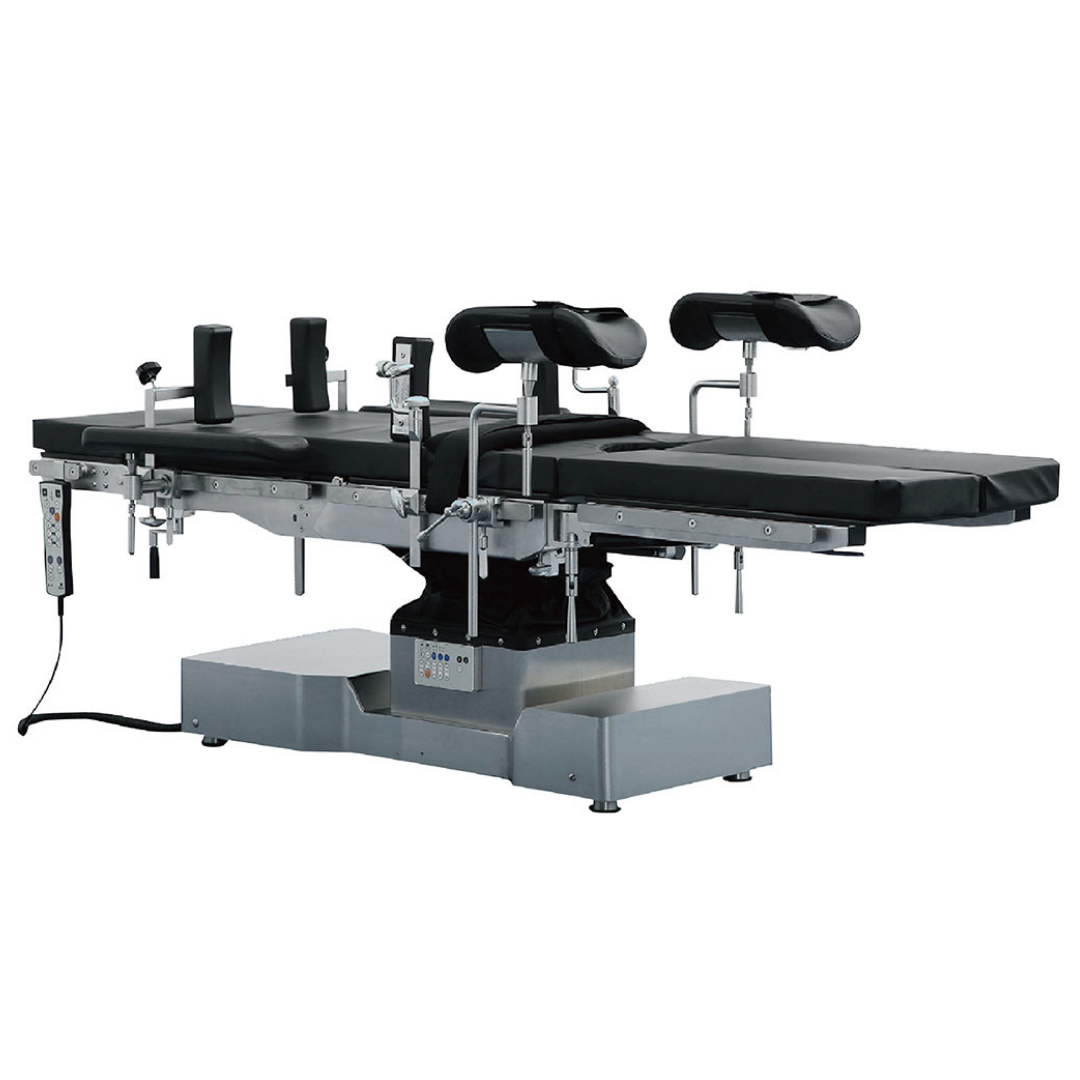

The HL-B320A Electro-hydraulic Operating Table is a versatile surgical platform designed to support a wide range of operating procedures. Its longitudinal sliding system provides convenient access for C-arm imaging, while the large imaging space makes it suitable for cardiovascular and spinal surgery.
The table combines multiple positioning options with a dual control system for convenient operation. Its 304 stainless steel construction, floor-locking system, high-density waterproof mattress, detachable leg and head plates, and optional wireless remote control provide durability, stability, comfort, and efficient workflow in modern operating rooms.
Features
- Longitudinal slide for convenient C-arm access
- Large imaging space for cardiovascular and spinal surgery
- X-ray translucent tabletop
- Wide range of Trendelenburg and lateral tilt positioning
- Adjustable head, back, and leg sections
- Kidney bridge elevation for surgical positioning
- One-click detachable leg and head plates
- Dual control system for convenient operation
- Floor locking control system for enhanced stability
- High-density foam mattress with waterproof PU cover
- Battery backup for continued operation
- Optional wireless remote control system
- 304 stainless steel main construction
- Suitable for a wide range of surgical procedures
Key Attributes
- Product Type: Electro-hydraulic Operating Table
- Category: Operating Tables
- Main Material: 304 Stainless Steel
- Tabletop: X-Ray Translucent
- Control System: Dual Control System
- Power Supply: 220V/110V, 50Hz/60Hz
- Battery: Yes
- Mattress: High-Density Foam with Waterproof PU Cover
- Horizontal Sliding: 350mm
- Kidney Bridge Elevation: 110mm
- Maximum Load Capacity: 250kg
- Optional Control: Wireless Remote Control
Technical Specifications
| Specification | Details |
|---|---|
| Tabletop Length | 2070mm ±50mm |
| Tabletop Width | 520mm ±50mm |
| Minimum Tabletop Height | 540mm ±10mm |
| Maximum Tabletop Height | 1040mm ±10mm |
| Trendelenburg / Reverse Trendelenburg | 25° |
| Lateral Tilt | 30° / 30° |
| Head Rest Up / Down | +45° / -90° |
| Leg Rest Up / Down | +15° / -90° |
| Leg Plate Swinging Out | 90° |
| Back Plate Up / Down | +80° / -40° |
| Kidney Bridge Elevation | 110mm |
| Horizontal Sliding | 350mm |
| X-Ray Translucent | Yes |
| Voltage | 220V / 110V |
| Frequency | 50Hz / 60Hz |
| Flex / Reflex | 220° / 110° |
| Battery | Yes |
| Mattress | High-Density Foam with Waterproof PU Cover |
| Main Material | 304 Stainless Steel |
| Maximum Load Capacity | 250kg |
| Category | Operating Tables |
