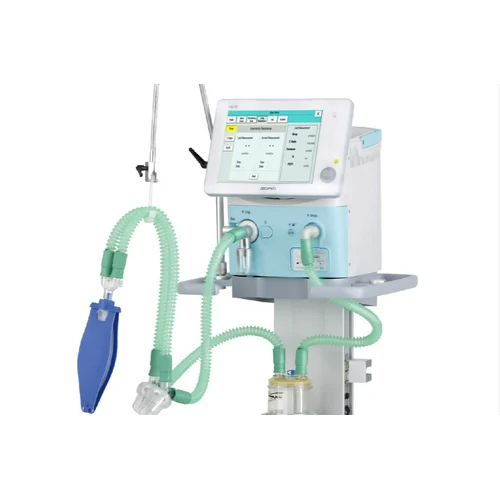

The Aeonmed VG70 ICU Ventilator is a high-performance critical care ventilator designed for adult, pediatric, and infant patients. It combines invasive and non-invasive ventilation capabilities with intelligent monitoring, advanced ventilation modes, and an intuitive touchscreen interface. The VG70 is suitable for Intensive Care Units (ICU), Emergency Departments, Operating Rooms, Recovery Units, and intra-hospital patient transport. It features a compact design, built-in turbine technology, and comprehensive respiratory monitoring to support clinicians in delivering safe and effective patient care.
Features
- 12-inch detachable TFT color touchscreen display
- Suitable for adult, pediatric, and infant patients
- Invasive and non-invasive ventilation support
- Advanced ventilation modes including PRVC and BIVENT/APRV
- Built-in turbine for enhanced mobility
- Comprehensive lung mechanics monitoring
- Real-time waveform and loop monitoring
- FiO₂ and ETCO₂ monitoring support
- Intelligent leak compensation technology
- USB software upgrade capability
- Integrated alarm and safety protection system
- Compact, lightweight, and easy to transport
- Ethernet and RS-232 communication interfaces
- Battery backup for uninterrupted operation
- User-friendly interface with quick parameter adjustment
Key Attributes
- Advanced ICU Ventilator
- High-Resolution 12″ Touch Display
- Adult, Pediatric & Infant Ventilation
- Invasive & Non-Invasive Ventilation
- Intelligent Respiratory Monitoring
- Portable ICU Solution
- Reliable Performance
- Easy Clinical Operation
- Low Maintenance Design
- Long Battery Backup
- High Safety Standards
- Hospital Grade Medical Device
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Aeonmed VG70 ICU Ventilator |
| Brand | Aeonmed |
| Model | VG70 |
| Type | ICU Ventilator |
| Display | 12″ TFT Color Detachable Touchscreen |
| Tidal Volume | 20–2000 ml |
| Respiratory Rate | 1–80 bpm |
| FiO₂ Range | 21%–100% |
| PEEP | 0–35 cmH₂O |
| I:E Ratio | 1:10 to 4:1 |
| Inspiratory Time | 0.2–9 seconds |
| Pressure Support | 0–70 cmH₂O |
| Peak Inspiratory Pressure | 5–70 cmH₂O |
| Flow Trigger | 0.5–20 L/min |
| Oxygen Supply | 0.28–0.6 MPa |
| Power Supply | AC 100–240V, 50/60Hz |
| Battery Backup | Approximately 2–4 Hours |
| Communication | USB, Ethernet, RS-232 |
| Gas Monitoring | FiO₂, ETCO₂ |
| Main Unit Weight | 12.5 kg |
Ventilation Modes
- VCV (Volume Controlled Ventilation)
- PCV (Pressure Controlled Ventilation)
- PRVC
- SIMV (VCV) + PSV
- SIMV (PCV) + PSV
- SIMV (PRVC) + PSV
- SPONT / CPAP + PSV
- BIVENT / APRV + PSV
- NIV / CPAP
- NIV-T
- NIV-S/T
