Description

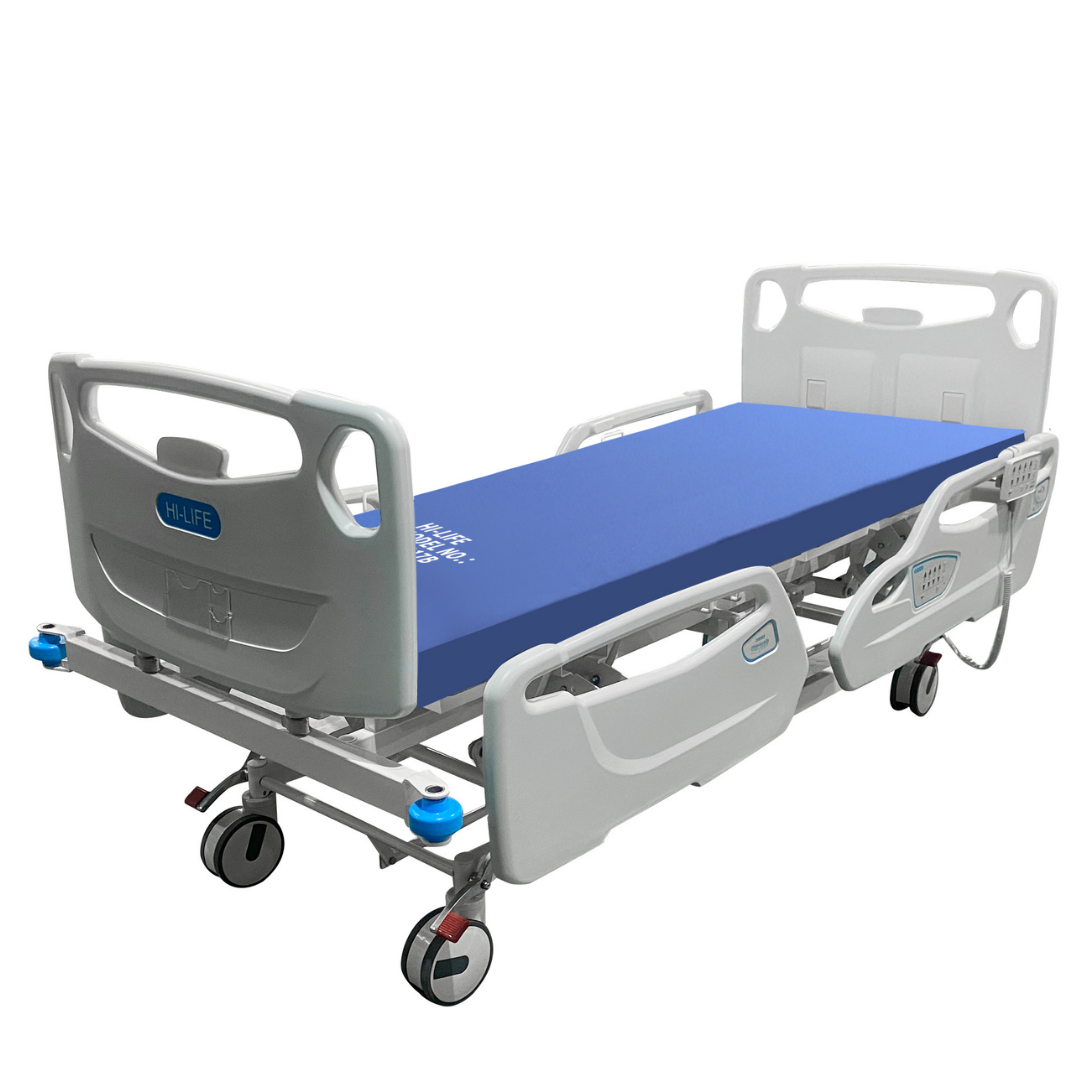

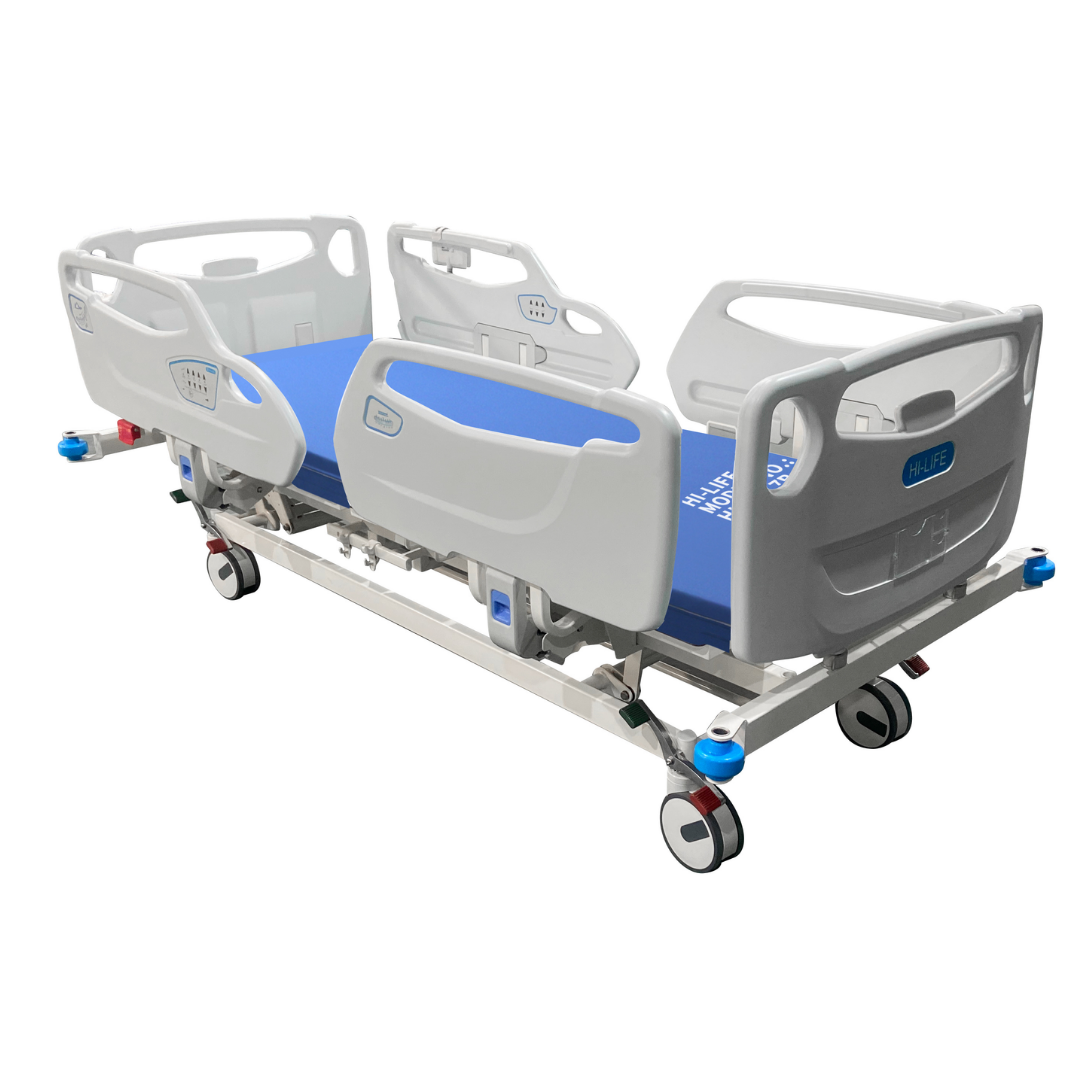

The HL-B117B TYPE I Electric Hospital Bed is designed to support safe, efficient, and comfortable patient care in hospital and ICU environments. Its steel structure with an epoxy-coated finish provides a durable foundation, while the removable ABS head and foot boards make cleaning, disinfection, and CPR access more convenient.
The bed features an X-ray-translucent HPL sleeping surface and four adjustable ABS side rails designed to comply with IEC/EN 60601-2-52. Integrated controls on both sides of the side rails allow nursing staff and patients to operate key functions, while angle indicators provide clear positioning references.
Electric functions include backrest, leg section, Hi-Low, Trendelenburg, reverse Trendelenburg, vascular position, and automatic contour adjustment. One-button electric CPR quick release and a manual CPR handle provide rapid back-section release during emergencies.
The 150mm casters feature a central braking system with brake pedals at all four corners for flexible movement and secure positioning. Protective round bumpers are fitted at the bed corners. The supplied 15cm high-density foam mattress has a waterproof PU cover with antibacterial and fire-retardant properties and a three-layer construction designed for patient comfort.
Features
- Removable ABS head and foot boards
- CPR-ready design
- X-ray-translucent HPL sleeping surface
- Four adjustable ABS side rails
- IEC/EN 60601-2-52 compliant side-rail design
- Integrated side-rail controls for staff and patients
- Side-rail angle indicators
- Electric function lock/unlock switch
- Hand controller with locking system
- Electric backrest and leg section adjustment
- Electric Hi-Low adjustment
- Trendelenburg and reverse Trendelenburg positioning
- Vascular position and automatic contour function
- One-button electric CPR quick release
- Manual CPR handle for back-section release
- 150mm casters with central braking system
- Protective round corner bumpers
- 250kg load capacity
- IPX4 protection for electrical system
- IEC 60601-1 compliant
Key Attributes
- Product Type: Electric Hospital Bed
- Model: HL-B117B TYPE I
- R/N: 102949
- Category: ICU Beds
- Sleeping Surface: L2050 × W900mm
- Construction: Steel with Epoxy-Coated Finish
- Bed Boards: Removable ABS
- Platform: HPL, X-Ray Translucent
- Side Rails: 4-Piece Adjustable ABS
- Control: Integrated Side-Rail Panels & Hand Controller
- Load Capacity: 250kg
- Casters: 150mm with Central Braking
- Power Supply: 110–120V, 60Hz
- Safety Standards: IEC/EN 60601-2-52 & IEC 60601-1
Technical Specifications
| Specification | Details |
|---|---|
| Sleeping Surface | L2050 × W900mm |
| Back Section | 0–70° |
| Leg Section | 0–25° |
| Hi-Low Movement | 470–760mm |
| Auto Contour Function | Yes |
| Trendelenburg | 12° |
| Reverse Trendelenburg | 12° |
| Vascular Position | Yes |
| CPR Release | Electric One-Button & Manual Handle |
| Bed Head & Foot Boards | Removable ABS |
| Sleeping Surface | HPL, X-Ray Translucent |
| Side Rails | 4-Piece Adjustable ABS |
| Casters | 150mm |
| Braking System | Central Braking with Corner Brake Pedals |
| Protective Bumpers | 4 |
| Load Capacity | 250kg |
| Electrical Protection | IPX4 |
| Power Supply | 110–120V, 60Hz |
| Safety Standards | IEC/EN 60601-2-52 & IEC 60601-1 |
Standard Accessories
- Mattress: 15cm high-density, three-layer foam with waterproof, antibacterial, and fire-retardant PU cover
- IV Poles: 2 stainless steel adjustable poles with two hooks
- Drainage Bag Hooks: 2 pieces
- IV Pole Sockets: 4 pieces with fastening system
- Orthopedic Traction Holders: 4 pieces
- Hand Controller: 1 piece
- Protective Bumpers: 4 pieces
