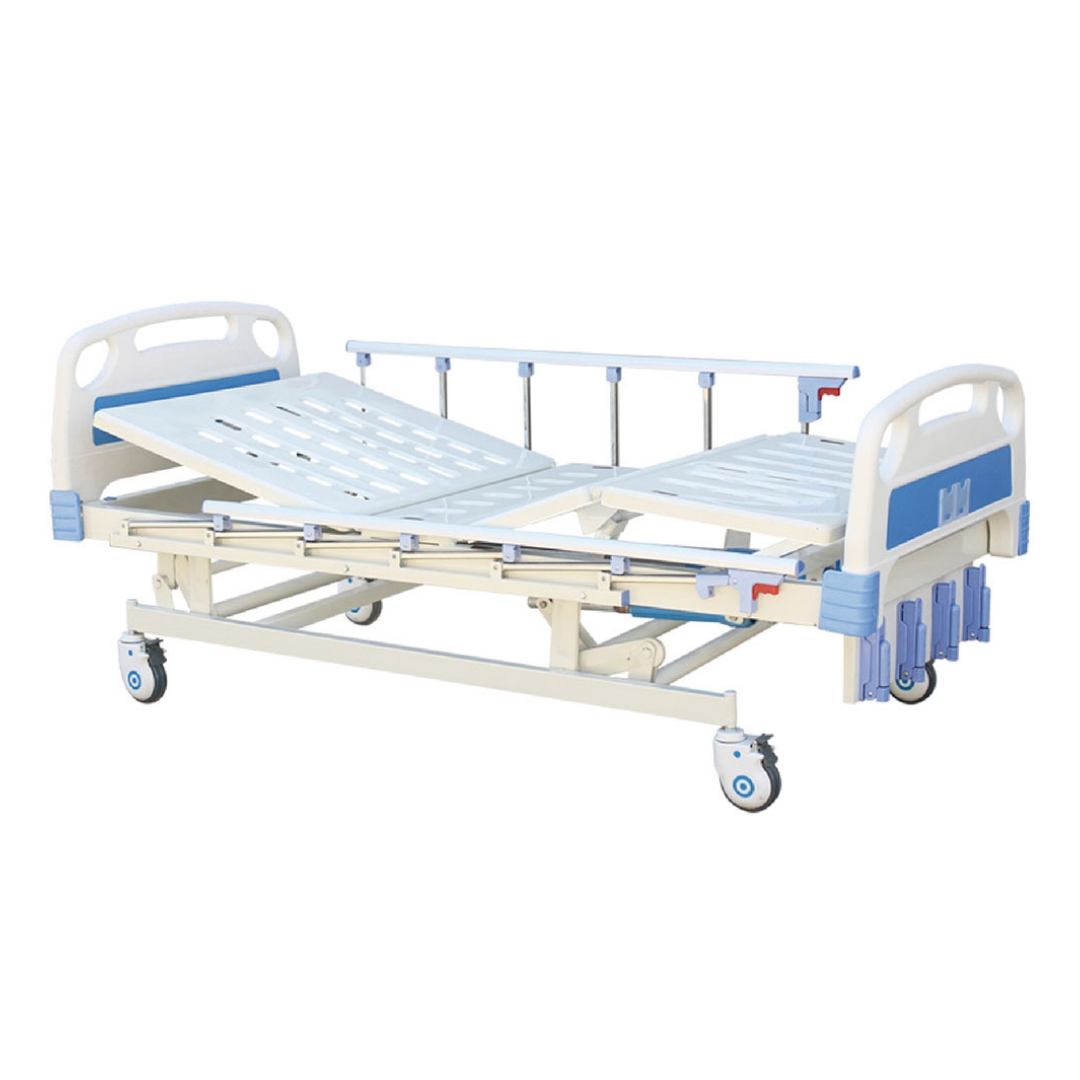

The HL-A143A Manual Hospital Bed is a practical and versatile hospital bed designed to support patient comfort, safe positioning, and efficient daily care. Its four-crank manual adjustment system allows healthcare staff to easily adjust the backrest, legrest, bed height, and Trendelenburg positions according to the patient’s needs. The bed can be equipped with optional ABS side rails and central-braking castors for enhanced safety and convenient movement.
Key Features
- Four-crank manual adjustment system for smooth and flexible positioning.
- Adjustable backrest from 0° to 70° for improved patient comfort and clinical access.
- Adjustable legrest from 0° to 40° to support different patient positions.
- Manual height adjustment from 500 to 700 mm.
- Trendelenburg and reverse Trendelenburg adjustment of ±12°.
- Optional ABS side rails provide additional patient protection.
- Optional central-braking castors allow convenient movement and secure positioning.
- Suitable for routine hospital care and patient recovery.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A143A |
| Bed Type | Manual Hospital Bed |
| Backrest Adjustment | 0°–70° |
| Legrest Adjustment | 0°–40° |
| Height Adjustment | 500–700 mm |
| Trendelenburg / Reverse Trendelenburg | ±12° |
| Side Rails | ABS, Optional |
| Castors | Central Braking, Optional |
Ideal For
The HL-A143A is suitable for general hospital wards, patient rooms, clinics, nursing facilities, and healthcare environments requiring a dependable manually adjustable hospital bed.
