Description:

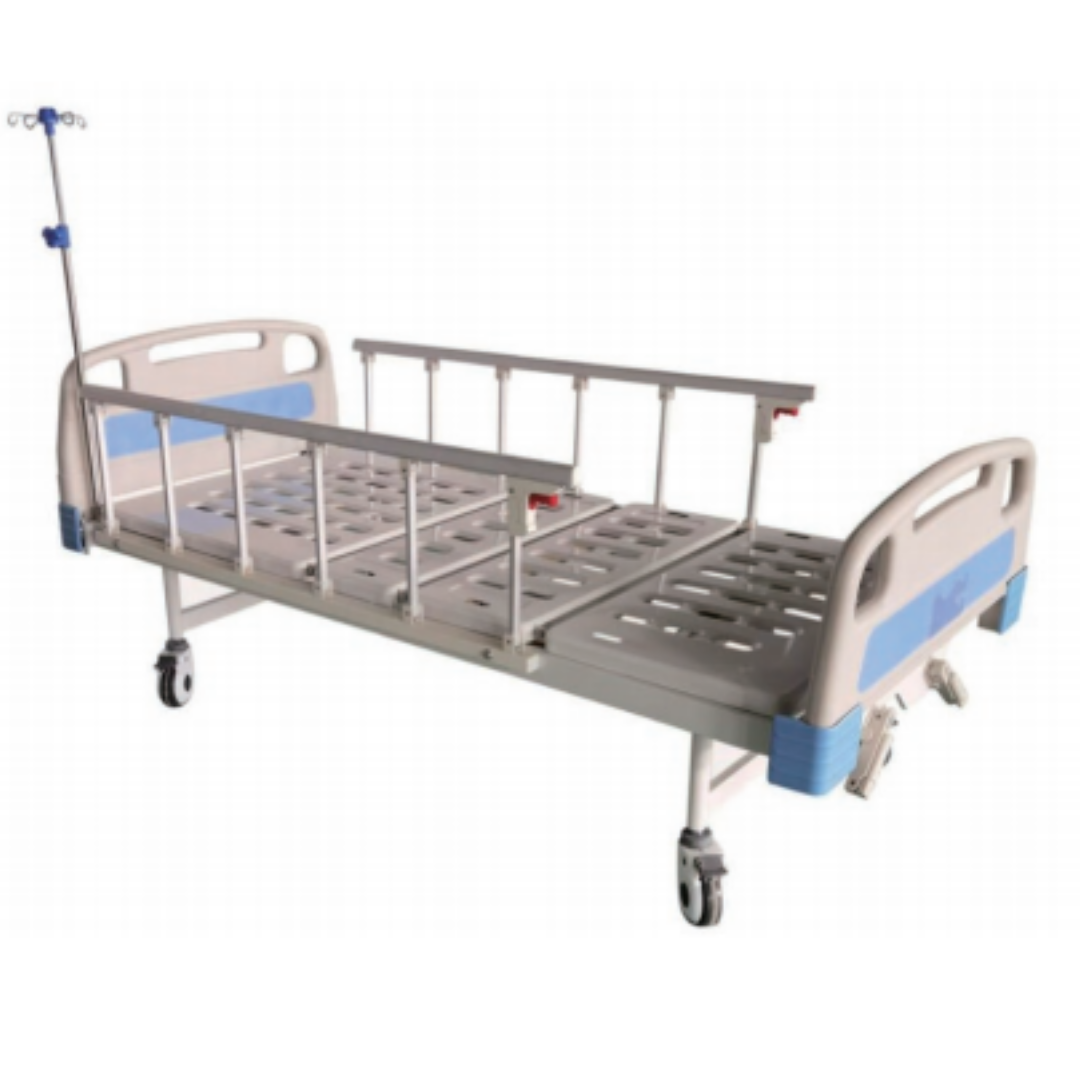

The HL-A131B Manual Hospital Bed is designed for reliable patient care in general hospital wards and recovery areas. Its heavy-duty mild steel frame provides excellent durability and stability, while the thermal spray coated surface offers high resistance to corrosion and supports long-term hospital use.
The four-section mattress platform is manufactured from cold-rolled steel sheets with ventilation holes to promote airflow around the mattress. The adjustable backrest and knee section allow caregivers to position patients more comfortably according to their care requirements. Manual folding cranks are conveniently located beneath the foot panel for easy operation, while the foot section can be adjusted using a pawl mechanism.
For patient safety, the bed is equipped with adjustable and foldable side rails featuring a self-locking mechanism when raised. Removable ABS head and foot boards provide convenient access during CPR and routine nursing care, while corner bumpers help protect the bed and surrounding equipment from impact.
The four 125mm wheels are fitted with individual brakes, allowing the bed to be securely locked in place when required. With a loading capacity of over 200kg and a practical range of accessories, the HL-A131B is a dependable choice for hospitals and healthcare facilities seeking a functional manual patient bed.
Key Features
- Heavy-duty mild steel frame for strength and durability
- Thermal spray coated steel components for enhanced corrosion resistance
- Four-section cold-rolled steel mattress platform with ventilation holes
- Manual backrest adjustment from 0–75° (±5°)
- Manual knee rest adjustment from 0–45° (±5°)
- Folding manual cranks positioned beneath the foot panel
- Foot section adjustable with pawl mechanism
- Removable ABS head and foot boards for convenient CPR access
- Foldable and adjustable side rails with self-locking system
- Corner bumpers for added protection
- Four sturdy 125mm casters, each with an individual brake
- Loading capacity of more than 200kg
- Includes mattress stopper, IV pole sockets and drainage hooks
- Optional foam mattress with removable and washable cover
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A131B |
| Type | Manual Hospital Bed |
| Category | Universal Beds |
| Overall Dimension | L2150 × W940 × H500mm (±50mm) |
| Sleeping Surface | L1950 × W900mm |
| Backrest Adjustment | 0–75° (±5°) |
| Knee Rest Adjustment | 0–45° (±5°) |
| Caster Diameter | 125mm |
| Loading Capacity | >200kg |
| Mattress Platform | Four-section cold-rolled steel sheet with ventilation holes |
| Bed Frame | Heavy-duty mild steel tube |
| Side Rails | Adjustable and foldable with self-locking system |
| Head & Foot Boards | Removable ABS |
Standard Accessories
- Mattress stopper
- IV pole sockets
- Drainage hooks
- IV pole
- Optional foam mattress with removable and washable cover
Ideal For
The HL-A131B is suitable for general hospital wards, patient recovery rooms, nursing facilities, clinics, and healthcare institutions requiring a durable and easy-to-operate manual hospital bed.
