Description

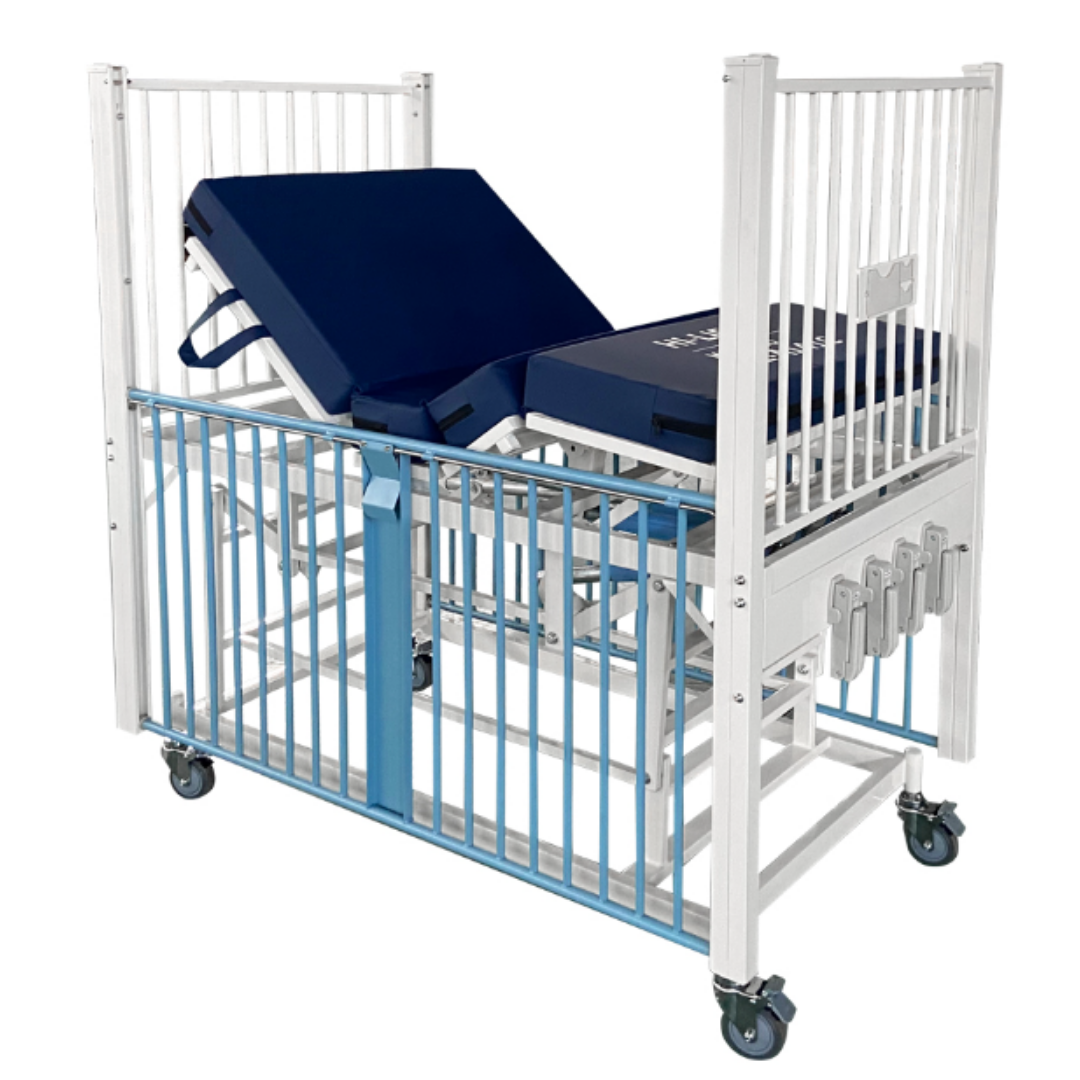

The HL-A141C Pediatric Bed is a purpose-built hospital bed designed to support the comfort, positioning, and safety needs of children during hospital care and recovery. The bed features a durable steel frame with a lead-free, anti-corrosive epoxy paint finish for reliable use in healthcare environments.
Manual adjustment allows caregivers to position the bed for different clinical requirements, including Fowler, leg elevation, Trendelenburg, and reverse Trendelenburg positions. The adjustable side rails provide additional protection while allowing convenient access to the patient.
With a dedicated pediatric sleeping area, comfortable hospital-grade mattress, telescopic IV pole, and smooth-rolling thermoplastic wheels, the HL-A141C offers a practical solution for pediatric patient care.
Key Features
- Durable Steel Construction: Strong steel cradle structure with lead-free, anti-corrosive epoxy paint for long-lasting hospital use.
- Multiple Manual Positions: Supports Fowler adjustment from 0° to 70°, leg elevation from 0° to 35°, and Trendelenburg/reverse Trendelenburg from 0° to 12°.
- Adjustable Side Rails: Three-position adjustable side rail system with a 75 cm rail height to provide enhanced patient protection.
- Safe Rail Spacing: 6 cm spacing between the rails helps provide a secure enclosure for pediatric patients.
- Manual Positioning Handles: Convenient manual handles allow caregivers to adjust the bed positions.
- Pediatric Sleeping Area: Useful sleeping dimensions of 75 cm wide × 139 cm long are designed specifically for pediatric care.
- Hospital-Grade Mattress: Includes a minimum 10 cm thick foam mattress with a waterproof, tear-resistant, fire-retardant cover suitable for hospital environments.
- Easy Mattress Handling: Handles on both sides make the mattress easier to move and handle when required.
- Telescopic IV Pole: Supplied with a telescopic IV pole and dedicated coupling point for convenient infusion support.
- Easy Mobility: Four 12.5 cm thermoplastic wheels with two brakes allow convenient movement and positioning.
- Quality Hardware: High-quality 304 stainless steel screws and washers provide additional durability and corrosion resistance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A141C |
| Category | Pediatric Beds |
| Construction | Steel |
| Surface Finish | Lead-free, anti-corrosive epoxy paint |
| Fowler Adjustment | 0°–70° |
| Leg Elevation | 0°–35° |
| Trendelenburg / Reverse Trendelenburg | 0°–12° |
| Side Rail Height | 75 cm |
| Side Rail Adjustment | 3-position adjustable |
| Rail Spacing | 6 cm |
| Sleeping Area | 75 × 139 cm |
| Bed Surface Height | 90 cm without mattress |
| Mattress Thickness | Minimum 10 cm |
| Wheel Diameter | 12.5 cm |
| Wheels | 4 thermoplastic wheels |
| Brakes | 2 wheels with brakes |
| IV Pole | Telescopic system |
| Hardware | 304 stainless steel screws and washers |
| Color | Blue side rails with white bed structure |
Mattress Specifications
The HL-A141C comes with a pediatric foam mattress designed for comfortable hospital use. The mattress features:
- Minimum 10 cm thickness
- Waterproof PU material cover
- Anti-tear construction
- Fire-retardant treatment
- Resistance to hospital detergents
- Completely waterproof design
- Comfortable pediatric sleeping surface
Included Accessories
- Telescopic IV pole
- IV pole coupling point
- Pediatric foam mattress
- Mattress handling handles
- Four thermoplastic wheels
- Two wheel brakes
Safety & Practical Design
The HL-A141C is designed with pediatric patient safety in mind. Its elevated side rails, controlled rail spacing, stable steel frame, and braking system help provide a secure environment while allowing healthcare staff to access and move the bed conveniently.
Ideal For
The HL-A141C Pediatric Bed is suitable for:
- Pediatric hospital wards
- Children’s healthcare departments
- Pediatric clinics
- Children’s hospitals
- Patient recovery areas
- Healthcare facilities requiring dedicated pediatric beds
