Description:

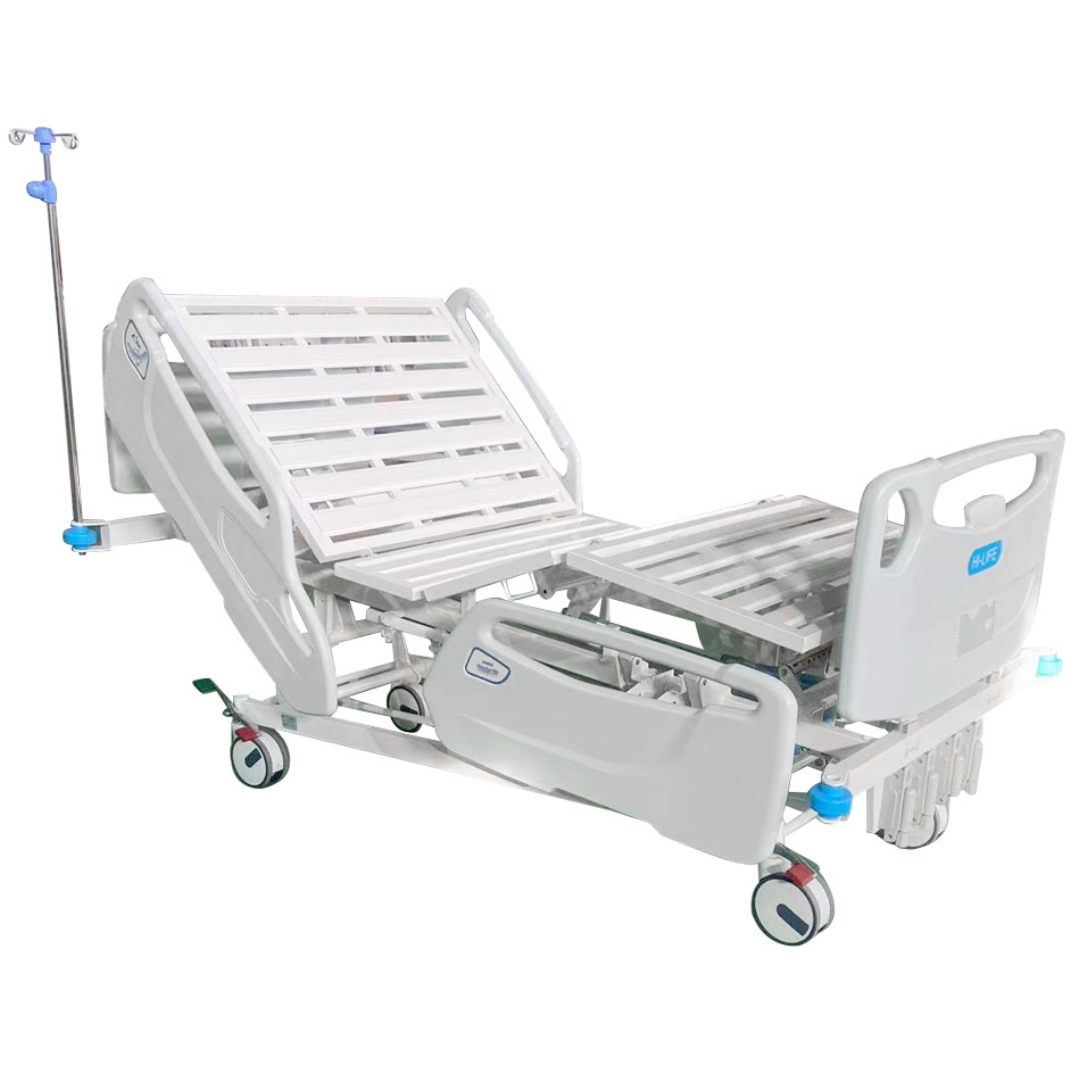

The HL-A134C Manual Hospital Bed is designed to provide dependable support, comfortable positioning, and practical functionality for hospitals, clinics, nursing facilities, and long-term patient care environments. Its robust steel construction with a lead-free epoxy paint finish provides resistance to hospital disinfectants and detergents, making it suitable for regular cleaning and maintenance.
The four-crank manual adjustment system provides multiple positioning options, including Fowler/backrest adjustment from 0° to 65°, legrest adjustment from 0° to 40°, manual foot-section adjustment, and Trendelenburg and reverse Trendelenburg positioning of ±12°. The bed height can also be manually adjusted from 47 cm to 74 cm, excluding mattress height.
The bed features a 204 × 90 cm mattress platform made from steel strips with an epoxy-coated surface. Hidden non-removable folding cranks provide convenient operation while maintaining a clean and organized appearance.
For patient safety, the bed includes fixed ABS side railings with anti-entrapment protection, detachable ABS head and foot boards, welded patient restraint points, and corner bumpers. Four 150 mm castors with a central braking system provide convenient movement and secure positioning.
The HL-A134C also includes stainless steel IV poles, drainage bag hooks, orthopedic traction accessory mounting points, and a 15 cm hospital-grade foam mattress with a waterproof, antibacterial, fire-retardant PU cover.
Key Features:
- Four-crank manual adjustment system
- Backrest adjustment: 0°–65°
- Legrest adjustment: 0°–40°
- Manual foot-section adjustment
- Trendelenburg/reverse Trendelenburg: ±12°
- Manual height adjustment: 47–74 cm
- Durable steel frame with lead-free epoxy coating
- Fixed ABS side rails with anti-entrapment system
- Detachable ABS head and foot boards
- 150 mm castors with central braking system
- Stainless steel IV poles with two hooks each
- Patient restraint devices integrated into the bed platform
- Drainage bag hooks on both sides
- Orthopedic traction accessory mounting holes
- Corner bumpers for additional protection
- 220 kg maximum loading capacity
- High-quality 304 stainless steel screws and washers
Technical Specifications:
| Specification | Details |
|---|---|
| Model No. | HL-A134C |
| Bed Type | Four-Crank Manual Hospital Bed |
| Mattress Platform | 204 × 90 cm |
| Backrest | 0°–65° |
| Legrest | 0°–40° |
| Trendelenburg | ±12° |
| Height Adjustment | 47–74 cm |
| Castor Diameter | 150 mm |
| Maximum Load Capacity | 220 kg |
| Mattress Thickness | 15 cm |
| Frame Material | Steel |
| Bed Rail Material | ABS |
| Hardware | 304 Stainless Steel |
| Mattress Cover | Waterproof PU |
Standard Accessories:
- 2 telescopic stainless steel IV poles with 2 hooks each
- Drainage bag hooks on both sides
- Patient restriction devices
- Orthopedic traction accessory mounting holes
- Corner bumpers
- 15 cm hospital-grade foam mattress
- Waterproof PU mattress cover with antibacterial and fire-retardant treatment
