Full Product Description

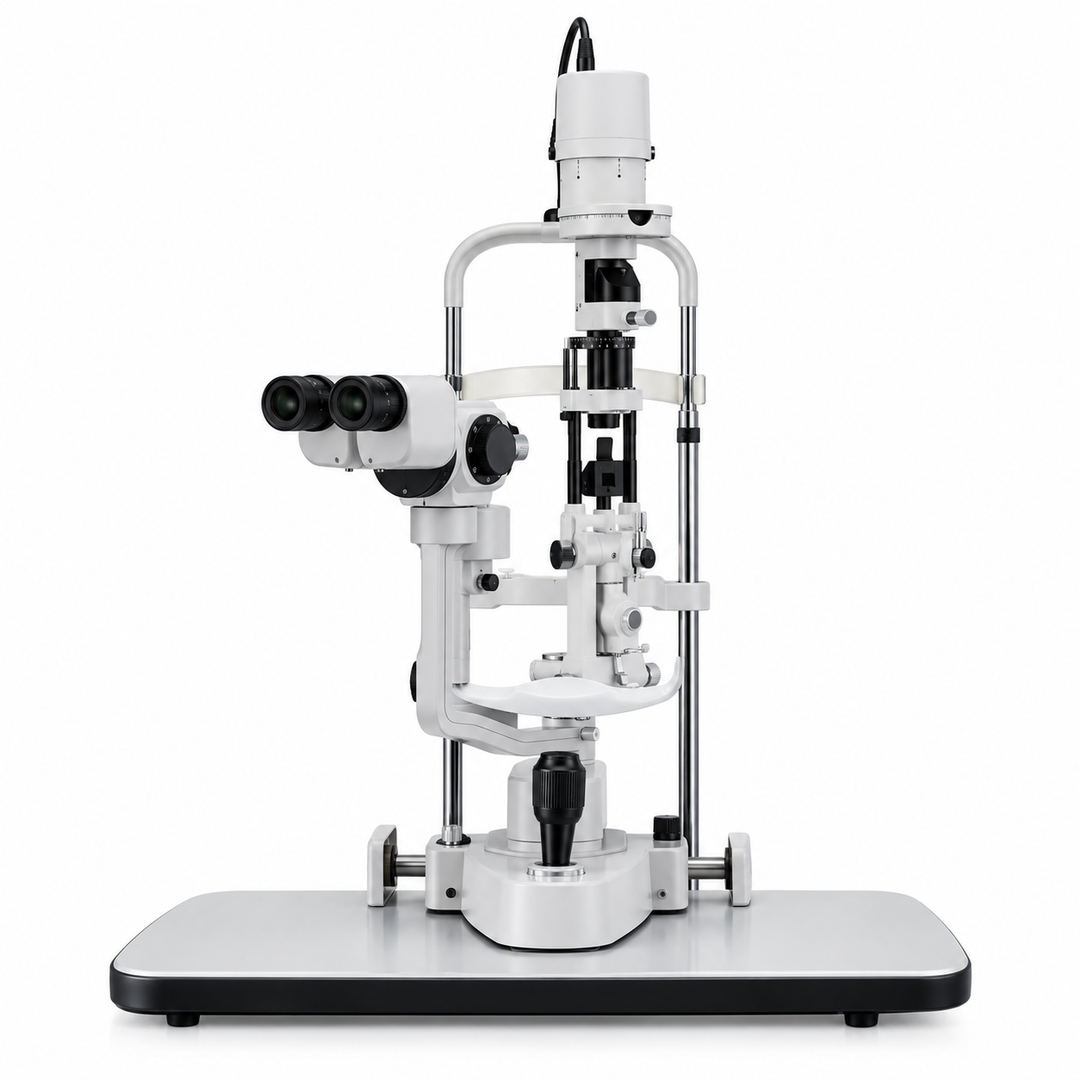

The FTLLXD-2ER Slit Lamp is designed for precise ophthalmic examination of the anterior segment of the eye. Its Galileo parallel optical system provides clear stereoscopic observation, while the five-step magnification system allows the examiner to switch between 6x, 10x, 16x, 25x, and 40x magnification. The slit width and slit length are adjustable for flexible illumination control, and the multiple aperture sizes support different examination requirements. Adjustable illumination angles and integrated heat-absorbing, gray, red-free, and cobalt-blue filters help support a wide range of clinical observation techniques.
Key Features
• Professional ophthalmic slit lamp microscope
• Galileo parallel optical system
• Five-step magnification system
• Magnification: 6x / 10x / 16x / 25x / 40x
• 12.5x eyepiece
• Adjustable slit width and slit length
• Multiple aperture diameter settings
• Adjustable slit angle
• Multiple illumination-angle settings
• Heat-absorbing filter
• Gray filter
• Red-free green filter
• Cobalt-blue filter
• Adjustable interpupillary distance
• Suitable for routine anterior segment examination
Specifications
Model: FTLLXD-2ER
Product Type: Slit Lamp Microscope
Optical Type: Galileo Parallel Style
Magnification Change: Five Magnifications
Eyepiece: 12.5x
Total Magnification: 6x / 10x / 16x / 25x / 40x
Field of View at 6x: 33mm
Field of View at 10x: 20mm
Field of View at 16x: 13mm
Field of View at 25x: 8mm
Field of View at 40x: 5mm
Interpupillary Distance: 55–75mm
Eyepiece Adjustment Range: -8D to +8D
Magnification Factor: 0.79x
Slit Width: 0–14mm
Slit Length: 1–14mm
Aperture Diameters: Ø14mm / Ø10mm / Ø5mm / Ø2mm / Ø1mm / Ø0.2mm
Slit Angle: 0–180°
Illumination Angles: 0° / 5° / 10° / 15° / 20°
Filters: Heat Absorption / Gray / Red-Free Green / Cobalt Blue
Bulb: 12V, 50W Halogen Bulb
Application: Anterior Segment Examination / Ophthalmic Diagnosis
Recommended Use: Eye Clinic / Ophthalmology Department / Diagnostic Center
