Full Product Description

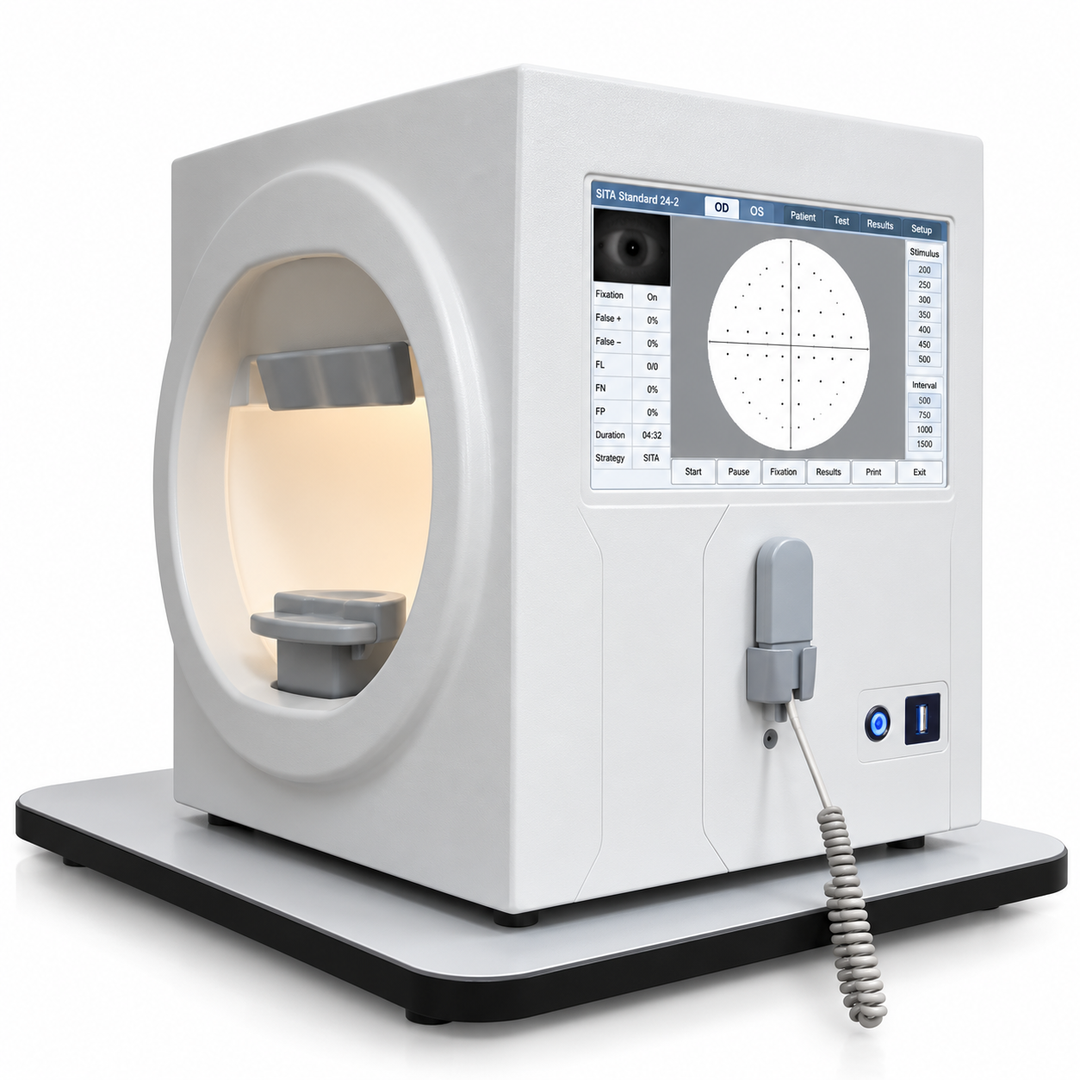

The FTLBIO100A Automated Perimeter is designed for detailed visual field assessment in ophthalmology clinics, hospitals, and diagnostic centers. The system provides a full 90° inspection range with a 30cm examination distance and uses rear-projection stimulus technology with a 2mm stimulus diameter. Multiple luminance levels, stimulus durations, and interval settings allow flexible testing according to different examination requirements. Its infrared real-time pupil localization and fixation monitoring system helps monitor patient fixation throughout the examination, supporting consistent and reliable visual field testing.
Key Features
• Professional automated visual field perimeter
• Full 90° inspection range
• 30cm inspection distance
• Rear-projection stimulus system
• 2mm stimulus diameter
• 31 adjustable stimulus luminance levels
• Luminance range: 2.5–1000 asb
• 7 adjustable stimulus duration settings
• Stimulus duration: 200–500ms
• 11 adjustable stimulus interval levels
• Stimulus interval: 500–1500ms
• Infrared real-time fixation monitoring
• Real-time pupil localization
• Suitable for glaucoma and visual field assessment
• Designed for professional ophthalmic use
Specifications
Model: FTLBIO100A
Product Type: Automated Perimeter / Visual Field Analyzer
Inspection Range: 90° Full-Function Perimeter
Inspection Distance: 30cm
Background Luminance: 4 asb
Stimulus Method: Rear Projection
Stimulus Diameter: 2mm
Stimulus Luminance Range: 2.5–1000 asb
Luminance Levels: 31 Adjustable Levels
Stimulus Duration: 200 / 250 / 300 / 350 / 400 / 450 / 500ms
Stimulus Duration Levels: 7
Stimulus Interval: 500–1500ms
Stimulus Interval Levels: 11 Adjustable Levels
Fixation Monitoring: Infrared Real-Time Pupil Localization
Application: Visual Field Testing / Glaucoma Assessment / Ophthalmic Screening
Recommended Use: Eye Clinic / Ophthalmology Department / Hospital / Diagnostic Center
