Full Product Description

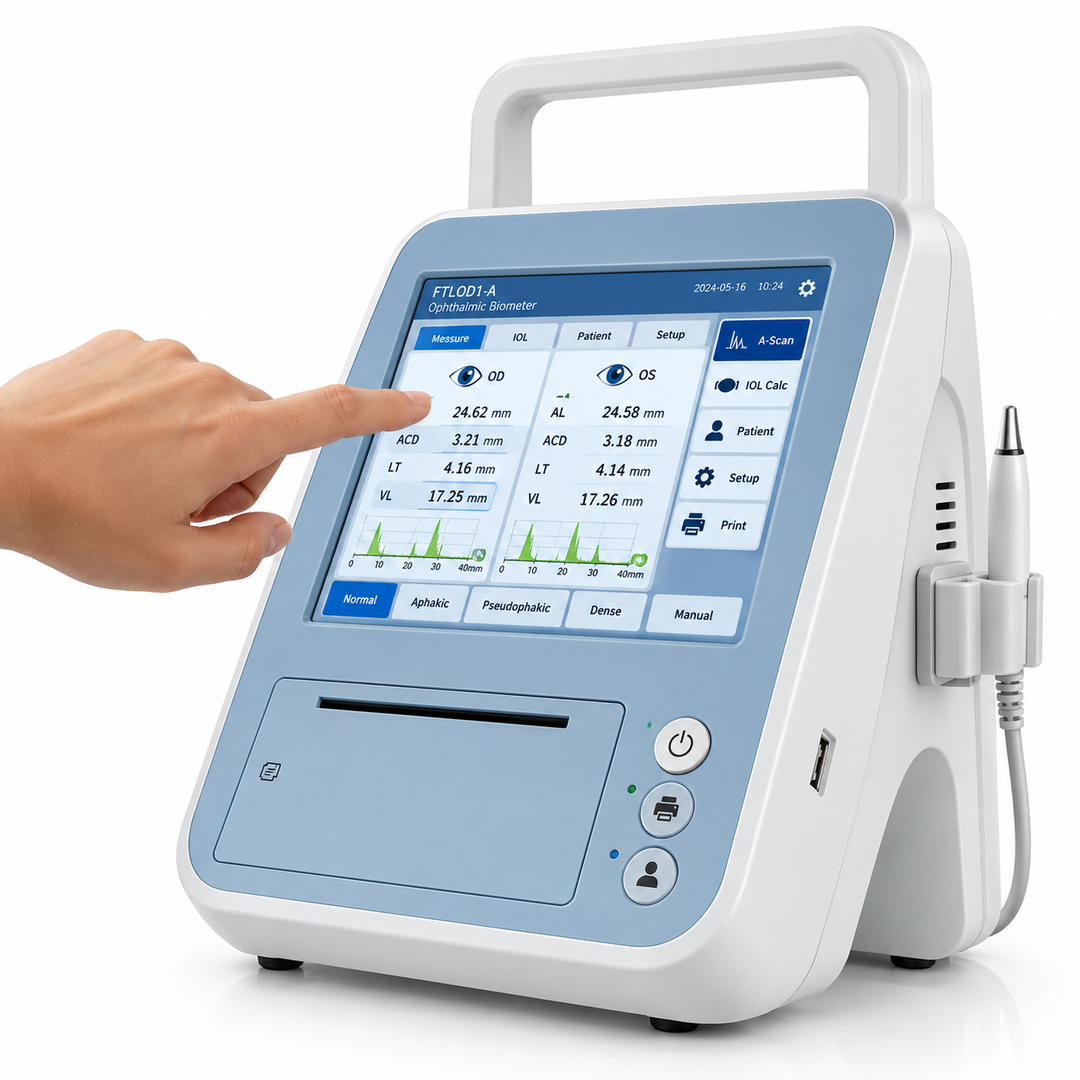

The FTLOD1-A Ophthalmic Biometer is designed for accurate ocular biometry in cataract evaluation and pre-operative ophthalmic assessment. It measures anterior chamber depth, lens thickness, vitreous length, and total axial length, while supporting both immersion and contact measurement methods. The system offers automatic and manual operation, multiple examination modes for normal, aphakic, pseudophakic, and dense cataract eyes, and a range of widely used IOL power calculation formulas. Its compact touchscreen-based design provides convenient operation for everyday clinical use.
Key Features
• Professional ophthalmic biometer
• 10MHz probe frequency
• 0.01mm measurement resolution
• Accuracy: approximately ±0.02mm
• Adjustable gain: 0–120dB
• Measures ACD, lens, vitreous, and axial length
• Automatic and manual measurement modes
• Immersion and contact measurement methods
• Multiple eye-condition examination modes
• Supports IOL power calculation
• Multiple IOL formulas included
• Compact touchscreen interface
• Suitable for cataract assessment and pre-operative biometry
Specifications
Model: FTLOD1-A
Product Type: Ophthalmic Biometer
Probe Frequency: 10MHz
Resolution: 0.01mm
Accuracy: ±0.02mm
Gain Adjustment: 0–120dB
Measurement Range: 15–35mm
Reference Velocity: 1640m/s
Measured Parameters: ACD / Lens Thickness / Vitreous Length / Axial Length
Examination Modes: Normal / Aphakic / Pseudophakic / Dense Cataract
Measurement Methods: Immersion / Contact
Operation Modes: Automatic / Manual
IOL Calculation Formulas: SRK-II / SRK-T / BINKHORST / Holladay / Hoffer-Q / Haigis
Application: Ocular Biometry / IOL Calculation / Cataract Assessment
Recommended Use: Eye Clinic / Ophthalmology Department / Diagnostic Center
