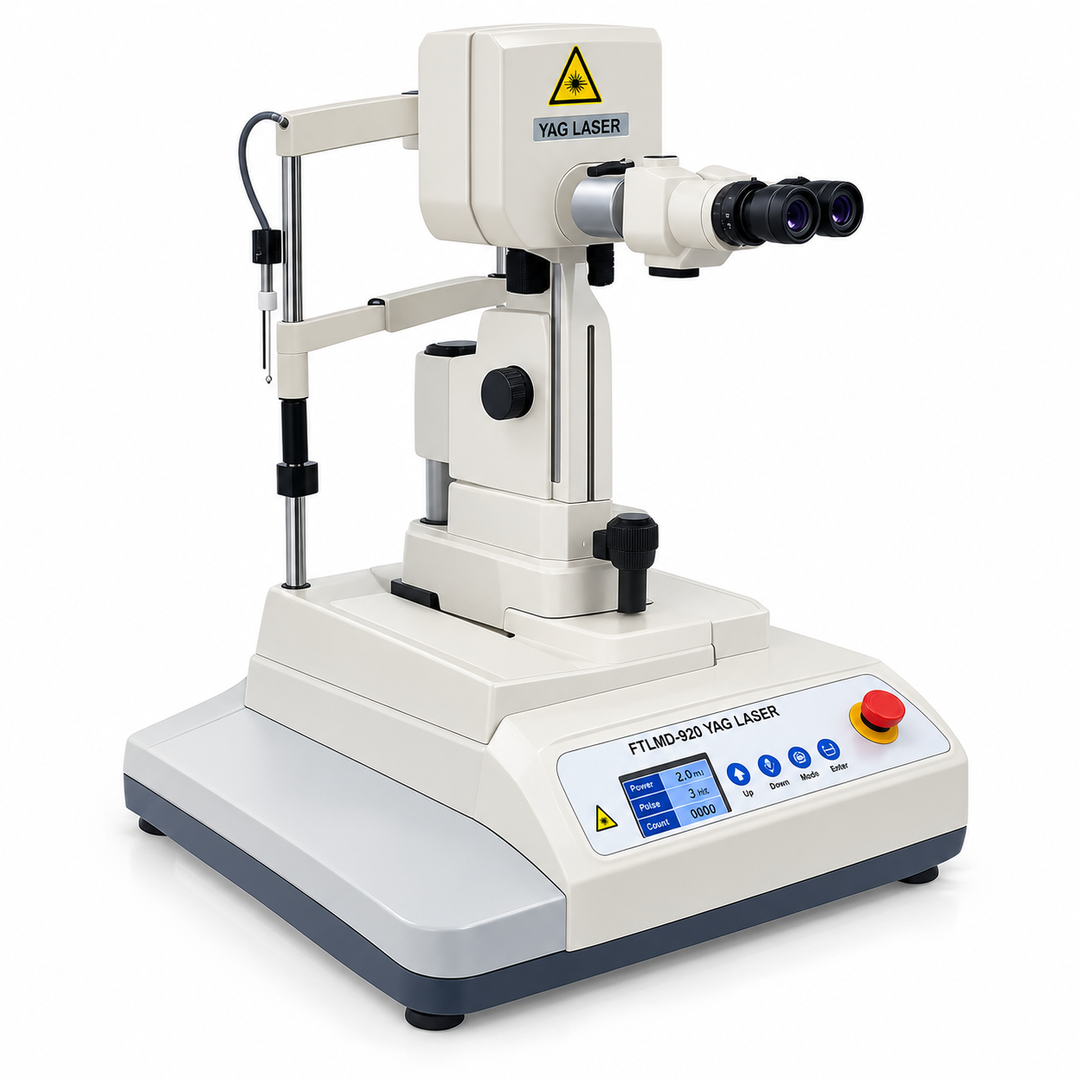

Full Product Description
The FTLMD-920 YAG Laser is designed for precision ophthalmic laser procedures requiring controlled Nd:YAG energy delivery. Operating at a wavelength of 1064nm, the system provides selectable single, double, and triple pulse modes with adjustable output energy. The integrated binocular observation system helps provide accurate visualization and targeting, while the aiming beam supports precise treatment positioning. Output energy can be adjusted through multiple levels, allowing the operator to configure treatment parameters according to procedural requirements. Its compact tabletop configuration, integrated controls, and emergency-stop function make it suitable for professional ophthalmology clinics and surgical environments.
Key Features
• Professional ophthalmic Nd:YAG laser system
• 1064nm laser wavelength
• Q-switched laser operation
• Single, double, and triple pulse modes
• Adjustable pulse energy
• Adjustable output energy regulation
• Integrated binocular observation system
• Precision aiming beam
• Compact tabletop configuration
• Integrated ophthalmic slit-lamp platform
• Emergency-stop control
• Suitable for professional ophthalmic laser procedures
Specifications
Model: FTLMD-920
Product Type: Ophthalmic YAG Laser
Laser Type: Nd:YAG
Wavelength: 1064nm
Laser Mode: Q-Switch
Pulse Output: 1 / 2 / 3 Pulse
Pulse Width: 4–5ns
Pulse Repetition Rate: 2.5Hz
Single-Pulse Maximum Output: 11mJ
Double-Pulse Maximum Output: 9mJ
Triple-Pulse Maximum Output: 28mJ
Output Energy Regulation: 100%–8%, Adjustable in 7 Steps
Cone Angle: 18°
Spot Size: 30μm
Aiming Beam Wavelength: 630–680nm
Aiming Output Power: <0.4mW
Observation System: Binocular Ophthalmic Microscope
Installation Type: Tabletop
Application: Ophthalmic YAG Laser Procedures
Recommended Use: Eye Hospital / Ophthalmology Clinic / Ophthalmic Surgical Center
