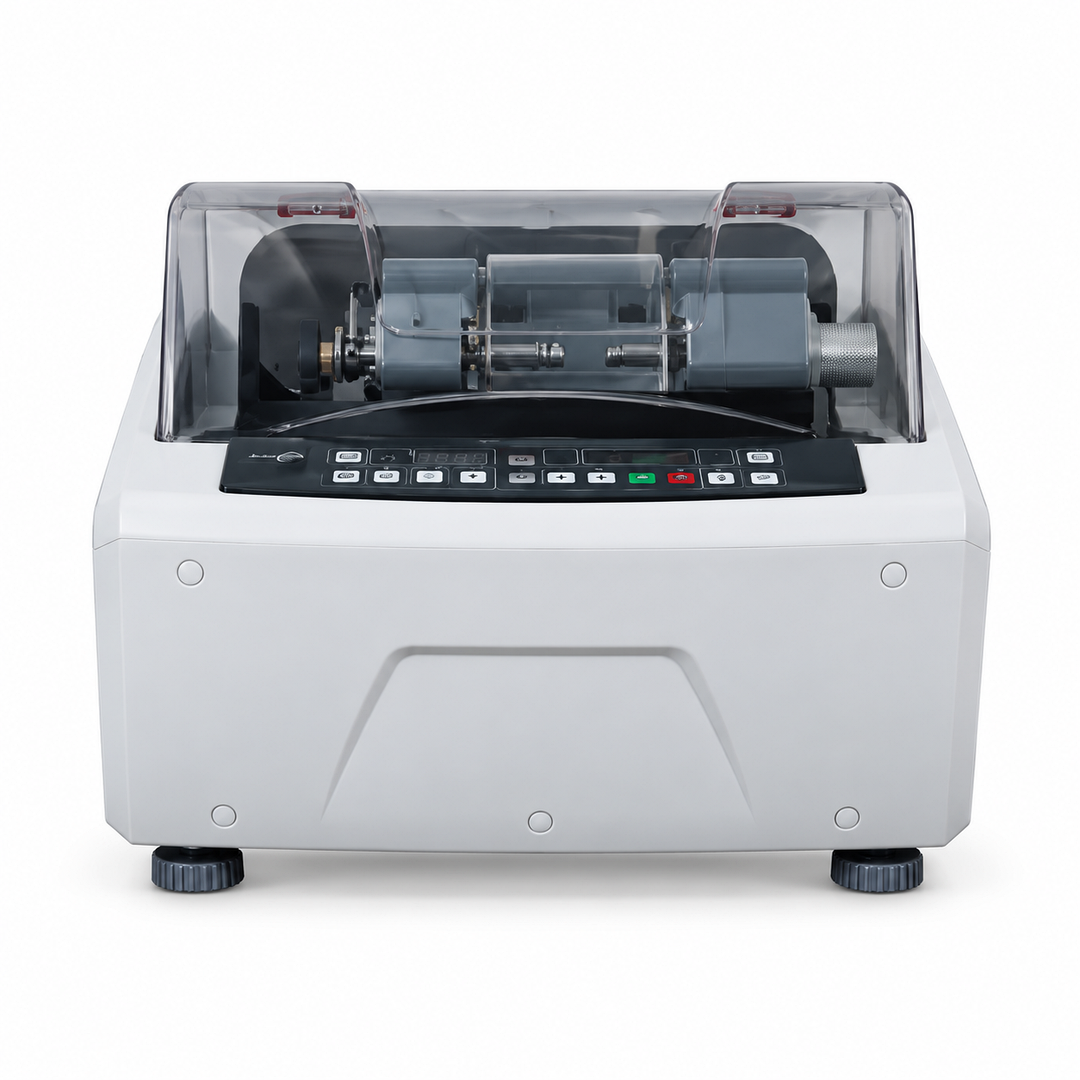

FTLENT-LE70 Automatic Lens Edger
The FTLENT-LE70 Auto Lens Edger is designed for optical workshops, eyewear laboratories, and lens-processing facilities. This machine supports the edging and shaping of compatible ophthalmic lenses, combining a compact benchtop design with practical operating features.
Key Features
- Supports CR (resin) and glass lenses.
- Compression-type template clamping system.
- Upper water outlet design.
- Adjustable measurement range from −6.0 mm to +6.0 mm.
- Fine adjustment increments of 0.05 mm per step.
- 100 mm grinding wheel diameter.
- Compact design for optical laboratory environments.
Technical Specifications
- Model: FTLENT-LE70
- Product Type: Automatic Lens Edger
- Grinding Disc Clamp Force: 0.5–0.75 MPa
- Compatible Lens Materials: CR, GL (glass)
- Water Outlet Method: Upper water outlet
- Template Clamping Method: Compression type
- Machine Dimensions: 550 × 470 × 410 mm
- Wheel Diameter: 100 mm
- Working Temperature: 5–40°C
- Lens Diameter: 22–80 mm (confirm with supplier)
- Adjustable Measurement Range: −6.0 mm to +6.0 mm
- Adjustment Step: 0.05 mm
Applications
Suitable for optical retail shops, eyewear laboratories, and professional lens-processing environments.
Note: Please confirm lens compatibility, power requirements, and included accessories with the supplier before purchase.
