Description
The Electric ICU Bed HL-B117B is a high-performance four-section hospital bed designed for intensive care units and critical patient management. Its robust steel construction, electric positioning system, and comprehensive safety features provide reliable support for both patients and healthcare professionals.
The bed features an HPL back section that is translucent to X-rays and includes an X-ray cassette tray, allowing imaging to be performed without unnecessary patient repositioning. Four electric motors control the bed’s major functions, including backrest, leg section, height, Trendelenburg, and reverse Trendelenburg positioning.
Designed with patient safety in mind, the HL-B117B includes adjustable ABS side rails with angle indicators, protective corner bumpers, central-locking casters, electric and manual CPR release, and a rechargeable backup battery. The integrated control panels and hand controller provide convenient operation with locking functions.
The bed is supplied with essential accessories including a bedside cabinet, adjustable overbed table, patient lifting pole, IV pole, mattress, drainage bag hooks, and IV pole sockets, making it a practical solution for modern ICU and hospital environments.
Features
- Four-section electric ICU hospital bed
- Heavy-duty steel structure with epoxy-coated finish
- Four high-performance motors for electric positioning
- HPL back section with X-ray-translucent design
- Integrated X-ray cassette tray
- Four-piece adjustable ABS side rails
- Side rails with backrest and Trendelenburg angle indicators
- Built-in control panels on both sides of the side rails
- Hand controller with locking system
- Electric one-button CPR quick-release function
- Manual CPR release for emergency situations
- Auto regression system for improved patient positioning
- Cardiac chair positioning function
- Electric Trendelenburg and reverse Trendelenburg adjustment
- Built-in rechargeable backup battery with charge indicator
- 150 mm casters with central braking system
- Protective round bumpers at all four corners
- 250 kg safe loading capacity
- Designed to comply with EN60601-2-52 hospital bed safety standards
- Comprehensive ICU accessories included
Key Attributes
- Product Type: Electric ICU Hospital Bed
- Model: HL-B117B
- Application: Intensive Care Units and Hospital Patient Care
- Bed Structure: Steel with Epoxy-Coated Finish
- Lying Surface: Four-Section Platform
- Back Section: HPL, X-ray Translucent
- Side Rails: Adjustable ABS
- Drive System: Four Electric Motors
- Control: Side Rail Panels & Hand Controller
- CPR: Electric One-Button & Manual CPR Release
- Trendelenburg: ±12°
- Caster Diameter: 150 mm
- Load Capacity: 250 kg
- Backup Power: Built-in Rechargeable Battery
- Safety Standard: EN60601-2-52
- Certifications: CE, FDA, ISO13485, ISO9001, FSC
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-B117B |
| Product Type | Electric ICU Bed |
| Overall Dimension | L2240 × W1000 mm |
| Bed Platform Dimension | L1970 × W850 mm |
| Back Section | 0–75° ±5° |
| Leg Section | 0–45° ±5° |
| Hi-Low Movement | 450–740 mm ±20 mm |
| Trendelenburg | ±12° |
| Reverse Trendelenburg | ±12° |
| Cardiac Chair Position | Yes |
| Auto Regression | Yes |
| CPR Function | Electric & Manual |
| X-Ray Back Section | Yes |
| X-Ray Cassette Tray | Included |
| Usable X-Ray Area | 720 × 850 mm |
| Side Rails | Four ABS Adjustable Side Rails |
| Motors | Four Electric Motors |
| Casters | 150 mm |
| Braking System | Central Braking System |
| Backup Battery | Built-in Rechargeable |
| Loading Capacity | 250 kg |
| Main Material | Steel with Epoxy-Coated Finish |
| Safety Standard | EN60601-2-52 |
| Power Supply | As specified by manufacturer |

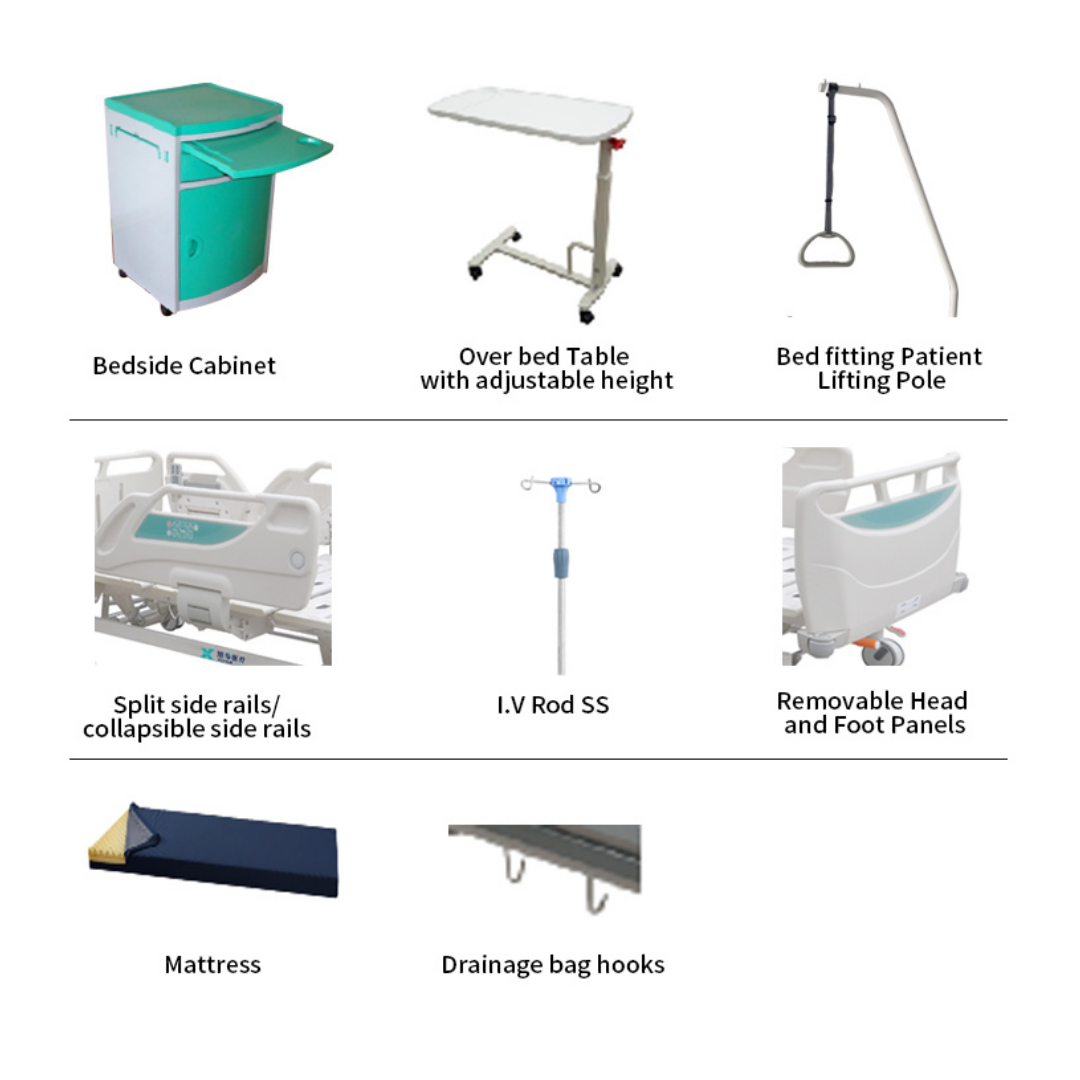

Standard Accessories
| Accessory | Details | Quantity |
|---|---|---|
| Bedside Cabinet | ABS structure, slide-out tray, drawer, bottom cabinet and towel bars | 1 pc |
| Overbed Table | ABS tabletop, epoxy-coated steel frame, gas spring height adjustment | 1 pc |
| Patient Lifting Pole | Steel, epoxy-coated finish | 1 pc |
| Split/Collapsible Side Rails | ABS plastic | 4 pcs |
| IV Rod | Stainless steel, four hooks, adjustable height | 1 pc |
| Head & Foot Panels | Removable ABS plastic | 2 pcs |
| Mattress | Ripple overlay cell type anti-decubitus active mattress, waterproof and flame-retardant cover | 1 pc |
| Drainage Bag Hooks | For hanging drainage bags | 2 pcs |
| IV Pole Sockets | For IV pole installation | 4 pcs |
Bedside Cabinet
- Dimensions: L480 × W480 × H760 mm
- ABS plastic construction
- Slide-out tray
- Drawer
- Bottom cabinet
- Towel bars on both sides
- Four casters
- Two casters with brakes
Adjustable Overbed Table
- Dimensions: L820 × W450 × H840–1070 mm
- ABS tabletop
- Epoxy-coated steel frame
- Gas spring height adjustment
- Four casters with brakes
Mattress
- Ripple overlay cell-type anti-decubitus active mattress
- 10 cm thickness
- Waterproof cover
- Flame-retardant cover
- Sterilizable design
Certifications
- CE
- FDA
- ISO13485
- ISO9001
- FSC
