Description
The HL-B115A TYPE I Electric Hospital Bed is a versatile ICU care solution designed to provide reliable patient positioning, emergency support, and convenient operation in modern healthcare environments. Its corrosion-resistant epoxy-coated steel construction offers durability, while the four-section mattress platform provides stable support for different clinical requirements.
The bed features electrically adjustable backrest, leg section, height, Trendelenburg, and reverse Trendelenburg positions. An automatic contour function and chair position help provide flexible patient positioning, while the manually extendable bed length accommodates taller patients.
For emergency situations, the HL-B115A includes a one-button electric CPR quick-release function and a manual CPR handle for rapid backrest adjustment. Adjustable HDPP side rails with angle indicators enhance patient safety and make positioning easier to monitor.
High-performance linear actuators provide smooth, waterproof, and low-noise operation. The bed also includes 125mm central-locking casters, corner bumpers, IV pole sockets, drainage bag hooks, and an adjustable stainless steel IV pole. An optional patient weighing scale and battery backup are available for additional functionality.

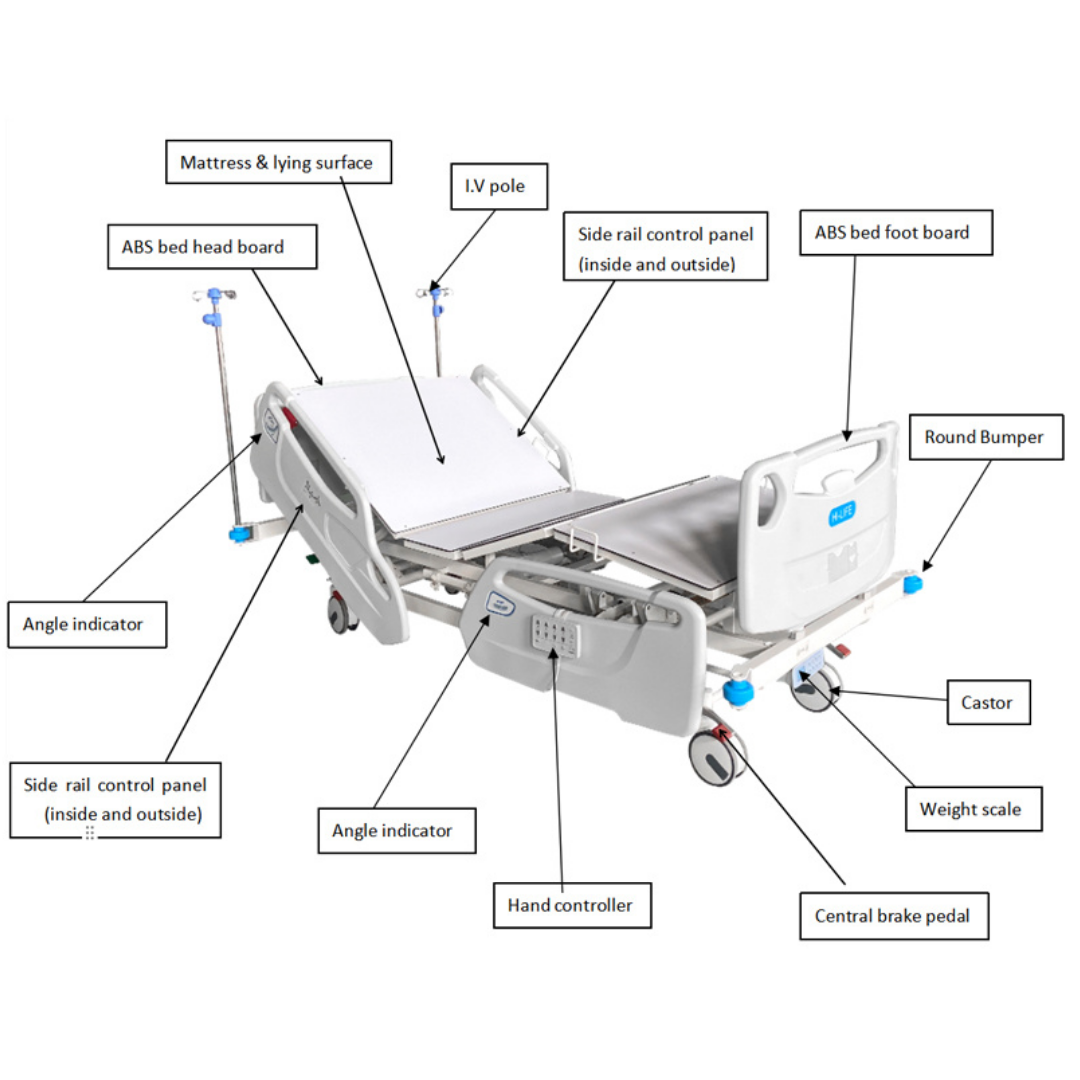

Features
- Electric ICU hospital bed design
- Durable epoxy-coated steel construction
- Four-section mattress platform
- High-performance, waterproof and low-noise linear actuators
- Electric backrest adjustment
- Electric leg section adjustment
- Electric Hi-Low adjustment
- Trendelenburg and reverse Trendelenburg positioning
- Automatic contour function
- Chair position
- One-button electric CPR quick release
- Manual CPR backrest release
- Manually adjustable bed length extension
- Adjustable bed-exit alarm sensitivity
- X-ray-translucent back section
- Four-piece HDPP adjustable side rails
- Side rails with angle indicators
- Hand remote controller
- Optional side-rail control panels
- 125mm casters with central braking system
- Four corner bumpers
- Four IV pole sockets
- Four drainage bag hooks
- Adjustable stainless steel IV pole
- Optional patient weighing scale
- Optional battery backup
- 250kg safety bearing capacity
Key Attributes
- Product Type: Electric ICU Hospital Bed
- Model: HL-B115A TYPE I
- Category: ICU Beds
- Frame Material: Epoxy-Coated Steel
- Bed Platform: Four-Section Steel Platform
- Head & Foot Boards: HDPP, Removable
- Side Rails: Four-Piece HDPP Adjustable
- Backrest Adjustment: 0–75°
- Leg Section Adjustment: 0–35°
- Height Adjustment: 400–750mm
- Trendelenburg: 12°
- Reverse Trendelenburg: 12°
- Automatic Contour: Yes
- Chair Position: Yes
- CPR: Electric One-Button & Manual
- Bed Length: 2190–2500mm
- Load Capacity: 250kg
- Caster Diameter: 125mm
- Patient Weighing Scale: Optional
- Battery Backup: Optional
- Power Supply: 200–240V, 50Hz
- Safety Standard: IEC/EN 60601-2-52
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Electric Hospital Bed |
| Model | HL-B115A TYPE I |
| Application | ICU / Intensive Care |
| Overall Dimensions | L2190–2500 × W980mm |
| Height Adjustment | 400–750mm |
| Backrest Adjustment | 0–75° |
| Leg Section Adjustment | 0–35° |
| Trendelenburg | 12° |
| Reverse Trendelenburg | 12° |
| Automatic Contour | Yes |
| Chair Position | Yes |
| Bed Length Extension | 2190–2500mm |
| Mattress Platform | Four-Section Steel Platform |
| Back Section | X-Ray Translucent |
| CPR | Electric One-Button & Manual |
| Bed Exit Alarm | Adjustable Sensitivity |
| Maximum Load Capacity | 250kg |
| Casters | Ø125mm |
| Braking System | Central Braking |
| Head & Foot Boards | HDPP, Removable |
| Side Rails | Four-Piece HDPP Adjustable |
| Side Rail Controls | Optional |
| Patient Weighing Scale | Optional |
| Battery | Optional |
| Frame Finish | Epoxy-Coated Steel |
| Power Supply | 200–240V, 50Hz |
| Safety Standard | IEC/EN 60601-2-52 |
Accessories
- Corner Bumpers: 4 pieces
- IV Pole Sockets: 4 pieces, one at each corner
- Drainage Bag Hooks: 4 pieces
- IV Pole: 1 stainless steel adjustable-height pole with four hanging hooks
- Mattress: 18cm medical-grade mattress with high-density viscoelastic foam and waterproof, detachable cover
- Battery: Optional
- Patient Weighing Scale: Optional
