Description

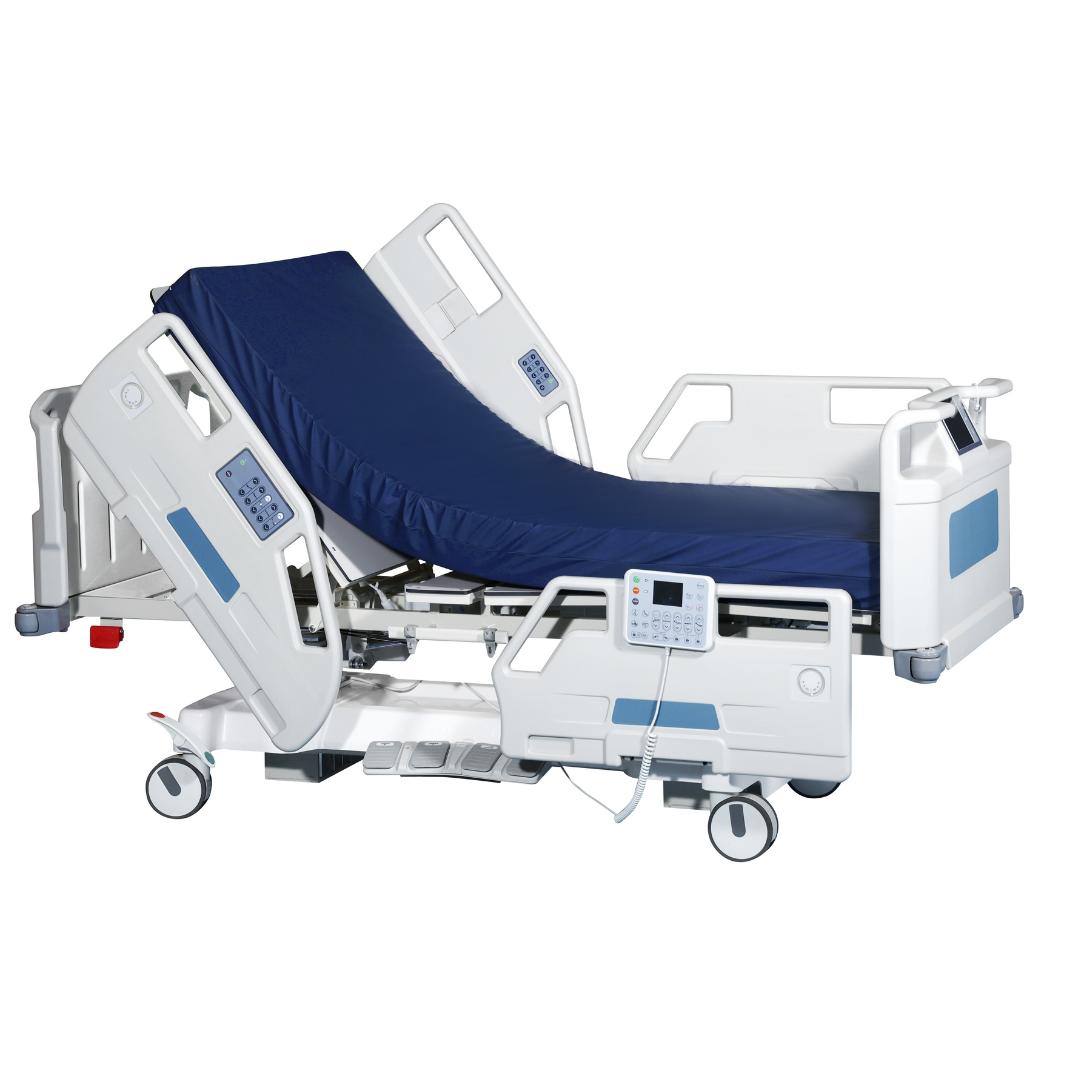

The Advanced Electric ICU Bed HL-B117A is a high-performance electric hospital bed designed for intensive care units and critical-care environments. Its robust construction, advanced electric positioning functions, and comprehensive safety features provide reliable support for both patients and healthcare professionals.
The bed offers adjustable backrest, leg section, height, Trendelenburg, reverse Trendelenburg, lateral tilt, and chair positioning. Integrated side-rail controls allow convenient operation, while the automatic contour function helps maintain comfortable and clinically appropriate patient positioning.
Designed with a corrosion-resistant steel frame, X-ray-translucent mattress platform, central braking system, CPR release functions, patient weighing scale, and bed-exit alarm, the HL-B117A supports efficient ICU care and emergency response.
Features
- Advanced electric ICU bed for intensive care environments
- Durable epoxy-coated steel construction
- High-performance, waterproof and low-noise linear actuators
- Four-section PP mattress platform with X-ray-translucent design
- Electric backrest and leg section adjustment
- Electric height adjustment from 350–750 mm
- Trendelenburg and reverse Trendelenburg positioning
- Lateral tilting function
- Automatic contour function
- One-button electric CPR quick release
- Manual CPR release for emergency situations
- Electric chair positioning
- Manually adjustable bed length extension
- Adjustable bed-exit alarm sensitivity
- Integrated patient weighing scale up to 250 kg
- High-definition angle indicators on side rails
- Embedded control panels on both sides of the side rails
- HDPP head and foot boards for easy cleaning
- 150 mm casters with central braking system
- Battery backup with charge indicator
- Multiple IV pole and drainage bag mounting points
- Designed for easy cleaning and disinfection
Key Attributes
- Product Type: Advanced Electric ICU Hospital Bed
- Model: HL-B117A
- Application: Intensive Care Unit (ICU)
- Bed Type: Four-Section Electric Bed
- Frame Material: Epoxy-Coated Steel
- Bed Platform: PP Material, X-Ray Translucent
- Actuation: Electric Linear Actuators
- Height Adjustment: 350–750 mm
- Backrest Adjustment: 0–75°
- Leg Section Adjustment: 0–30°
- Trendelenburg: 12°
- Reverse Trendelenburg: 12°
- Lateral Tilt: Electric
- Chair Position: Yes
- CPR Function: Electric & Manual
- Patient Weighing Capacity: Up to 250 kg
- Bed Exit Alarm: Adjustable Sensitivity
- Casters: 150 mm with Central Braking
- Bed Length: 2350–2500 mm
- Maximum Load Capacity: 250 kg
- Power Supply: 200–240V, 50Hz
- Battery Backup: Included
- Safety Standard: IEC/EN 60601-2-52
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Advanced Electric ICU Bed |
| Model | HL-B117A |
| Overall Dimensions | L2350–2500 × W1090 mm |
| Height Adjustment | 350–750 mm |
| Backrest Adjustment | 0–75° |
| Leg Section Adjustment | 0–30° |
| Trendelenburg | 12° |
| Reverse Trendelenburg | 12° |
| Lateral Tilt | Yes |
| Automatic Contour | Yes |
| Chair Position | Yes |
| Bed Length Extension | 2350–2500 mm |
| Mattress Platform | Four-section PP platform |
| X-Ray Compatibility | Back section X-ray translucent |
| Patient Weighing | Up to 250 kg |
| Weighing Precision | 100 g |
| Bed Exit Alarm | Adjustable sensitivity |
| CPR Release | Electric one-button & manual |
| Casters | Ø150 mm, central braking |
| Safe Load Capacity | 250 kg |
| Head & Foot Boards | HDPP, detachable |
| Side Rails | Four-piece HDPP adjustable |
| IV Pole | Stainless steel, adjustable height, 4 hooks |
| Battery | Included with charge indicator |
| Mattress | 14 cm medical-grade viscoelastic foam |
| Mattress Cover | Waterproof and detachable |
| Power Supply | 200–240V, 50Hz, Type F socket |
| Safety Standard | IEC/EN 60601-2-52 |
| Application | Intensive Care Units and Critical Care |
