Description

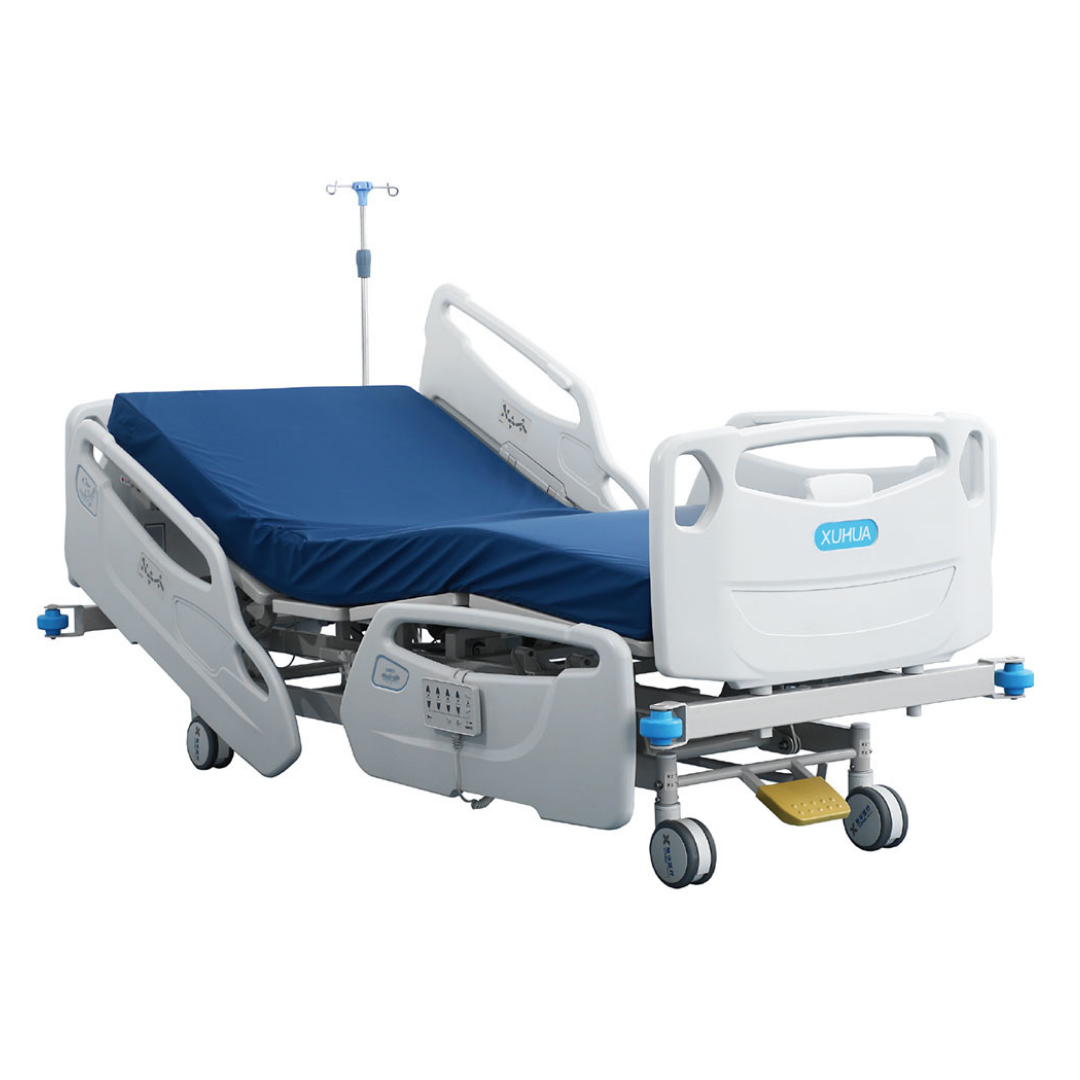

The HL-B117B TYPE I Electric Hospital Bed is a practical ICU bed designed to support patient comfort, nursing efficiency, and emergency care. Its detachable bed head and foot boards allow nursing staff easier access to the patient, while Trendelenburg and reverse Trendelenburg functions support different clinical and emergency positioning needs.
The bed features built-in control panels on both side rails for convenient operation by patients and nursing staff. An ergonomic CPR handle at the head section enables quick backrest release during emergencies, while an electric function lock switch helps prevent unintended operation. Angle indicators provide clear positioning reference for the backrest and Trendelenburg functions.
Its non-gap design supports safer patient transfers, while the automatically shaped platform helps reduce patient sliding. The 125mm double-face swinging castors feature a two-step central locking system and are designed for durability, abrasion resistance, and corrosion resistance. A built-in battery backup is available as an optional feature.
Features
- One-step detachable bed head and foot boards
- Trendelenburg and reverse Trendelenburg functions
- Non-gap design for safer patient transfer
- Ergonomic CPR handle for emergency backrest release
- Electric function lock/unlock switch
- Built-in control panels on both side rails
- Angle indicators for backrest and Trendelenburg positions
- Automatically shaped bed platform to reduce patient sliding
- 125mm double-face swinging castors
- Two-step central locking castor system
- Abrasion- and corrosion-resistant castors
- Optional built-in battery backup
Key Attributes
- Product Type: Electric Hospital Bed
- Model: HL-B117B TYPE I
- Category: ICU Beds
- Overall Dimension: L2190 × W950 × H470–795mm
- Control: Side Rail Control Panels
- CPR Function: Quick Backrest Release
- Castor Diameter: 125mm
- Castor Locking: Two-Step Central Locking System
- Battery Backup: Optional
Technical Specifications
| Specification | Details |
|---|---|
| Overall Dimension | L2190 × W950 × H470–795mm |
| Trendelenburg | Available |
| Reverse Trendelenburg | Available |
| CPR Release | Yes |
| Side Rail Controls | Built-In on Both Sides |
| Angle Indicators | Backrest, Trendelenburg & Reverse Trendelenburg |
| Bed Platform | Automatic Anti-Sliding Design |
| Castor Diameter | 125mm |
| Castor Locking | Two-Step Central Locking System |
| Battery Backup | Optional |
| Category | ICU Beds |
