Description

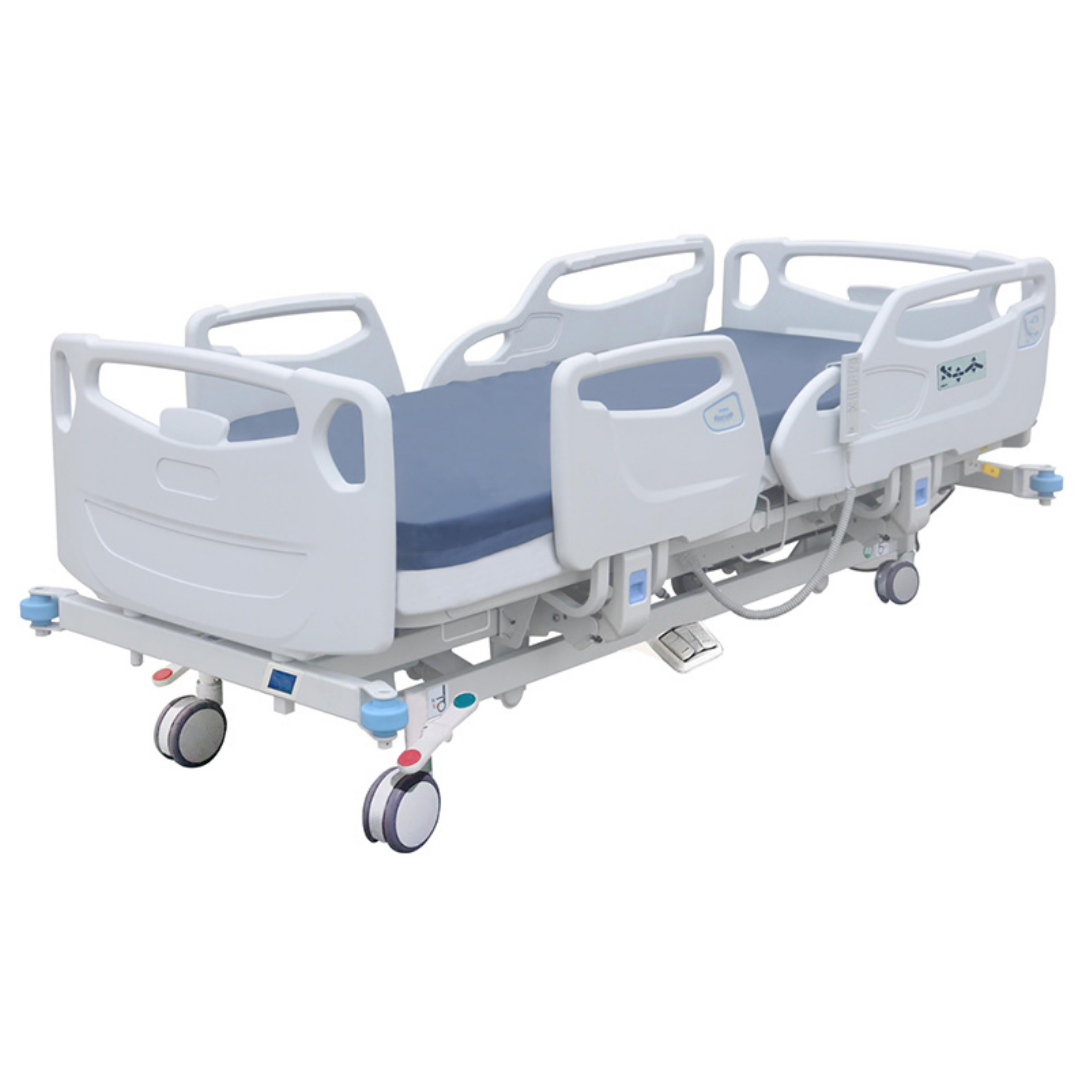

The HL-B117B Electric ICU Hospital Bed is designed to support the demanding requirements of intensive care units and critical patient management. Its heavy-duty mild steel frame with anti-corrosion epoxy coating provides a durable foundation, while the high-quality PP head and foot boards can be detached in one step for emergency access, cleaning, and disinfection.
The bed features a removable and disinfectable ABS mattress platform with a radiolucent backrest and integrated X-ray cassette tray. Its split polypropylene side rails include integrated control panels for both patients and nursing staff, helping caregivers manage bed functions conveniently while maintaining patient safety.
Four electrically operated sections provide flexible positioning, including backrest, height, Trendelenburg, reverse Trendelenburg, and cardiac chair positions. The auto contour function helps maintain an appropriate patient posture, while the auto regression function raises the backrest in a C-shaped motion to help reduce abdominal compression.
For emergency situations, the bed provides both single-button motorized CPR and manual CPR functions. A three-mode bed-exit alarm, nurse call system, central braking, and a fifth steering wheel further enhance safety and maneuverability. An integrated weighing scale and bilateral Hi-Lo foot pedals add convenience for clinical staff.
The HL-B117B can also be supplied with an alternating-pressure, low-air-loss air mattress, foam mattress, bedside cabinet, and overbed table, providing a complete solution for intensive care and patient support.
Features
- Four-section electrically operated ICU bed
- Heavy-duty mild steel frame with anti-corrosion epoxy coating
- One-step detachable PP head and foot boards
- Secure locking mechanism for head and foot boards
- Removable and disinfectable ABS mattress platform
- Radiolucent backrest with integrated X-ray cassette tray
- Split polypropylene side rails
- Integrated patient and nursing control panels
- Electric backrest, height, Trendelenburg and reverse Trendelenburg adjustment
- One-button cardiac chair positioning
- Automatic contour function
- Automatic regression function
- Electric and manual CPR release
- Extendable mattress platform
- Central braking system
- Four 125mm anti-static casters
- Fifth steering wheel for improved maneuverability
- Integrated weighing scale system
- Bilateral Hi-Lo foot pedals
- Three-mode bed-exit alarm
- Nurse call system
- Built-in battery backup
- Telescopic stainless steel IV pole
- Suitable for intensive care environments
Key Attributes
- Product Type: Electric ICU Hospital Bed
- Model: HL-B117B
- Category: ICU Beds
- Application: Intensive Care Unit
- Bed Type: Four-Section Electric ICU Bed
- Overall Dimension: 2180mm × 900mm or larger
- Height Adjustment: 380–800mm without mattress
- Backrest Articulation: ≥60°
- Thigh Section Articulation: ≥25°
- Trendelenburg: -17°
- Reverse Trendelenburg: +17°
- Cardiac Chair: One-Button Activation
- Frame Material: Heavy-Duty Mild Steel
- Head & Foot Boards: High-Quality PP
- Mattress Platform: Removable ABS
- Backrest: Radiolucent with X-Ray Cassette Tray
- Side Rails: Split Polypropylene
- Casters: 125mm Anti-Static
- Braking: Central Braking System
- Power Supply: 220V AC, 50/60Hz
- Battery Backup: ≥18 Hours
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Electric ICU Hospital Bed |
| Model | HL-B117B |
| Application | Intensive Care Unit |
| Overall Dimension | 218cm × 90cm or larger |
| Bed Type | Four-Section Electric ICU Bed |
| Height Adjustment | 38–80cm without mattress (±5% tolerance) |
| Backrest Articulation | ≥60° |
| Thigh Section Articulation | ≥25° |
| Trendelenburg | -17° (±5% tolerance) |
| Reverse Trendelenburg | +17° (±5% tolerance) |
| Cardiac Chair Position | One-Button Electric |
| Auto Contour | Yes |
| Auto Regression | Yes |
| CPR Function | Motorized One-Button & Manual |
| Mattress Platform | Extendable, Matched Mattress Supplied |
| Head & Foot Boards | PP, One-Step Detachable |
| Mattress Base | Removable ABS |
| Backrest | Radiolucent with X-Ray Cassette Tray |
| Side Rails | Split Polypropylene with Integrated Controls |
| Casters | 4 × 125mm Anti-Static Casters |
| Steering Wheel | 5th Steering Wheel |
| Braking System | Central Braking |
| Power Input | 220V AC, 50/60Hz |
| Battery Backup | ≥18 Hours |
| Weighing Scale | Integrated |
| Bed Exit Alarm | 3-Mode |
| Nurse Call | Yes |
Standard Accessories
- Drainage Bag Rails: Hooks on both sides
- Battery Backup: Built-in, ≥18 hours of operation
- Integrated Weighing Scale: Included
- Hi-Lo Foot Pedals: Bilateral
- IV Pole: Telescopic stainless steel with 2/4 hooks
Additional Patient Care Equipment
Air Mattress with Pump
The optional air mattress is made from breathable PVC and provides alternating pressure and low-air-loss therapy through a dedicated electronic pump. Its approximate dimensions are 200 × 90 × 9cm, with replaceable air tubes for maintenance.
Foam Mattress
The foam mattress features a polyurethane foam core with a symmetrical wave profile and a waterproof, breathable polyester cover with a zipper. Approximate dimensions are 200 × 90 × 10cm.
Bedside Cabinet
The bedside cabinet provides practical storage with an upper drawer, middle niche, and large lower cupboard. It combines a zinc-plated steel frame with laminated MDF panels and four casters, including two with brakes.
Overbed Table
The overbed table features a laminated MDF tabletop, height-adjustable base, and tiltable tabletop. Four casters provide mobility, with two equipped with brakes for stable positioning.
