Description

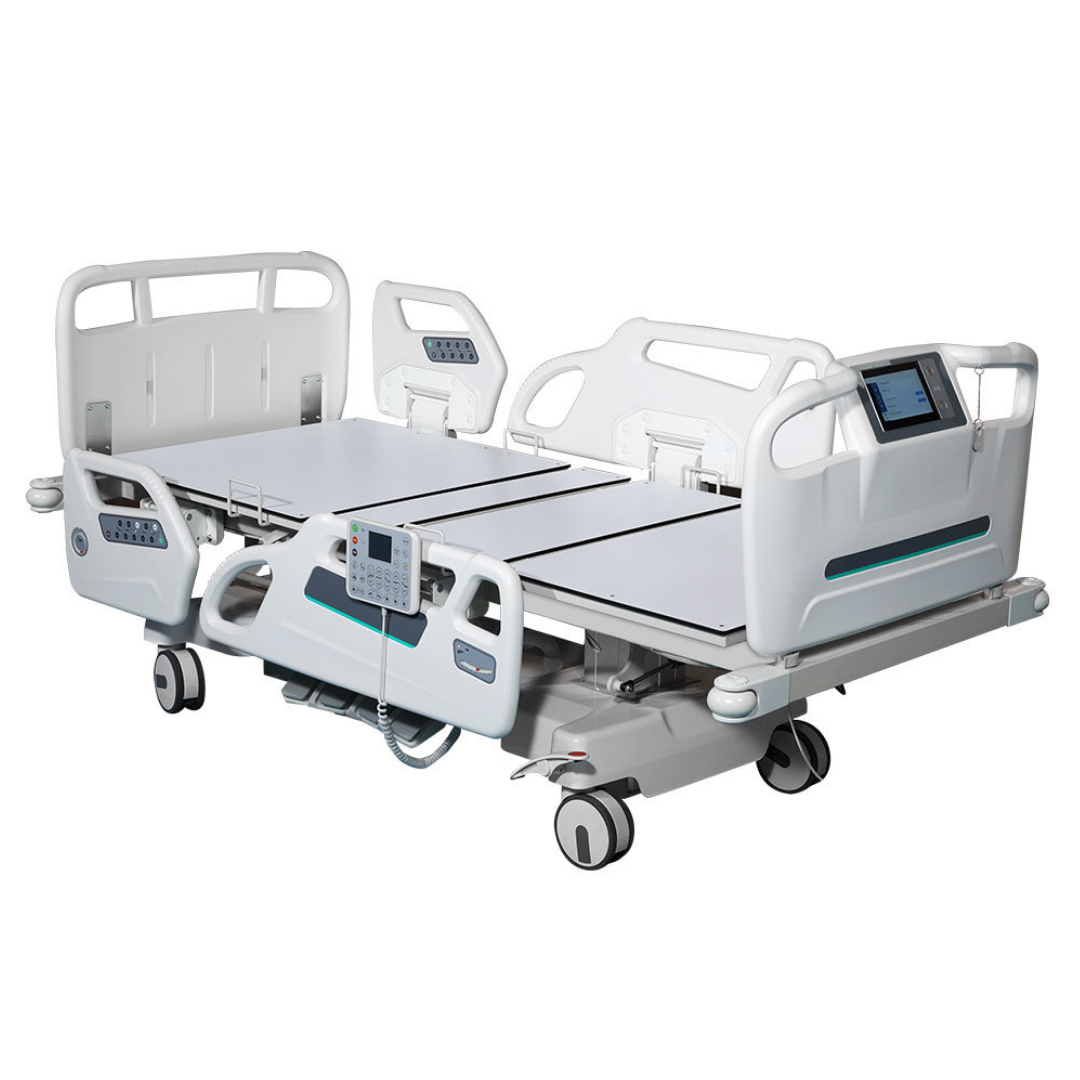

The HL-B117A TYPE V Electric Hospital Bed is a multifunctional electric hospital bed designed to support efficient patient care in intensive care and hospital environments. Its electric backrest, leg section, Hi-Low, Trendelenburg, reverse Trendelenburg, and lateral tilting functions provide flexible positioning for different clinical requirements.
The bed features a four-section HPL lying platform with good load-bearing performance and X-ray transparency. Four-piece PP adjustable side rails include integrated control buttons and angle indicators, giving caregivers convenient access to key bed functions while supporting practical patient management.
An LCD touchscreen control panel at the foot end integrates bed operation, patient record storage, weighing functions, and bed-exit alarm functions. Foot control pedals on both sides provide additional access to essential positioning functions, helping improve workflow and ease of operation.
Features
- Multifunctional electric ICU hospital bed design
- Electric backrest adjustment
- Electric leg section adjustment
- Electric Hi-Low height adjustment
- Trendelenburg and reverse Trendelenburg positioning
- Left and right lateral tilting
- Integrated patient weighing system
- LCD touchscreen control at the bed footboard
- Patient record storage function
- Bed weighing function
- Bed-exit alarm function
- Four-piece adjustable PP side rails
- Integrated control buttons on side rails
- Angle indicators on the outside of side rails
- Four-section HPL lying platform
- X-ray-transparent platform design
- Foot control pedals on both sides of the bed
Key Attributes
- Product Type: Electric Hospital Bed
- Model: HL-B117A TYPE V
- Category: ICU / Hospital Bed
- Control System: LCD Touchscreen, Side Rail Controls & Foot Pedals
- Platform: Four-Section HPL Platform
- Imaging Compatibility: X-Ray Transparent
- Weighing System: Integrated
- Bed-Exit Alarm: Yes
- Backrest Adjustment: Electric
- Leg Section Adjustment: Electric
- Height Adjustment: Electric Hi-Low
- Lateral Tilt: Left / Right
Technical Specifications
| Specification | Details |
|---|---|
| Overall Dimension | L2190 × W1040mm |
| Electric Backrest Adjustment | 0–70° ±5° |
| Electric Leg Section Adjustment | 0–35° ±5° |
| Electric Hi-Low Adjustment | 540–940mm |
| Trendelenburg | 13° |
| Reverse Trendelenburg | 13° |
| Left / Right Tilting | 30° / 30° |
| Platform Type | Four-Section HPL |
| Platform | X-Ray Transparent |
| Side Rails | 4-Piece Adjustable PP |
| Control Display | LCD Touchscreen |
| Weighing System | Integrated |
| Bed-Exit Alarm | Yes |
| Foot Controls | 4 Sets on Both Sides |
| Category | ICU / Hospital Beds |
