Product Description

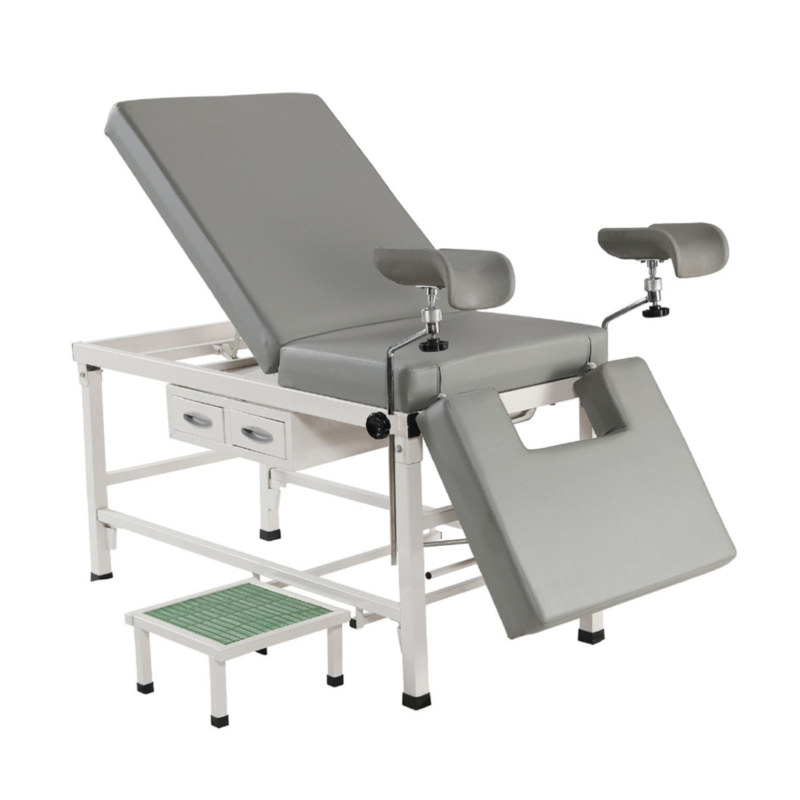

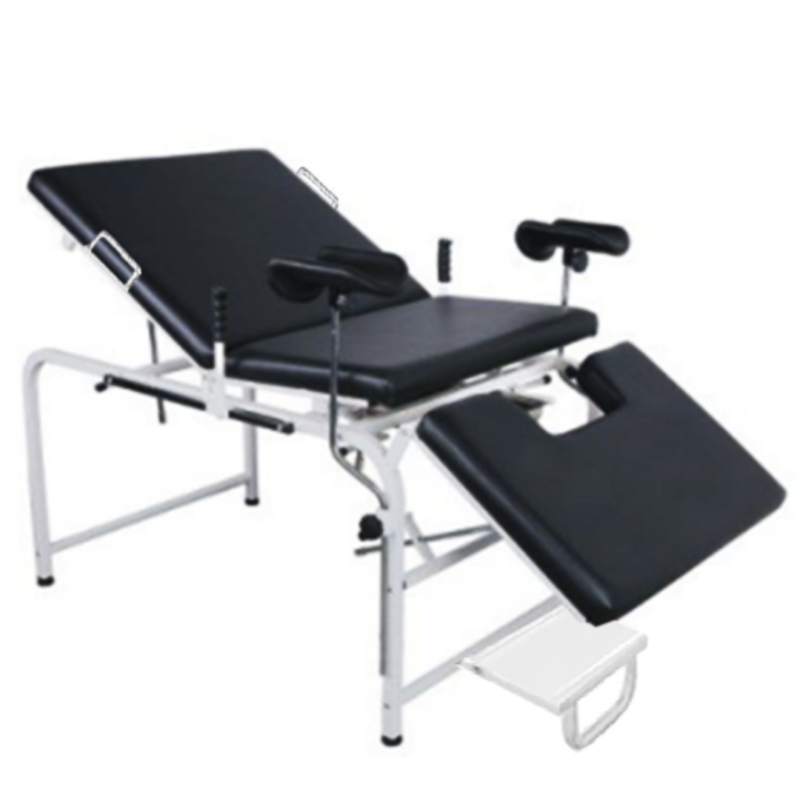

The HL-A232B Delivery Bed is a versatile delivery and gynecological examination couch designed to provide practical patient positioning and support during different clinical procedures. Its multifunctional structure consists of a bed frame, adjustable backrest, seat board, legrest, side rails, support bar, castors, knee crutches, monitor tray, IV rod, stainless steel basin, and other essential components.
The main structure is made from mild steel tubing with an epoxy-coated finish, providing a durable construction for regular healthcare use. The couch is equipped with a high-density foam mattress covered with PU-coated fabric, offering a hygienic and durable patient surface.
The backrest and legrest can be adjusted using ratchet bars, while the overall height can be adjusted manually using the crank located beneath the back section. Adjustable knee crutches provide positioning support during delivery and gynecological procedures. The detachable stainless steel bowl and concealed IV pole sockets on both sides of the couch provide additional practical functionality.
Key Features
- Multifunctional delivery and gynecological examination couch
- Mild steel tube construction with epoxy coating
- High-density foam mattress
- PU-coated fabric mattress cover
- Hygienic and durable mattress surface
- Adjustable backrest with ratchet bar
- Adjustable legrest with ratchet bar
- Manual height adjustment through crank
- Adjustable knee crutches
- Detachable stainless steel bowl
- Concealed IV pole sockets on both sides
- Four durable castors with individual brakes
- Integrated side rails and support bar
- Integrated monitor tray and IV rod
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A232B |
| Category | Gyn-Exam Beds |
| Overall Size | L2000 × W800 × H600–800mm |
| Main Structure | Mild steel tube with epoxy coating |
| Mattress | High-density foam filling |
| Mattress Cover | Fabric, PU coated |
| Castors | 4 durable castors |
| Castor Braking | Individual brakes |
| Backrest Adjustment | Ratchet bar |
| Legrest Adjustment | Ratchet bar |
| Height Adjustment | Manual crank under the back section |
| Knee Crutches | Adjustable |
| Basin | Detachable stainless steel bowl |
| IV Pole Sockets | Concealed sockets on both sides |
| Integrated Components | Bed frame, backrest, seat board, legrest, side rails, bar, castors, knee crutches, monitor tray, IV rod, stainless steel basin |
Positioning & Clinical Support
The HL-A232B provides flexible positioning through its adjustable backrest, legrest, and overall height. Adjustable knee crutches provide additional support during delivery and gynecological procedures. The stainless steel bowl, monitor tray, IV rod, and concealed IV pole sockets further support practical clinical workflows.
Ideal For
The HL-A232B Delivery Bed is suitable for:
- Maternity and delivery units
- Obstetrics departments
- Gynecological examination rooms
- Hospitals and clinics
- Women’s healthcare facilities
- Labor and delivery procedures
- Gynecological examinations and treatments
