Product Description

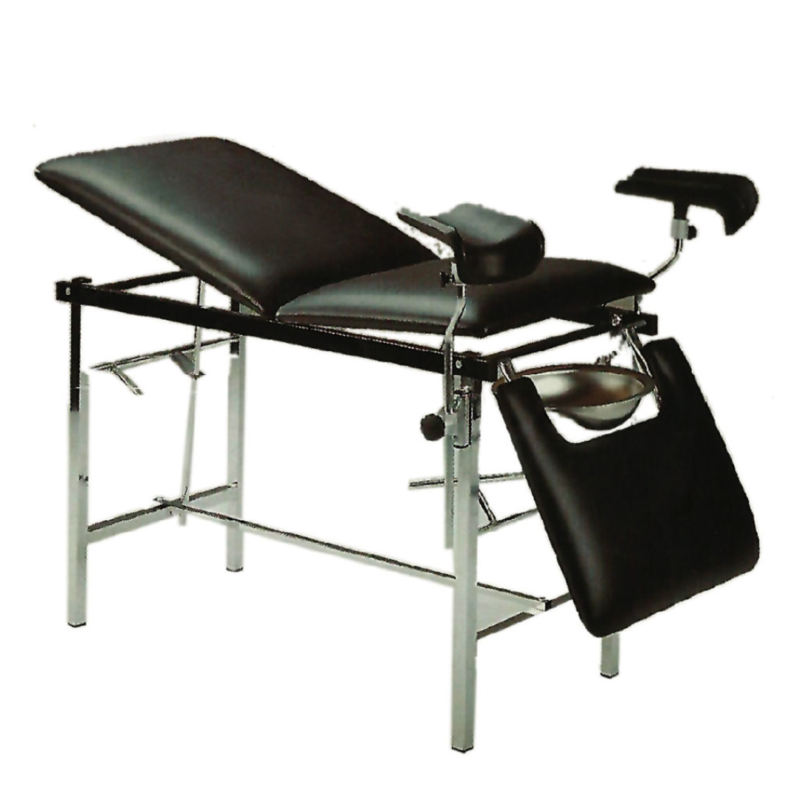

The HL-A231B Delivery Bed is designed to provide a comfortable and practical platform for gynecological examination, treatment, and delivery procedures. Its three-section platform allows the back, pelvic, and leg sections to be adjusted independently, helping healthcare professionals achieve suitable patient positioning for different clinical requirements.
The three sections are upholstered with high-density polyurethane foam with a density of 30 kg/m³. The upholstery is covered with flexible artificial leather that is highly tear resistant, anti-static, flame retardant, disinfectant resistant, liquid proof, and washable. The removable mattress cover features a side zipper, making it easier to remove for cleaning and routine hygiene maintenance.
The back section adjusts from 0° to 85° using a secured pawl, while the pelvic section can be placed into the Trendelenburg position from 0° to 15° using a lever handle. The leg section adjusts from -90° to 0° through a secured pawl. When the three sections are elevated and fully extended, they align to form a flat surface.
The couch frame is made from heavy-duty tubular stainless steel, offering high resistance to corrosion. It is supported by four sturdy legs with rubber leveling feet to help maintain stability on uneven floors.
For added clinical convenience, the HL-A231B is supplied with handgrips, padded knee crutches, a sliding stainless steel basin, and a foldable stainless steel footstep.
Key Features
- Designed for gynecological examination, treatment, and delivery.
- Three-section platform with independently adjustable sections.
- High-density polyurethane foam upholstery with 30 kg/m³ density.
- Flexible artificial leather upholstery.
- Artificial leather is highly tear resistant, anti-static, flame retardant, disinfectant resistant, liquid proof, and washable.
- Removable mattress cover with side zipper for cleaning.
- Back section adjustment from 0° to 85° using a secured pawl.
- Pelvic section Trendelenburg adjustment from 0° to 15° using a lever handle.
- Leg section adjustment from -90° to 0° using a secured pawl.
- Three sections can align to form a flat surface when fully extended.
- Heavy-duty tubular stainless steel frame.
- High resistance to corrosion.
- Four sturdy legs with rubber leveling feet.
- Handgrips at the back section.
- Handgrips at the pelvic section.
- Padded knee crutches on both sides.
- Sliding stainless steel basin with 3L capacity.
- Foldable stainless steel footstep at the base.
- Loading capacity of more than 180 kg.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A231B |
| Product Type | Delivery Bed / Delivery Couch |
| Application | Gynecological Examination, Treatment & Delivery |
| Overall Dimension | L1800 × W800 × H750 mm / +50 mm |
| Platform Sections | 3 Sections |
| Back Section Adjustment | 0°–85° |
| Pelvic Section Adjustment | Trendelenburg 0°–15° |
| Leg Section Adjustment | -90°–0° |
| Mattress Foam | High-Density Polyurethane Foam |
| Foam Density | 30 kg/m³ |
| Upholstery | Artificial Leather |
| Mattress Cover | Removable, Side-Zipper Design |
| Frame Construction | Heavy-Duty Tubular Stainless Steel |
| Frame Resistance | High Corrosion Resistance |
| Support Legs | 4 Sturdy Legs |
| Leveling Feet | Rubber Leveling Feet |
| Basin | Sliding Stainless Steel Basin |
| Basin Capacity | 3 L |
| Knee Crutches | Padded, Both Sides |
| Handgrips | Back & Pelvic Sections |
| Footstep | Foldable Stainless Steel |
| Loading Capacity | >180 kg |
Standard Accessories
- Handgrips at the back section
- Handgrips at the pelvic section
- Padded knee crutches at both sides
- Sliding stainless steel basin, 3 L
- Foldable stainless steel footstep at the base
Positioning & Clinical Support
The independently adjustable three-section platform provides flexibility for different gynecological and delivery procedures. The back, pelvic, and leg sections can be positioned separately, while the flat-surface configuration provides a continuous platform when all three sections are fully extended.
Ideal For
The HL-A231B Delivery Bed is suitable for:
- Delivery rooms
- Gynecology departments
- Obstetrics and gynecology clinics
- Gynecological examination rooms
- Maternity units
- Hospitals and healthcare facilities
- Medical examination and treatment environments
