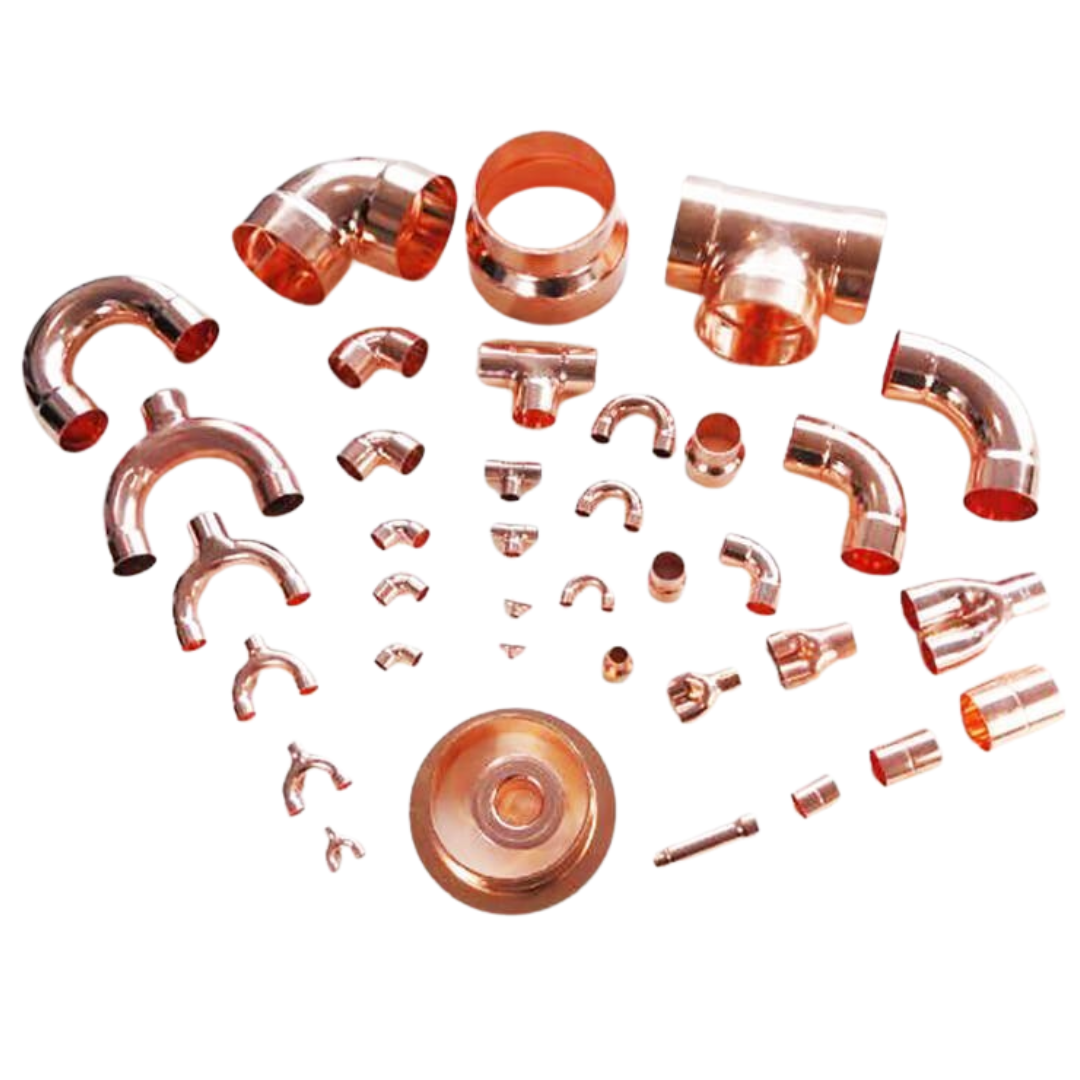

Medicare copper fittings are available in various types and configurations, including elbow, reducing elbow, street elbow, 45° elbow, straight coupling, equal tee, fitting reducer, reducing tee, and reducing couple. These fittings are compatible with our range of medical copper pipes, providing a seamless and secure connection across the entire system.
Types of Fittings
- Elbow:
Function: Used to change the direction of a pipe by 90°.
Application: Commonly used in confined spaces or when a sharp bend is required in the pipe layout.
- Reducing Elbow:
Function: Similar to the standard elbow, but designed to reduce the size of the pipe at the bend.
Application: Used to connect pipes of different diameters while maintaining the 90° angle.
- 45° Elbow:
Function: Changes the direction of the pipe by 45°.
Application: Ideal for gentle turns where a 90° angle is too sharp and a smoother transition is required.
- Straight Coupling:
Function: Connects two pieces of pipe of the same diameter in a straight line.
Application: Used to extend copper piping or to connect two straight sections of pipe.
- Equal Tee:
Function: Used to create a branch in the pipeline with three equally sized connections.
Application: Allows for splitting or merging of pipe sections with the same diameter.
- Fitting Reducer:
Function: Reduces the size of the pipe by transitioning from one diameter to a smaller one.
Application: Used when connecting pipes of different sizes, ensuring smooth flow transition.
- Reducing Tee:
Function: A tee fitting that allows for a reduction in pipe size at the branch.
Application: Typically used in pipelines where a smaller branch pipe is required, offering a connection with reduced pipe sizes.
- Reducing Coupler:
Function: Connects pipes of different diameters by reducing the pipe size at the joint.
Application: Used in situations where a reduction in pipe size is required for connecting different sized pipe sections.
Model
 |
 |
 |
 |
 |
|
| Fittings | Elbow 90° | Equal Tee | Reducing Tee | Straight Coupling | Reducer |
| Model | AM-CE | AM-ET | AM-RT | AM-SC | AM-RI |
| Sizes(mm) | 12-108 | 12-108 | 12-108 | 12-108 | 12-108 |
