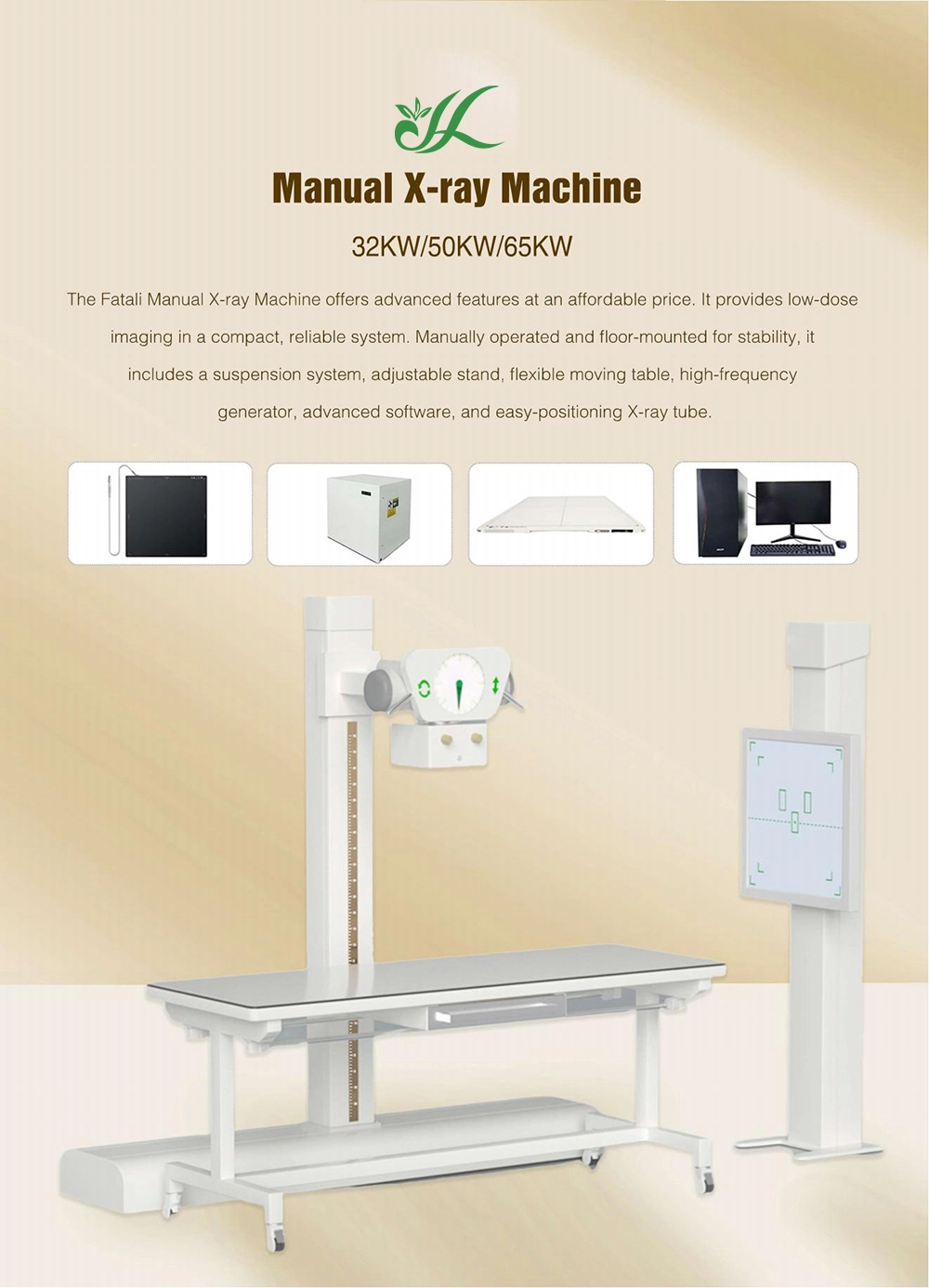

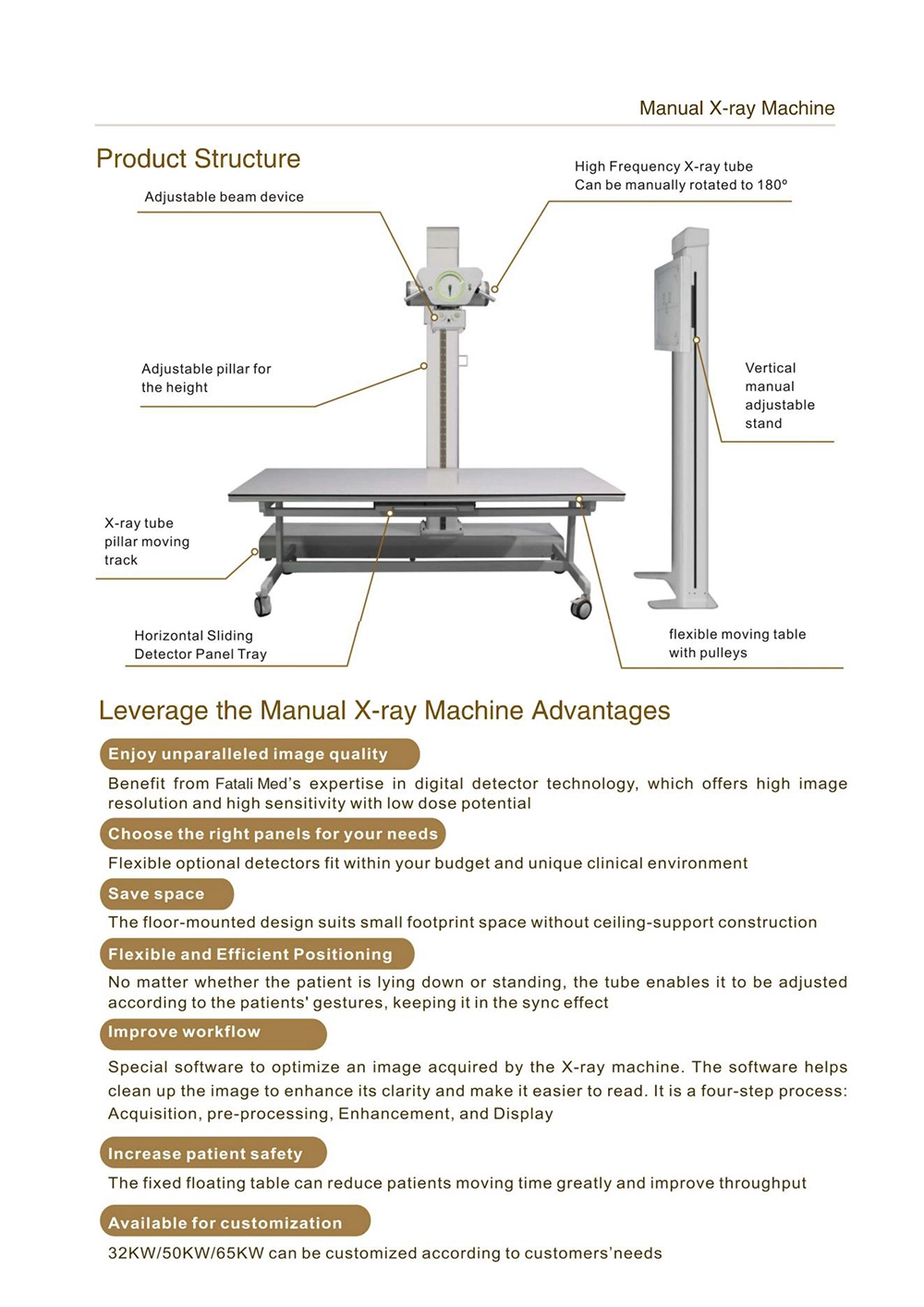

This Stationary X Ray Machine is available for customization
32KW/50KW/65KW can be customized according to customers’needs
| Generator | |
| Power voltage | 1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10% |
| Maximum Working Frequency | ≥30KHz |
| Nominal Electric Power | 32kw（@100kv，320mA，100ms） |
| KV range | 40~125KV |
| mA range | 40~400mA |
| mAs range | 0.1~500mAs |
| X-ray tube | |
| Working voltage | 40KV-125KV |
| Maximum power (0.1 S) | Small focus 20 kw, Large focus 40 kW |
| Nominal value | Large focus 1.2，Small focus 0.6 |
| Maximum heating filament characteristics | 5.3A |
| Anode speed (50HZ) | 2800rpm |
| Anode angle | 12° |
| Inherent filtering | 1.0mmAL/75kV |
| Anode Heat Content | 110KJ(150KHU) |
| Tube component heat capacity | 900KJ（1300KHU） |
