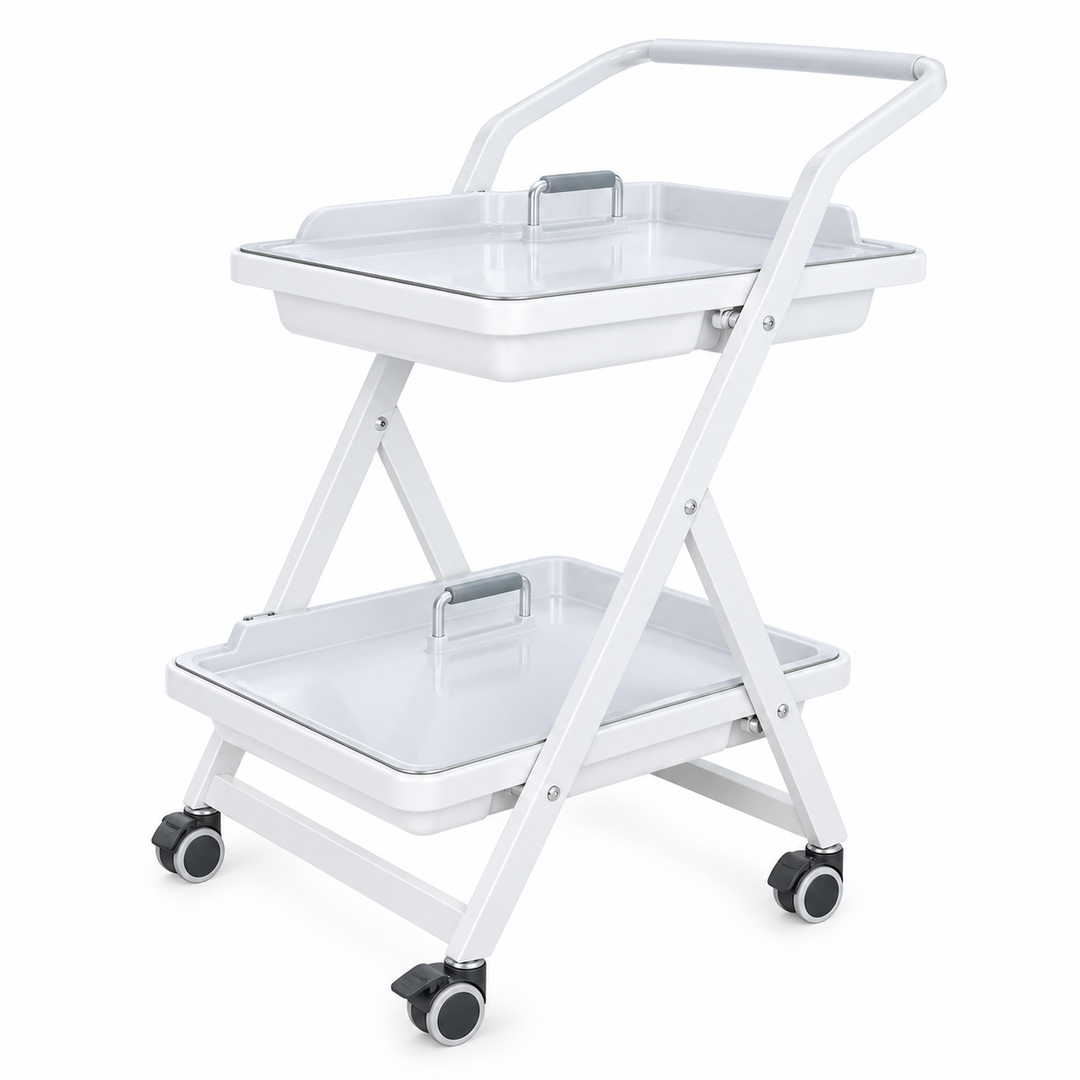

FTLNJ-ETC01 Endoscope Transport Cart
Key Features:
-
Applicable for transport circulation of endoscope. Design of multi-layer allows customers to place clean and contaminated endoscopes with labels, which achieves effective turnover and avoids cross-infection.
-
Material: carbon steel.
-
Specification: double-layer, three-layer.
-
Double layer size: 75 × 52 × 95 cm.
-
Three layer size: 75 × 52 × 95 cm.
FTLNJ-FE4 4K Fluorescence
The Professional Surgical Instrument Set – Hospital Endoscope Visualization System is an advanced medical imaging solution designed to provide exceptional visualization during minimally invasive surgical procedures.
FTLNJ-FE4 4K Fluorescence
Key Features:
-
Native dual 4K fluorescence camera patented technology, fluorescence and visible light synchronous acquisition, high resolution, good consistency, to perfect visual experience.
-
Full link 4K@60fps, resolution 3840×2160, fine to see tiny blood vessels, tissues, fascia.
-
BT.2020 wide color gamut with 10-bit color depth for better identification of organizational boundaries.
-
Proprietary fluorescence fusion technology, fluorescence and visible light image natural fusion, hierarchical, rich in detail, no ghost, no drift.
-
Multiple fluorescence modes can be switched arbitrarily, and the relationship between tissue structure and anatomy can be clarified to meet various clinical needs.
-
The intelligent image processing platform realizes intelligent dimming, adaptive noise reduction, intelligent pixel compensation, intelligent sharpening, blood vessel enhancement, etc., to improve the overall clarity of the picture.
-
Optional: Compatible with open/endoscopic surgery, dual-use, can be adapted to a variety of specifications of endoscope.
FTLNJ-FF-3 Gynecology Laparoscopy Set
Original Features & Specifications:
-
Laparoscope: 0°, Ø10 × 330 mm / 30°, Ø10 × 330 mm
-
Salpinx grasping forceps: Ø5 × 400 mm
-
Uterine grasping forceps: Ø10 × 400 mm / Ø5 × 400 mm
-
Cervical clamp
-
Biopsy forceps: Canine-toothed, Ø5 × 400 mm
-
Uterine manipulator
-
Simple uterine manipulator: 250 mm, single claw
-
Hysterometer: Ø5 × 500 mm
-
Uterine moving bar: Ø5 × 450 mm
-
Trocar cannula: Ø15 mm
-
Dilator: 10 mm / 15 mm
-
Reducer: 15 mm / 10 mm
-
Guiding bar: Ø10 mm
-
Hysteromyoma punch: Ø10 × 400 mm / Ø5 × 400 mm

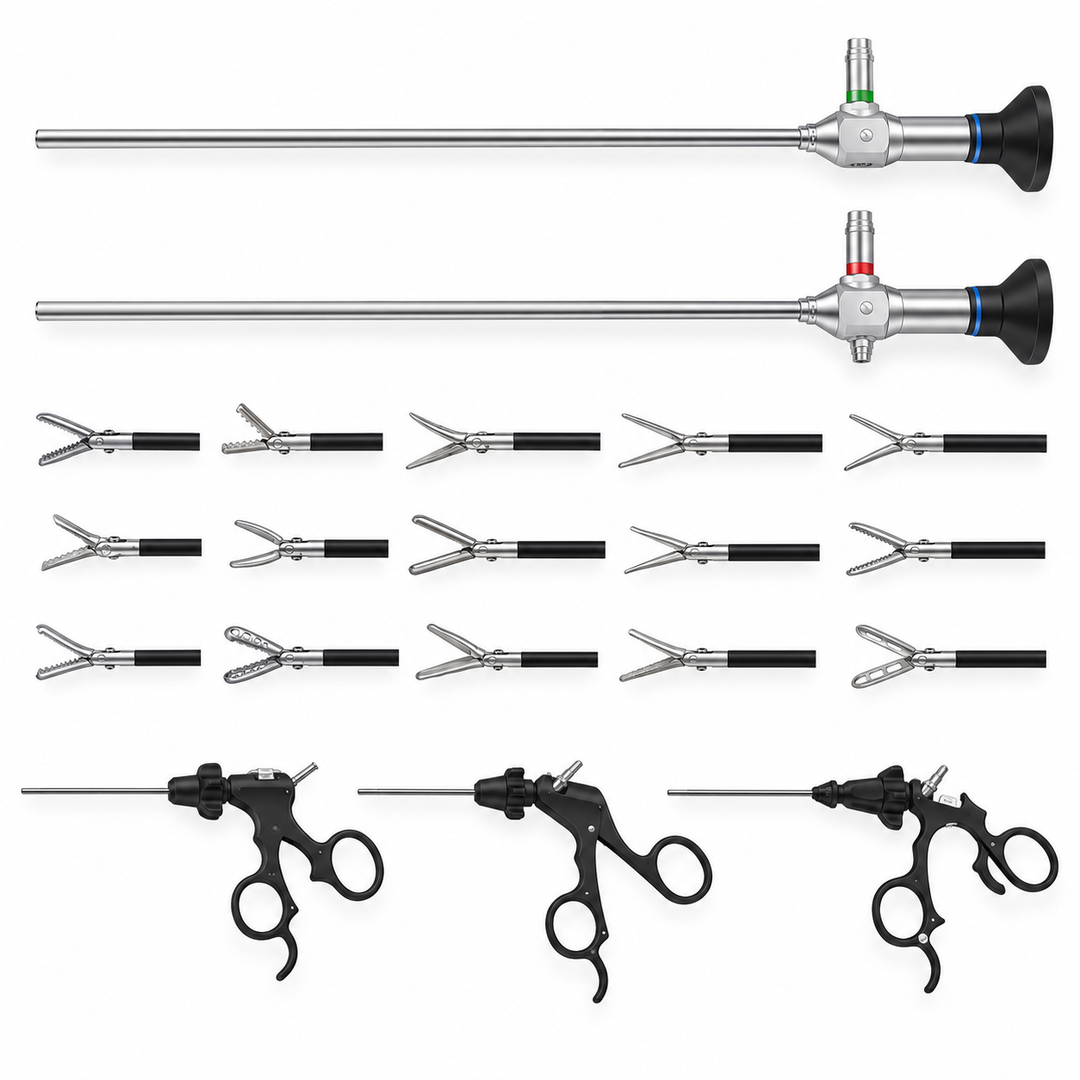

FTLNJ-FQ-3 Laparoscope Set
The SY-P049 Ventriculoscopy Neuro Endoscope is a high-precision neurosurgical endoscopic system designed for ventricular procedures and minimally invasive brain surgery.
FTLNJ-FQ-3 Laparoscope Set
Original Features & Specifications:
-
Laparoscope: 0° Ø10 × 330 mm / 30° Ø10 × 330 mm
-
Trocar sets: Ø10.5 mm / Ø11 mm / Ø5.5 mm
-
Veress needle: Ø2.5 × 120 mm / Ø2.5 × 100 mm, all stainless steel
-
Reducer: 10 mm / 5 mm
-
Suction & irrigation tube: Ø5 × 330 mm
-
Clip applicator: Single action, Ø10 × 330 mm
-
Large grasping forceps: Ø10 × 330 mm
-
Lithotomy forceps: Ø10 × 330 mm
-
Dissecting forceps: Straight Ø5 × 330 mm / Curved Ø5 × 330 mm
-
Scissors: Straight Ø5 × 330 mm / Curved Ø5 × 330 mm
-
Grasping forceps: Ø5 × 330 mm
-
Spring grasping forceps: Ø5 × 330 mm
-
Needle holder: Ø5 × 330 mm
-
Knot pusher: Ø5 × 330 mm
-
Electric hook: Ø5 × 330 mm
-
Electric coagulator: Ø5 × 330 mm
-
Sealing cap: Ø5 / Ø10
-
High frequency cord
-
Light guide cable: Ø4.5 × 2000 mm

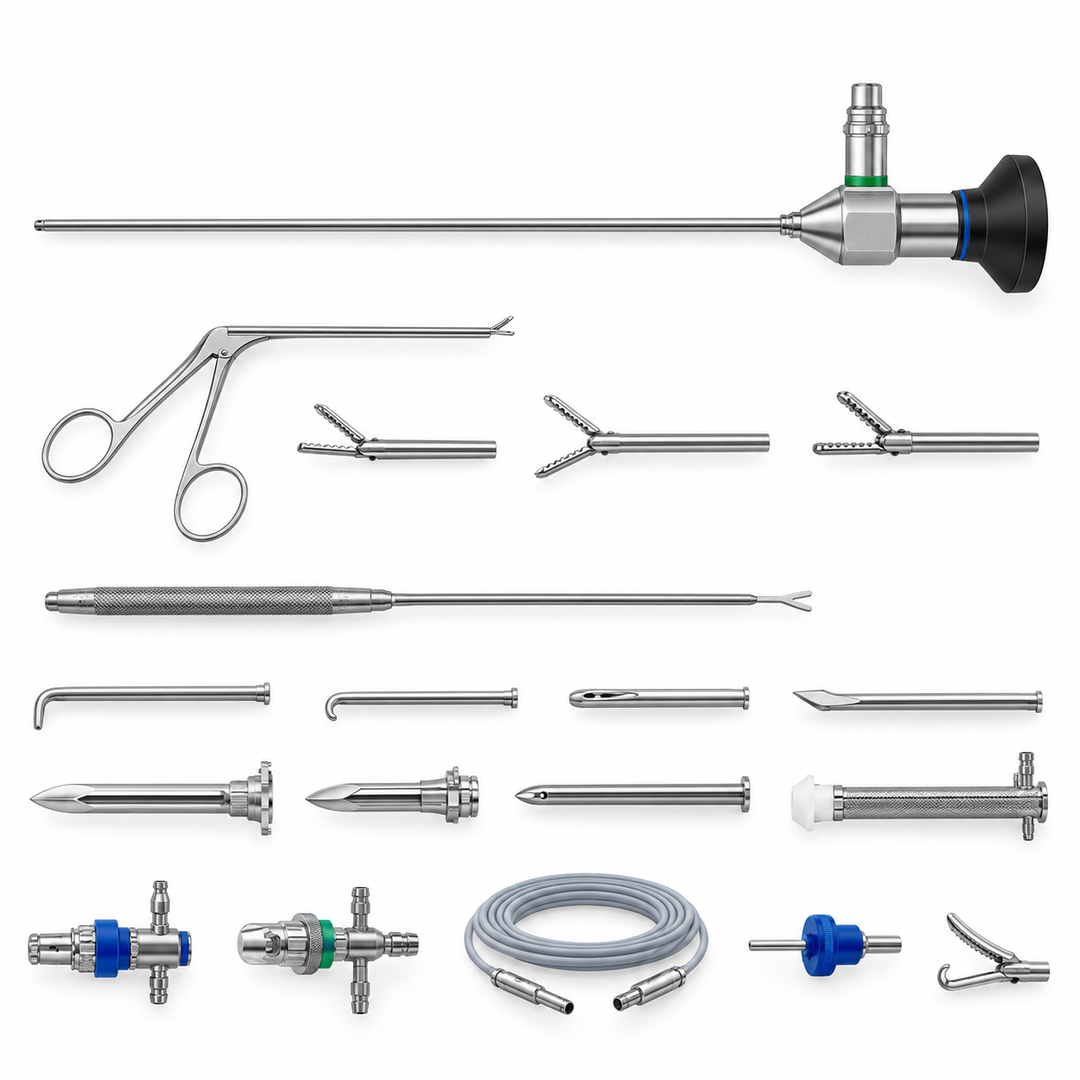

FTLNJ-GJ-5 Arthroscopy Set
Original Features & Specifications:
-
Endoscope: 0° Ø4 × 175 mm / 30° Ø4 × 175 mm / 70° Ø4 × 175 mm, wide angle
-
Hooked scissors: 0° straight / 15° upward / 30° left curved / 15° downward / 30° right curved
-
Punch forceps: 0° straight / 15° upward / 30° left curved / 15° downward / 30° right curved
-
Suction tube: Ø4 × 155 mm / Ø3 × 155 mm / Ø2.5 × 155 mm
-
Grasping forceps with tooth: 0° straight
-
Banana-shaped knife: 92 mm
-
Rose-shaped knife: 92 mm
-
Rasp: 92 mm
-
Curette: 5 × 92 mm, with hole / 7 × 92 mm, cup-shaped
-
Knife: 45° contra-angled
-
Trocar set: Ø5 × 140 mm / Ø4 × 140 mm
-
Adaptor
-
Luer-lock adaptor
-
Light guide cable: Ø4.5 × 2000 mm
-
Meniscotome: 92 mm
-
Probe: 3 × 92 mm / 4 × 92 mm
-
Ligamentous cutting knife
-
Hooked knife: 7 × 92 mm
FTLNJ-GW001 4K UHD
Original Specifications:
-
Total pixels: 9.03M
-
Effective pixels: 8M
-
Resolution: 3840 × 2160
-
Shortcut function: One step WB / One step Freeze / One step PIP
-
Video output: HDMI 2.0, 2160P output
-
White balance: AWC / One step WB / MWC
-
Gamma Correction: 0.45
-
Light source: LED light
-
Effective optical power: ≥100mW
-
Color temperature: ≥3000–7000K (as written in the catalog)

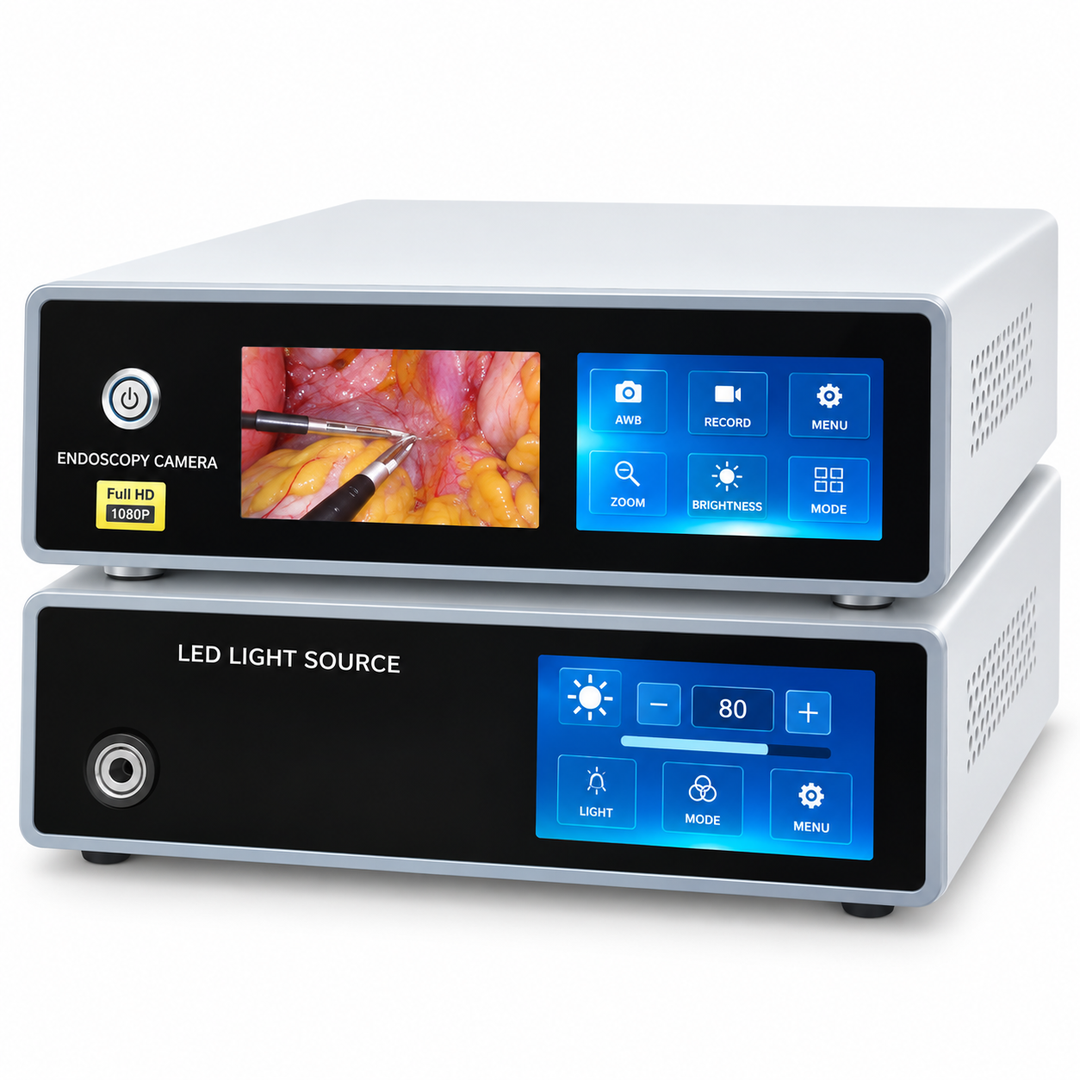

FTLNJ-GW100 FHD
Features & Specifications:
-
With display and touch screen
-
Effective Pixels: 1920 × 1080
-
Progressive scanning
-
Full HD camera 1080P
-
Anti-jamming processing
-
Horizontal Resolution: 1080P (1200 lines)
-
Video Output: HDMI × 4, SDI × 1, BNC × 1, VGA × 1
-
Manual / auto white balance
-
Digital zoom: 0–60X
-
Brightness: ODS adjusting
-
Light source: LED light
-
Effective light power: ≥100 mW
-
Brightness: ≥1,200,000 lux
-
Color temperature: 6000 ± 500 K

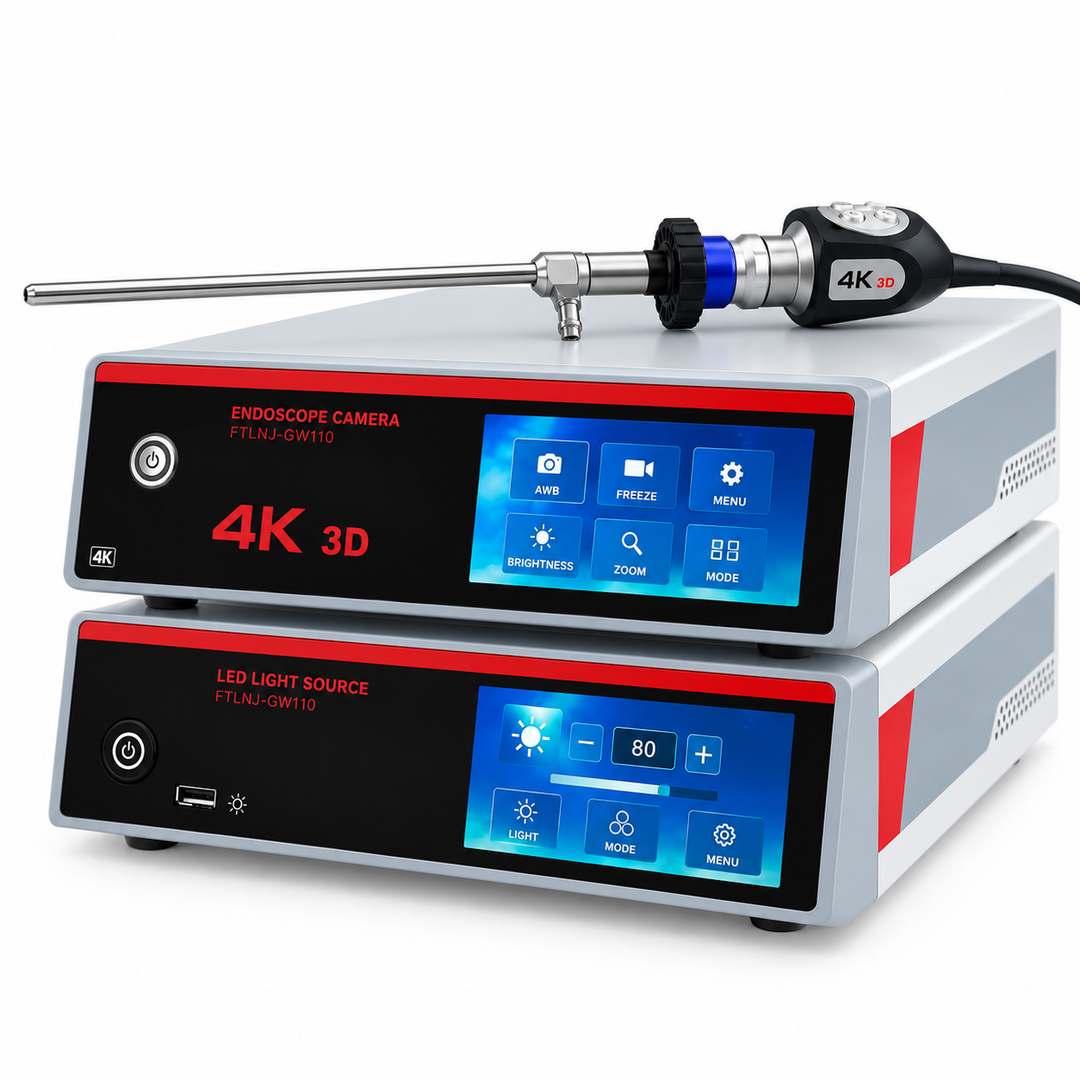

FTLNJ-GW110 3D
Original Specifications:
-
Image sensor: 1/1.8 CMOS
-
Language: English/Chinese
-
Effective pixels: P:1920(H) × 1080(P)
-
Scanning frequency: N:60Hz, P:60Hz
-
Scan mode: Progressive scan
-
Horizontal resolution: 1200 TVL
-
Output port: HDMI, SDI, BNC, VGA, remote control port
-
Digital zoom: 0–60×
-
DNR: 3D Denoise
-
SNR: ≥50 dB
-
Brightness: ODS adjustable
-
DSS: 30×
-
LED light source
-
Power: 100 watt
-
Color temperature: ≥6500 K
-
Light image temperature: ≤80°C

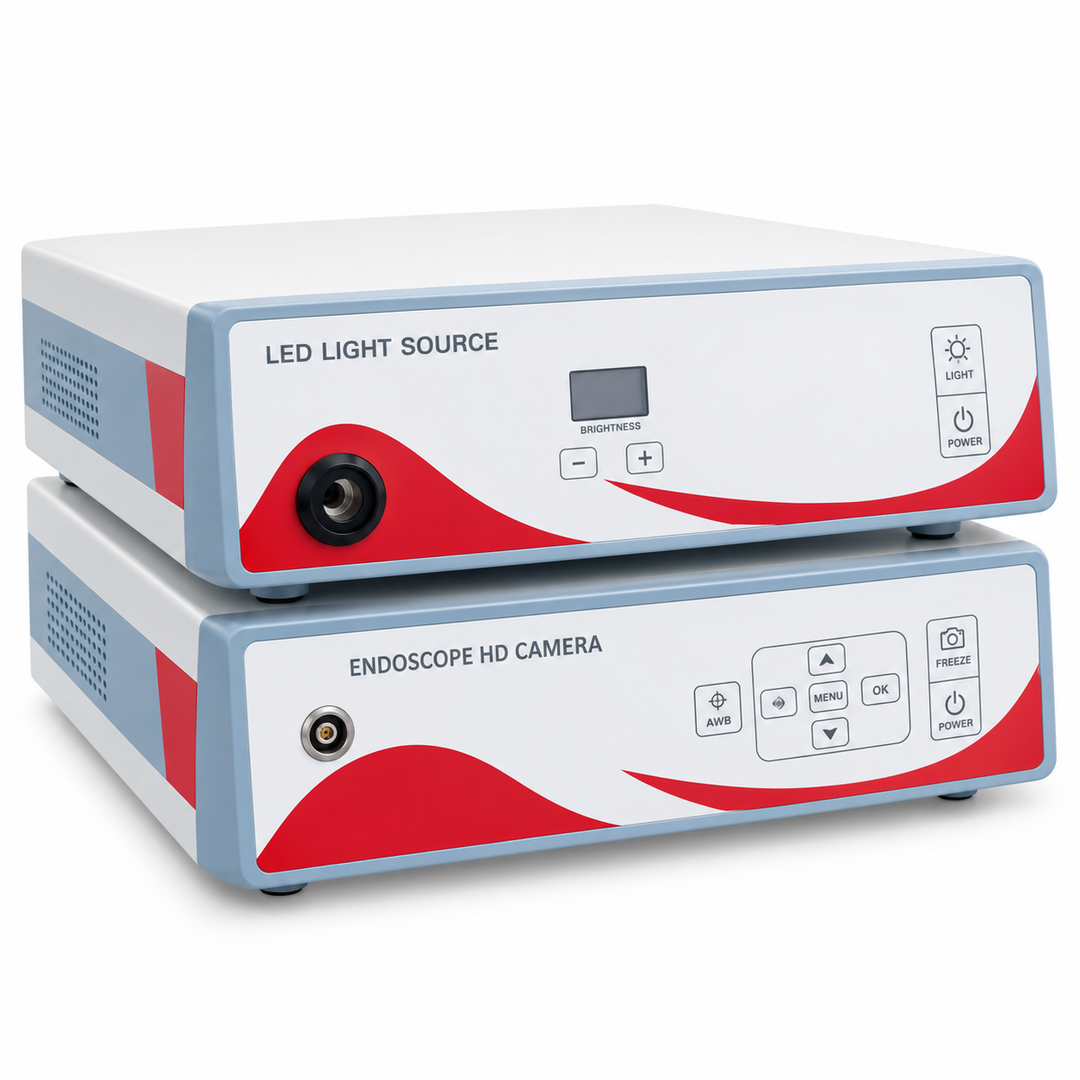

FTLNJ-GW80 HD
Features & Specifications:
-
Effective Pixels: 1920 × 1080
-
Progressive scanning
-
Full HD camera 1080P
-
Anti-jamming processing
-
Horizontal Resolution: 1080P (1000 lines)
-
Video Output: HDMI × 4, BNC × 1, VGA × 1
-
Manual / auto white balance
-
LED light source
-
Power: 1,200,000 Lux (60 watt)
-
Color temperature: ≥6500 K
-
Light image temperature: ≤80°C

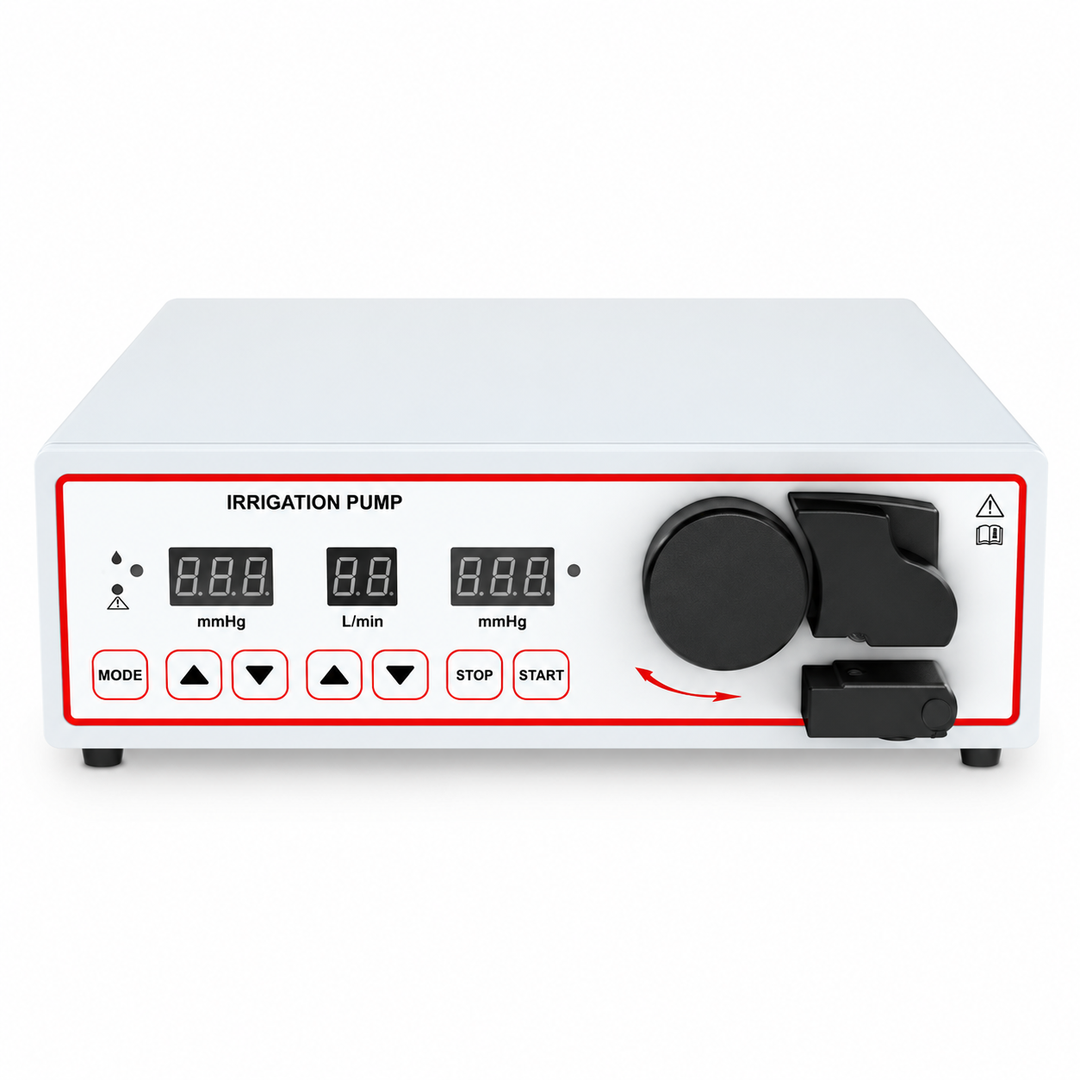

FTLNJ-GZP200 Irrigation Pump
Original Specifications:
-
Supply voltage: 110~230V
-
Range of press: 15~400mmHg
-
Power: 150VA
-
Range of flow: 0.1~1.0L/min
-
Noise: ≤70dB

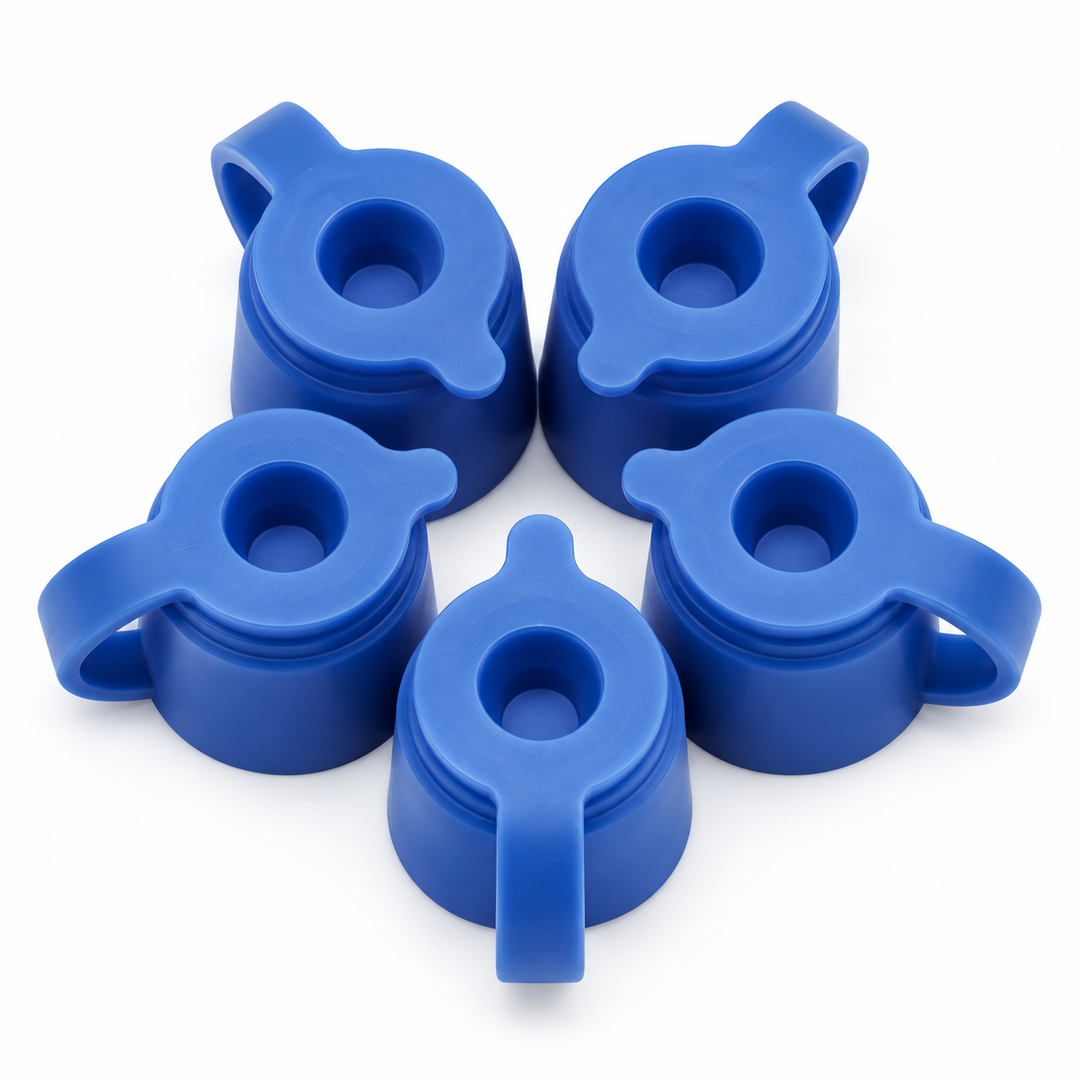

FTLNJ-HJF01 Biopsy Valve
Key Features:
-
Soft TPE material allows for easy and smooth passage of endoscopic accessories.
-
Suitable for Olympus / Pentax Endoscopes.
-
Customized color, individually bagged.
-
Effective cost, competitive price.
-
Simple to Use Specification.
FTLNJ-HJQ01 Biopsy Forcep
Key Features:
-
Arc curved tubular structure for easy insertion.
-
Split lip-free nails seat, effectively reduce the surgical trauma.
-
Manual rotary compression structure, with visual thickness instructions, intuitive operation of the clear.
-
Special screw structure, greatly reducing operating time.
-
Diameter: 1.8 mm / 2.3 mm.
-
Length: 1000 / 1200 / 1600 / 1800 / 2300 mm.
FTLNJ-HJQ01 Biopsy Forcep
- Single-use sterile design to minimize cross-contamination
- Sharp stainless steel jaws for clean and accurate tissue sampling
- Smooth insertion and withdrawal through the endoscope channel
- Flexible catheter for superior maneuverability
- Ergonomic handle for comfortable operation
