Technical Specifications Table
| Specification | Details |
|---|---|
| Model | FTL-E20 |
| Device Type | Portable Ultrasound Machine |
| Display | 12″ HD LCD, Resolution: 1024×768 |
| Transducer Elements | 80 elements |
| Operating System | Windows 7 PC Platform |
| Storage | 128GB SSD |
| Probe Compatibility | Dual socket; supports convex, transvaginal, linear, micro-convex probes |
| Imaging Modes | B/B-B, 4B/B-M, PW, CFM, PDI, B+PDI, B+CFM |
| Advanced Functions | IMT Automatic Measurement, Tissue Harmonic Imaging (THI) |
| Report Function | Editable electronic report page |
| Language Support | Chinese, English, Russian, Spanish, Portuguese, French, German |
| Interfaces | HDMI, VGA, 2×USB, LINE OUT, DICOM 3.0 |
| Printer Compatibility | Thermal, Inkjet, Laser Printers |
| Battery | Built-in lithium battery, Standby: ≥2 hours |
| Dimensions (with case) | Carton: 440×240×470mm; Aluminum case: 480×440×315mm |
| Weight | Approx. 6 kg |
| Accessories | Optional aluminum case, drawer case, laptop bag |
Detailed Description

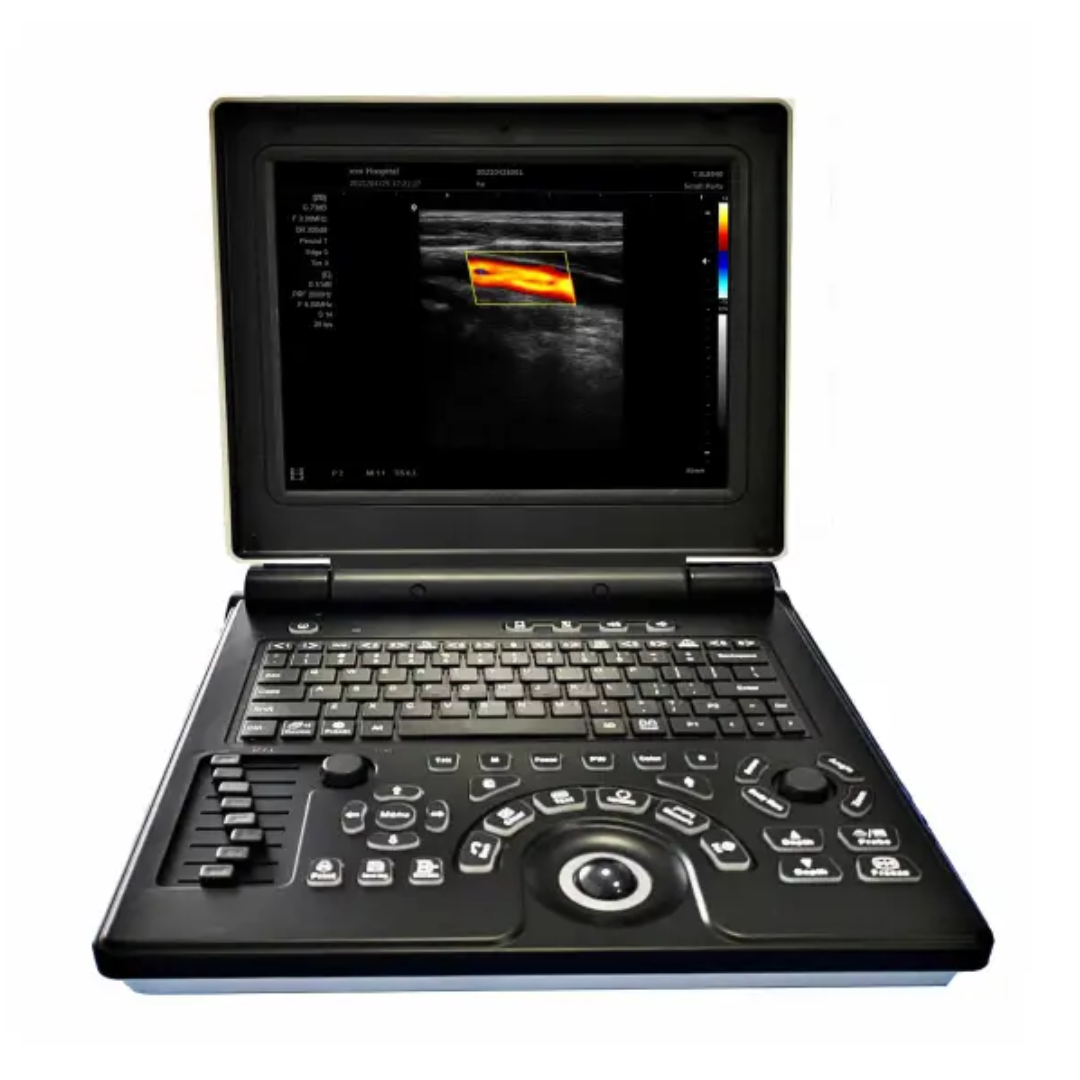

The FTL-E20 is a high-performance portable ultrasound machine designed for clinical professionals who need reliable, high-quality imaging in mobile or space-limited environments. Combining advanced ultrasonic technology with a compact, laptop-style form factor, this device delivers hospital-grade performance in a truly portable package.
As a versatile portable ultrasound machine, the FTL-E20 features a 12-inch HD display with a resolution of 1024×768, ensuring crisp, detailed images for accurate diagnosis across various specialties. The system uses an 80-element transducer array and supports multiple probe types—including 3.5MHz convex, 6.5MHz transvaginal, 7.5MHz linear, and 3.5MHz micro-convex—enabling comprehensive examinations of abdominal, gynecological, cardiovascular, musculoskeletal, and superficial structures.
With dual probe socket support, users can quickly switch between transducers without interrupting workflow. The device offers a wide range of imaging modes such as B-mode, B/B-B, 4B/B-M, pulsed wave Doppler (PW), color flow mapping (CFM), power Doppler (PDI), and combined B+CFM and B+PDI modes, providing flexibility for diverse diagnostic needs.
Applications
- Primary care & community clinics
- Emergency medicine & trauma units
- Mobile health services & telemedicine
- Obstetrics & gynecology
- Cardiology & vascular assessment
- Musculoskeletal & general surgery
- Veterinary and research use
