Product Detail

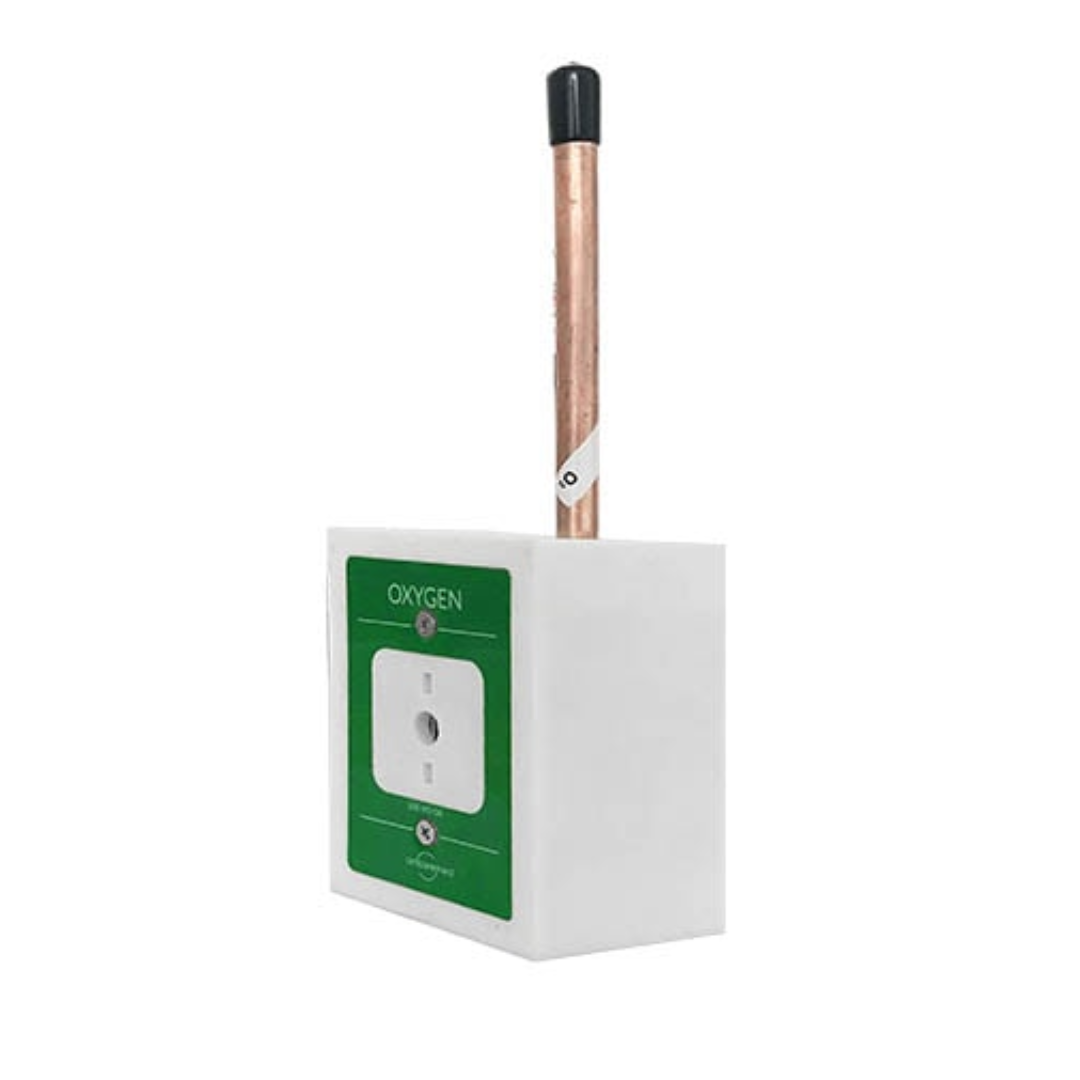

OHMEDA medical gas outlets include wall mount assembly type and rough-in assembly type. The wall mount type is using installed on the wall and the console type is using on the bed head unit. Provides NFPA full-color standard for easy gas identification. All outlets are 100% tested for flow, leaks, and cleaned to ensure quality. Accept only OHMEDA gas specific adapters. Produced according to the NFPA99 standard. Comply with the ISO9710 standard.
Specifications
- Gas Type: O2, AIR, VAC, N2O, N2, CO2 are available
- 360° swivel inlet pipe for easy installation
- NFPA /ISO full color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
- Insertion and extraction 10000 times without failure
- 100% tested for flow, leaks, and cleaned, can be used safely and securely
- The outlet with two stage one-way valve for easy maintenance without cutting gas supply
Technical Data
| Working pressure | 4-8bar |
| OD Size | 8mm, 10mm, 12mm K type copper pipeline |
| Weight | 0.84kg(metal cover), 0.6kg(plastic cover), 0.4kg(console type) |
| Structure | The outlet socket and the base adopt a combined structure, the same gas base can be used universally |
Model
| Ordering Information | ||
| Gas Service | OHMEDA Wall mounting | OHMEDA Bedhead (console) mounting |
| OXYGEN | OH-WAL-OXY | OH-CON-OXY |
| MEDICAL AIR | OH-WAL-MA | OH-CON-MA |
| MEDVAC | OH-WAL-VAC | OH-CON-VAC |
| N2O | OH-WAL-N2O | OH-CON-N2O |
| NITROGEN | OH-WAL-NIT | OH-CON-NIT |
| CARBON DIOXIDE | OH-WAL-CO2 | OH-CON-CO2 |
