Product Detail

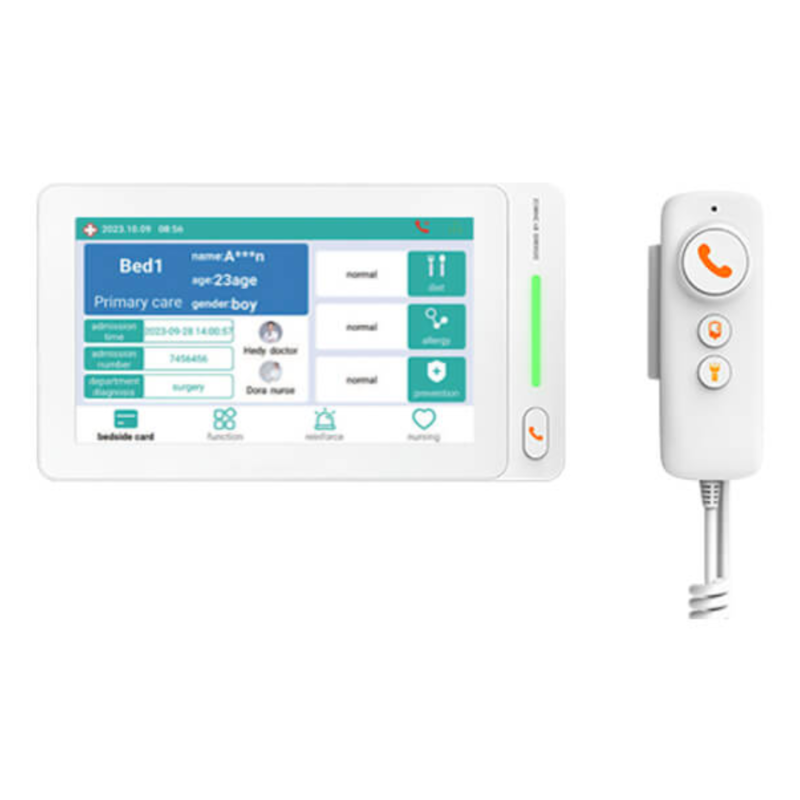

The host machine is operated by a multi-touch capacitive display. It can manage call requests from patient rooms, bathroom extensions, and other areas. Display real-time alerts and notifications. Provide nurses with a user-friendly interface to quickly respond to calls, ensuring seamless communication and efficient coordination between caregivers and patients throughout the facility.
Data information is transmitted based on TCP/IP network protocol. It can intercom with other management machines; it can intercom with bedside extensions and WC extensions; the intercom methods include hands-free and handle. The voice is clear and undistorted. It supports synchronization of HIS data and real-time update of bed information data.
Specifications
- 10-inch LCD screen
- Displays patient information list, call intercom, group broadcast and ward call hosting
- The phone uses the same operation as a regular phone
- Operating system: Android 10
- Resolution 1280*800px
- Main chip: Quad-core Cortex™ -A53 1.8GHz main frequency
- Memory: 1GB (standard) 2GB/4GB (optional)
- Storage: 8GB (standard) 8GB/16GB/32GB (optional)
- RGB 3-color lights can be matched in multiple colors
- Camera: 800W/1300W (optional)
- Physical buttons: answer button
- Video: H.264 codec
- Audio: G.711/G.722/G.729 codec
- Network: 10-100Mbps adaptive
- Communication protocol: TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
- Interface: Power interface*1, RJ45*1, Burning switch*1, Type-c*1, Serial port*1, 485 interface*1, Control interface*1, Audio output*1, Audio input*1, HDMI (optional)
- Touch : Multi-point capacitive touch screen
- Working voltage: DC12-24V, support national standard POE
- Standby power consumption: less than 5W
- Working power consumption: less than 7W
- Working temperature: -40℃~+65℃
- Installation method: Place on the desktop
