Description

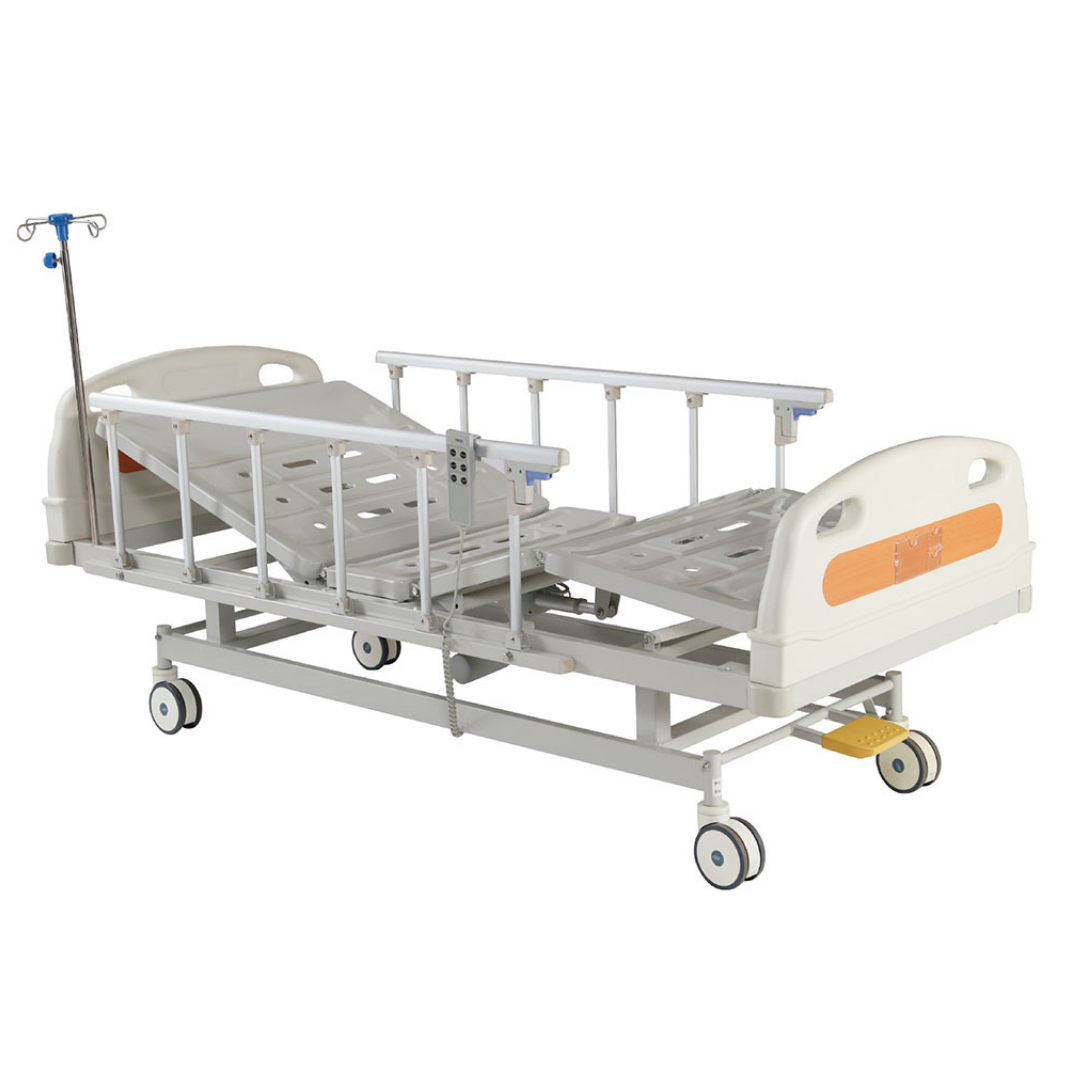

The HL-B115B TYPE II Electric Hospital Bed is designed to provide reliable patient positioning, safety, and convenience in ICU and hospital environments. Its electric backrest and leg section adjustments, combined with the automatic contour function, allow flexible positioning to support different patient care requirements.
The bed is equipped with removable ABS head and foot panels that provide convenient access during CPR procedures. Foldable aluminum alloy side rails can be securely locked in the raised position, helping provide additional patient protection while allowing easy access when needed.
Its bed board is formed through a one-time punching and shaping process and features an anti-slip system on both sides. Three high-performance Taiwan Ti-motion linear actuators provide waterproof and low-noise electric operation.
Four 125mm castors with a central braking system offer smooth movement and secure positioning. Their high abrasion resistance makes them suitable for demanding healthcare environments.
Features
- Electric backrest adjustment
- Electric leg section adjustment
- Automatic contour function
- Removable ABS head and foot panels
- CPR-ready bed design
- Foldable aluminum alloy side rails
- Side rails lock securely in raised position
- One-time punched and shaped bed board
- Anti-slip system on both sides
- Three Taiwan Ti-motion linear actuators
- Waterproof and low-noise actuator operation
- Four 125mm castors
- Central braking system
- High abrasion resistance
- Flexible movement and secure locking
Key Attributes
- Product Type: Electric Hospital Bed
- Model: HL-B115B TYPE II
- Category: ICU Beds
- Overall Dimension: L2150 × W950 × H500–720mm
- Backrest Adjustment: 0–70°
- Leg Adjustment: 0–40°
- Auto Contour: Yes
- Head & Foot Panels: Removable ABS
- Side Rails: Foldable Aluminum Alloy
- Linear Actuators: 3 Taiwan Ti-motion
- Castors: 4 × 125mm
- Braking System: Central Brake
Technical Specifications
| Specification | Details |
|---|---|
| Overall Dimension | L2150 × W950 × H500–720mm |
| Backrest Up / Down | 0–70° |
| Leg Up / Down | 0–40° |
| Auto Contour Function | Yes |
| Head & Foot Panels | Removable ABS |
| Side Rails | Foldable Aluminum Alloy |
| Bed Board | One-Time Punched & Shaped |
| Anti-Slip System | Both Sides |
| Linear Actuators | 3 Taiwan Ti-motion |
| Actuator Performance | Waterproof & Low Noise |
| Castors | 4 × 125mm |
| Braking System | Central Brake |
| Category | ICU Beds |
