Product Description

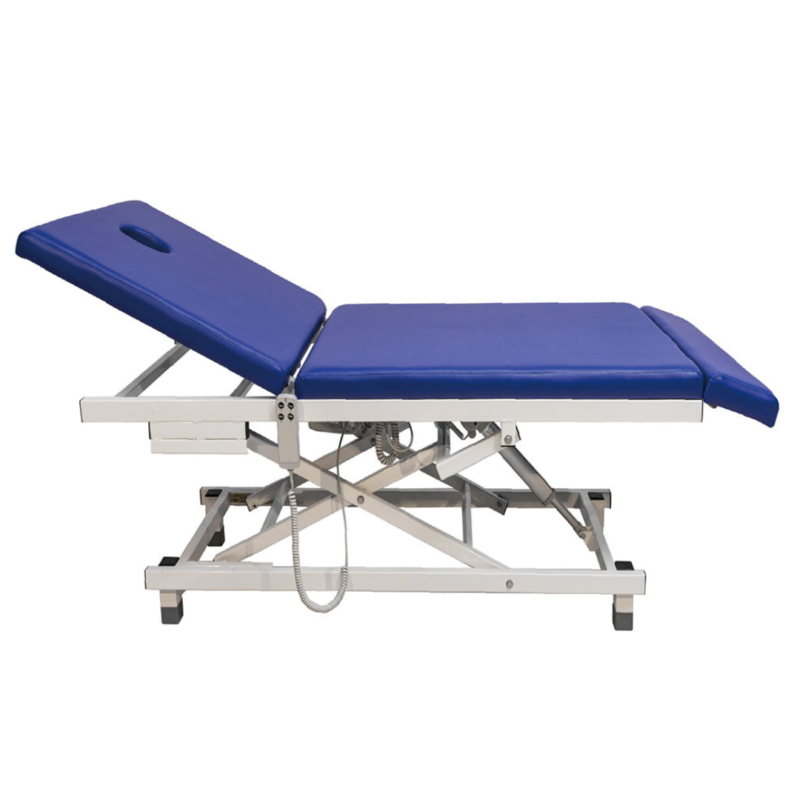

The HL-A162B Examination Couch provides a stable and adjustable platform for medical examinations and clinical procedures. Its heavy-duty steel construction offers dependable support, while the PVC-cushioned top provides a comfortable surface for patients during examination and treatment.
The couch features an electrically controlled Hi-Low adjustment system operated by a foot pedal. The height can be adjusted from 480mm to 920mm, allowing healthcare professionals to select a suitable working height for different clinical requirements.
The back section is adjustable from -33° to 90°, while the foot section can be adjusted from -24° to 41°. Both sections are operated using gas-spring mechanisms, providing flexible patient positioning during examinations and procedures.
For mobility, the couch is equipped with four retractable medical-grade castors. Four large pad leveling feet provide stable support when the couch is positioned for use. An adjustable armrest is also available as an optional feature.
With a 230kg loading capacity, the HL-A162B combines electric height adjustment, flexible positioning, patient comfort, and practical stability for everyday healthcare environments.
Key Features
- Heavy-duty steel construction
- PVC-cushioned top for patient comfort
- Electrically controlled Hi-Low adjustment
- Foot-pedal height control
- Height adjustment from 480–920mm
- Gas-spring-adjusted back section
- Back section adjustment from -33° to 90°
- Gas-spring-adjusted foot section
- Foot section adjustment from -24° to 41°
- Adjustable armrest available as an optional feature
- Four retractable medical-grade castors
- Four large pad leveling feet
- Maximum loading capacity of 230kg
- Suitable for medical examination and clinical procedures
Technical Specifications
| Specification | Details |
|---|---|
| Model | HL-A162B |
| Product Type | Examination Couch |
| Overall Size | L1980 × W700 × H480–920mm |
| Construction | Heavy-duty steel |
| Top Surface | PVC cushioned |
| Height Adjustment | 480–920mm |
| Height Adjustment System | Electric, foot pedal controlled |
| Back Section Adjustment | -33° to 90° |
| Back Adjustment System | Gas spring |
| Foot Section Adjustment | -24° to 41° |
| Foot Adjustment System | Gas spring |
| Armrest | Adjustable, optional |
| Castors | 4 retractable medical-grade castors |
| Leveling Feet | 4 large pad leveling feet |
| Loading Capacity | 230kg |
Positioning & Mobility
The HL-A162B allows healthcare professionals to adjust the couch height electrically using the foot-pedal control system. The gas-spring-assisted back and foot sections provide additional flexibility for patient positioning during different examinations and procedures.
The retractable medical-grade castors support convenient movement when required, while the four large pad leveling feet provide stable support when the couch is in its working position.
Ideal For
The HL-A162B Examination Couch is suitable for:
- Hospitals
- Medical clinics
- Examination rooms
- Outpatient departments
- Patient assessment areas
- General medical examinations
- Routine clinical procedures
- Patient positioning and treatment
