Product Detail

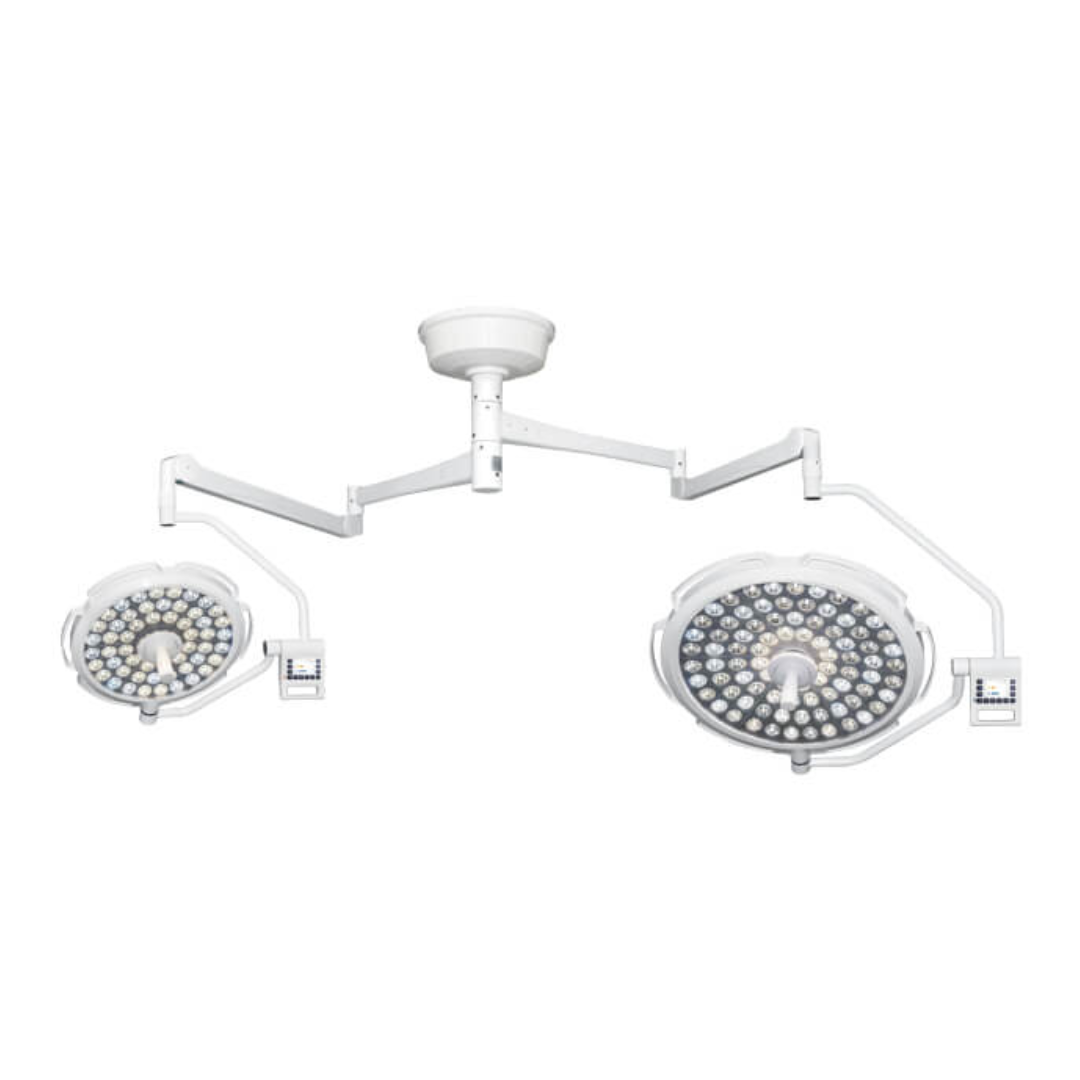

Each light head of the g-series dual-head surgical light combines aerospace-grade aluminum with engineering plastics for durability, hygiene, and easy cleaning. The ultra-slim dome design incorporates a 360° side handle for convenient maneuvering and a removable sterilizer handle made of high-temperature-resistant PPSU material. Advanced constant current drive technology ensures stable performance and extends the product’s lifespan, while innovative lens designs enhance optical efficiency and minimize glare.
Powered by imported Osram LEDs with a lifespan exceeding 50,000 hours, the lights deliver bright, uniform, and color-accurate illumination with a CRI of at least 91. Surgeons can adjust brightness and color temperature to suit different procedures, while the intuitive keypad control panel allows smooth 1–100% brightness adjustment, and precise control without moving the light head. These features combine to ensure consistent, high-quality lighting for even the most complex surgeries.
Features
- Outer cover: engineering plastic and inlaid aerospace-grade aluminum
- Smooth surface, built-in screws, convenient cleaning, and disinfection
- 360°side handle on lamp head circle for convenient usage
- Constant current drive, stable use, and increasing usage life time
- Ultra slim streamline design, 700 dome thickness 100mm
- Removable sterilizer handle on the centre of the dome PPSU material, high temperature resistance 135°C
- PWM technology controls the constant current chip to adjust the brightness continuously from 1%-100% step by step
- 3 lighting modes: standard-endoscope-low light
- Optional or Customization: 3arms built in camera system or 4arms external camera system
Technical Data
| Picture |  |
 |
 |
| Model | AM-G700/500LED | AM-G700/700 LED | AM-G500/500 LED |
| Illuminance(Lux) | 40000-160000/40000-120000 | 40000-160000/40000-160000 | 40000-120000/40000-120000 |
| Colour temperature | 4000-5000 | 4000-5000 | 4000-5000 |
| Colour reduction index(Ra) | ≥95 | ≥95 | ≥95 |
| Radiation Energy | 578w/m2/509w/m2 | 578w/m2/578w/m2 | 509w/m2/509w/m2 |
| Field Diameter(mm) | 180-280 | 180-280 | 180-280 |
| Service life of illuminant | 50,000h | 50,000h | 50,000h |
| Power supply | AC110-240V | AC110-240V | AC110-240V |
| Voltage | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Instal Height(2.5m can be customized) | 2.75-3m | 2.75-3m | 2.75-3m |
| Lamp Power | 100VA/98VA | 100VA/100VA | 98VA/98VA |
| LED Quantity | 138(84+54) | 168(84+84) | 108(54+54) |
| Ilumination Depth20% Ec(mm) | 1069/1340 | 1069/1069 | 1340/1340 |
| Light Head Thickness(mm) ±5 | 100/89 | 100/100 | 89/89 |
