The FL-401 Urine Analyzer is a high-precision handheld instrument developed from research based on modern optics, electronics, computer science, and other advanced technologies for a clinical inspection of urine. The FL-401 Urine Analyzer analyzes urine samples through the use of the compatible urine test strips. The test strips produce a chemical reaction that the machine reads and measures. The FL-401 is designed based on modern photoelectric and microprocessor technology for clinical inspection of urine samples.

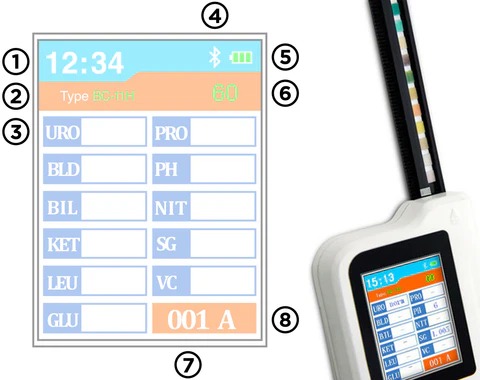

The user-friendly onscreen menu contains options for managing patient profiles and viewing test details. The FL-401 integrates with the smartphone app to wirelessly transfer measurement data to other devices via Bluetooth. Up to 500 test results can be stored and managed on the device.
After inserting a test strip into the machine’s test strip tray, pressing the “OK” button while viewing the main menu starts the test. A 60-second timer then begins and counts down while completing the test. After finishing the analysis test, the analyzer displays the measurement results on the color LCD.
Urine strip compatibility for the FL401 includes 8 item8, 10 item, and 11 item test paper. Additional functions include auto-character input, audio prompts, RGB tricolor testing, and automatic storage of test data recordings. The built-in lithium ion is rechargeable via USB or the included power adapter.
Included is the FL-401 device, one bottle of 100 urinalysis test strips, owner’s manual booklet, USB cable, and charging power adapter.
Main Features
- Portable, pocket sized
- High-luminance, white LED
- Long life and stability
- Displays contents on the 2.4” LCD
- Optional languages: Chinese and English
- User-friendly interface
- Optional units: international unit, conventional unit, and symbol system
- Monitoring of the complete test process
- Auto-character input and audible prompts
- Compatible with 8-, 10-, and 11- parameter test strips
- Standard micro USB interface/Bluetooth interface
What’s Included in Package
- FL-401 Precision Urine Analyzer with internal lithium battery
- Urinalysis Test Strips
- Owner’s Manual Booklet
- USB Cable
- Charging Power Adaptor
